YF-S201 Flow Meter/4 points G1/2 Interface Hall Flowmeter Water Flow Sensor
sku: 32978189042
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$11.75
Shipping from: China
Technical Details
| Black GND: | Negative pole |
| Brand Name: | ZEAST |
| DIY Supplies: | Plumbing |
| Load Capacity: | 10mA |
| Maximum Operating Current: | 15mA(DC5V) |
| Measurement Range: | 2-100L/min |
| Model Number: | YF-S201 Flow Meter |
| Operating temperature range: | 80C |
| Pulse characteristics: | f=1.0*Q (F: frequency,Q:L/min) |
| Rated operating voltage: | DC4.5 5-24V |
| Red IN: | Positive |

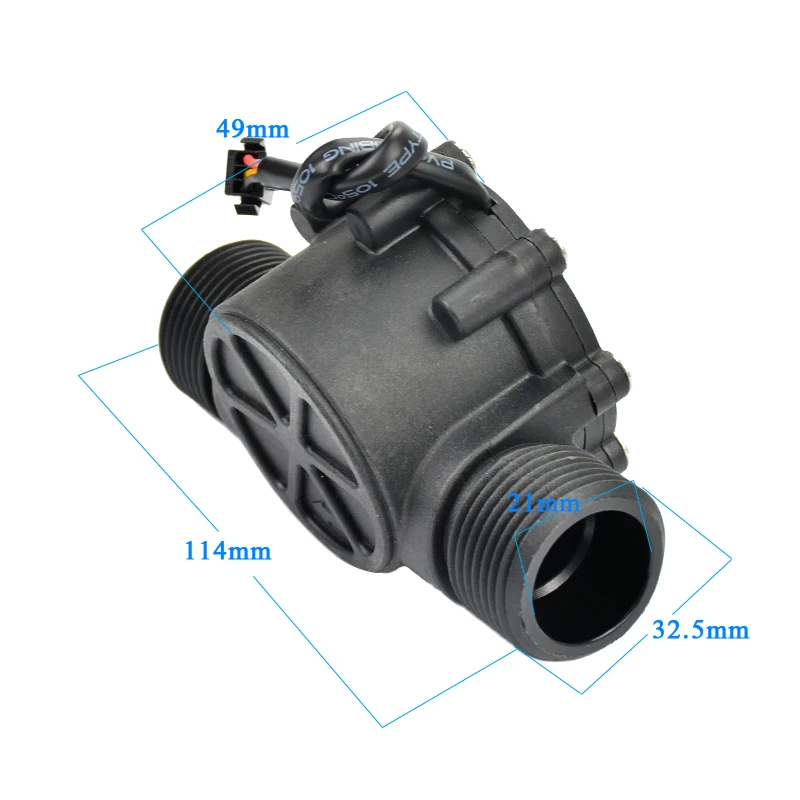

| Size: | 114*60*48mm |
| Type: | Turbine flowmeter |
| Voltage: | DC3.5-24V |
| Water Pressure: | 1.75Mpa |
| Yellow OUT: | Signal output line |
