XH-W1209 DC 12V Thermostat Temperature Control Switch Thermometer Controller With Digital LED Display With Case
Description
Features: 1.100% complete machine chip, wave soldering, stable performance, good consistency 2. Embedded central processor chip (MCU), more intelligent, lower power consumption 3. Power-off settings automatically memory (MCU built-in EEPROM storage unit) 4. The control accuracy of 0.1 degrees Celsius 5. Hysteresis 0.1 from the set, you can control the decimal (0.1-15.0) Technical Parameters: Temperature control range: -50 ~ 110 ° Resolution: -9.9 ~ 99.9 when the other temperature of 0.1 ° 1 ° Temperature measurement accuracy: 0.1 ° Control accuracy: 0.1 ° Hysteresis accuracy: 0.1 ° Refresh rate: 0.5 S Input power: DC 5V, DC 12V, DC 24V Measurement input: NTC (10K 0.5%) Waterproof sensor Output: 1 relay output, capacity = 20A 125VAC, 20A 14VDC Environmental requirements: -10 ~ 60 ° Humidity 20% -85% Specifications Size: 48.5 * 40mm Total power consumption: Quiescent current: ≤ 10MA Pull-in current: ≤ 65MA Usage: - Press the + button to set the desired temperature (press and hold + - to move up and down quickly) Set the temperature of the display. - Press SET to confirm the completion of return, then the controller automatically by setting the relay off! The Thermostat output for the 20A relay to meet a variety of high-power load, connect the control circuit, you can supply power to the thermostat, this display shows the ambient temperature - Indicator: Flashing indicates the cooling or heating start delay. If the indicator is on, it indicates that the relay is closed - Digital control: display LL sensor is open, please follow the instructions to connect the sensor; display HH is outside the measuring range will force the relay to disconnect the thermostat; display high temperature alarm. Package Included: 1 x XH-W1209 Temperature Controller
Price history chart & currency exchange rate
Customers also viewed

$23.16
Полосатые прямые брюки, женская осенняя одежда, хлопковые Молодежные хлопковые брюки с широкими штанинами для девочек 2000s Y2K, трендовые длинные брюки 2024
aliexpress.com
$4.31
2pcs Nicotinamide Hand Cream Anti-Aging Natural Hand Skin Cream Moisturzing Whitening Smoothing Cream Dry Skin Care Cuticle Oil
aliexpress.com
$75.68
304 stainless steel 5L horizontal gasoline and diesel tank container built-in oil pipe car motorcycle truck oil storage tank
aliexpress.com
$37.53
Sanrio Cinnamoroll love cat's eye stone bracelet ins niche design sense bracelet girlfriends cartoon creative jewelry wholesale
aliexpress.com
$25.91
For HM215WU1 HR215WU1 HT215F01 MV215FHM LCD Controller Board HDMI-Compatible 30-Pin LVDS Kit DIY 1920*1080 VGA DVI Display 21.5"
aliexpress.com
$325.61

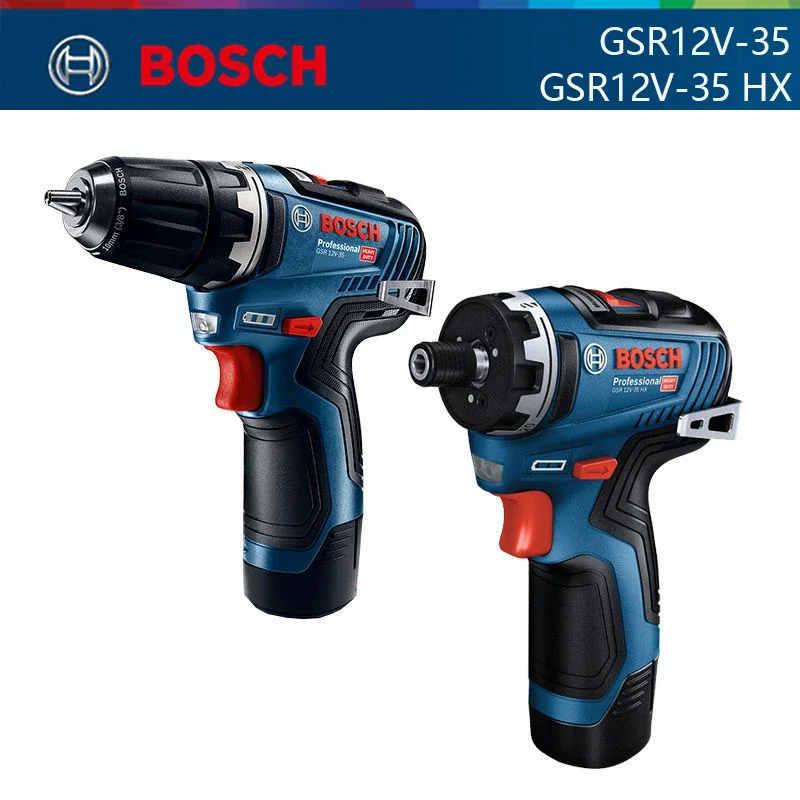

Bosch GSR 12V-35/35HX Electric Drill Cordless Screwdriver 30Nm Brushless Impact Driller Driver Rotary Power Tool with 2 Battery
