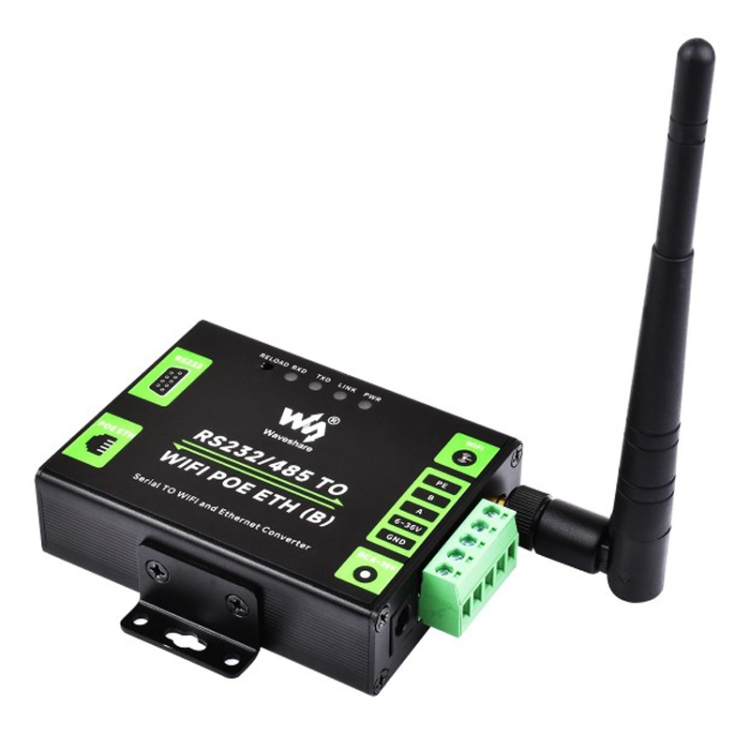

Waveshare Industrial Grade Serial Server RS232/485 to WiFi / Ethernet RJ45 Network Port with POE Support

Features:1. RS232/485 device data collector/IoT gateway specially designed for industrial environments.2. Integrate multiple functions into one, including serial port server, Modbus gateway, MQTT gateway, serial port to HTTPD client, etc.3. The module has RS232, RS485, WIFI, and Ethernet interfaces, which can realize serial to WIFI, serial to WIFI and other functions; Ethernet, Ethernet to WIFI, etc.4. Multiple onboard power interfaces support a wide range of 6~36V power supply, and can be equipped with PoE function.5. Industrial-grade metal shell design supports wall-mounted and rail-mounted installation. It is small in size and easy to install.6. Suitable for data collection, IoT gateway, security IoT, smart instrument monitoring and other applications.Product parameters:1. Frequency band: 2.412-2.484 GHz2. Wireless network: Station / AP / AP+Station mode3. Security mechanism: WPA-PSK / WPA2-PSK4. Encryption type: TKIP/AES5. Transmission power:802.11b: +19dBm (max @11Mbps)802.11g: +18dBm (max @54Mbps)802.11n: +17dBm (maximum @HT20, MCS7); +17dBm (maximum @HT40, MCS7)6. Receiving sensitivity:802.11b: -89dBm (@11Mbps)802.11g: -81dBm (@54Mbps)802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)7. Baud rate: 300-460800 bps8. Check digit: none, odd, even, mark, space9. Data bits: 5-9 bits10. Flow control: RTS/CTS N/A11. Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT12. Configuration: host, browser, serial AT command13. Communication method: TCP/IP direct communication, VCOM14. Working mode: transparent transmission, serial port command, HTTPD Client, Modbus TCP to Modbus RTU15. Working temperature: minus 40 degrees Celsius - 85 degrees Celsius16. Humidity range: 5%-95% relative humidity17. Product size: 85 x 84 x 24mm18. Weight: 157g, 169gPacking list:RJ45 network port:-RS232/485 to WIFI Ethernet (B) x1-2.4G WiFi antenna x1-Rail mounting buckle x1-Screwdriver x1-Screw pack x1RJ45 network port supporting POE:-RS232/485 to WIFI POE ETH (B) x1-2.4G WiFi antenna x1-Rail mounting buckle x1-Screwdriver x1-Screw pack x1
