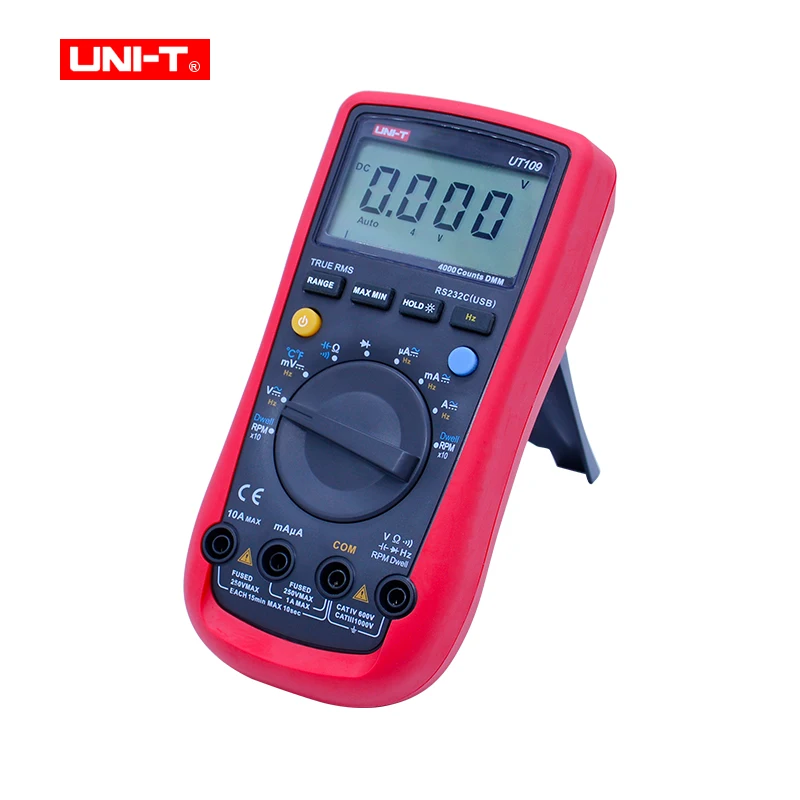

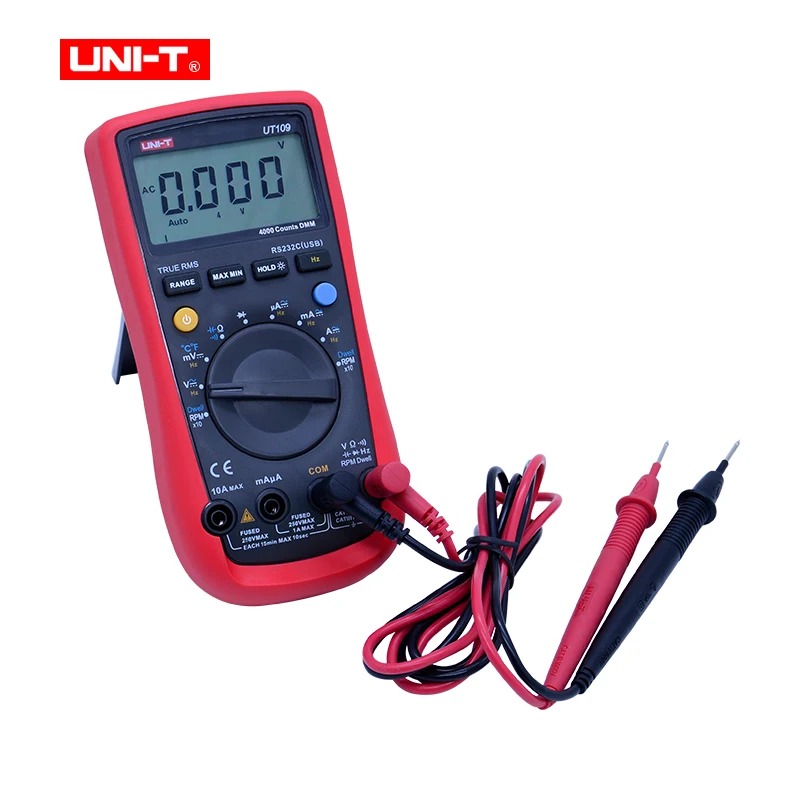

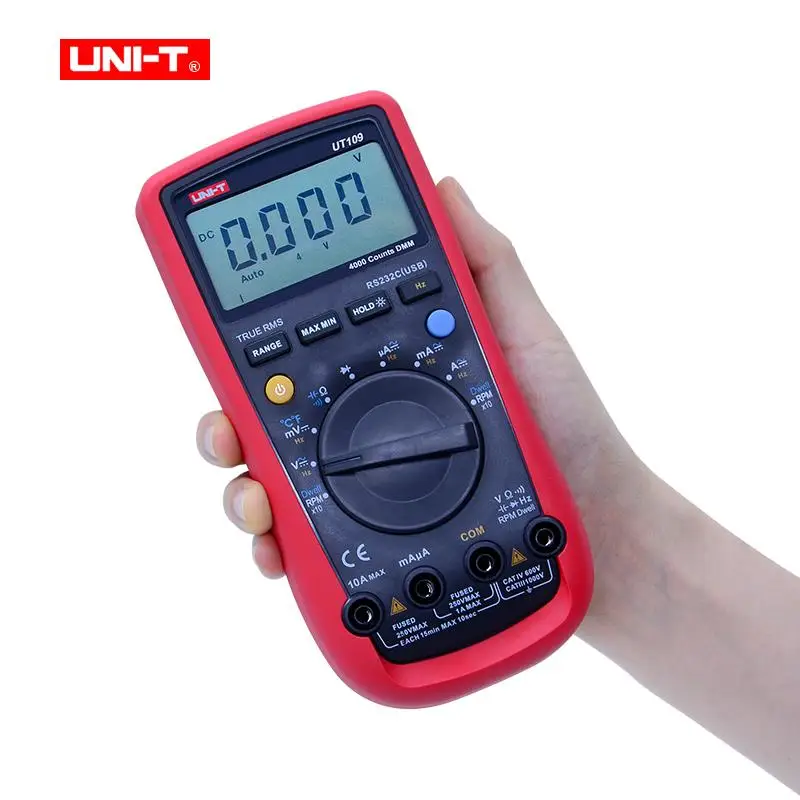

UNI-T UT109 Automotive Multimeter;AC DC volt Current Ohm meter;Capacitance Temperature test;Engine speed Measure RS232 interface
Technical Details
| AC Current: | 4V/40V/400V/1000V |
| AC Voltage: | 4V/40V/400V/1000V |
| Auto Power Off: | Yes |
| Auto Range: | Yes |
| Brand Name: | UNI-T |
| Continuity Buzzer: | Yes |
| Data Hold: | Yes |
| DC Current: | 400μA/4000μA/40mA/400mA/4A/10A |
| DC Voltage: | 40mV/400mV/4V/40V/400V/1000V |
| Dimensions: | 180mm X 87mm X 47mm |
| Diode: | Yes |
| Display Count: | 4000 |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| Dwell: | 4CYL/6CYL/8CYL |
| Frequency Hz: | 10Hz-1MHz |
| LCD Backlight: | Yes |
| Low battery indication: | Yes |
| MAX/MIN: | Yes |
| Measuring Capacitance Range: | 10nF/100nF/1000nF/10uF/100uF |
| Measuring Resistance Range: | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
| Model Number: | UT109 |
| Operating Mode: | Auto Range |
| Operating Temperature: | 0 - 50 ℃ |
| RS: | Yes |
| Tach: | 4CYL/6CYL/8CYL |
| Temperature: | -40°C-537°C/-40°F-998°F |
| USB Interface: | Yes |
