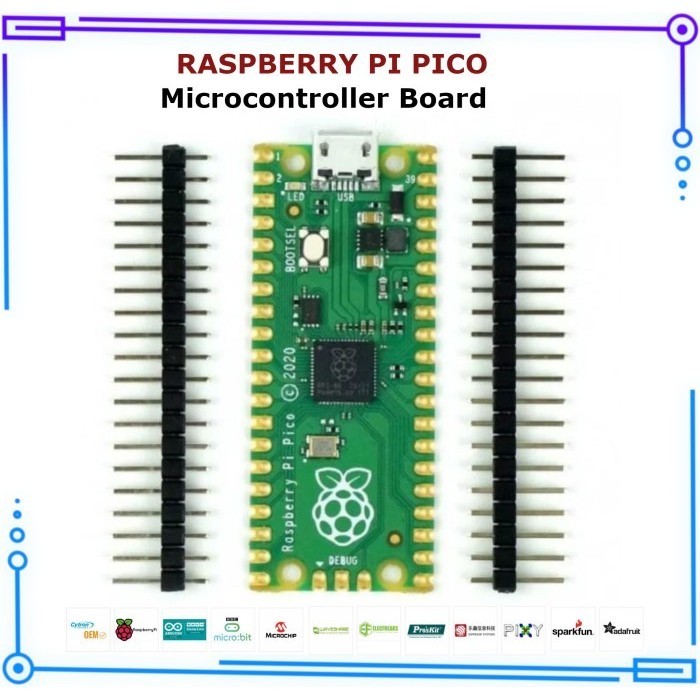

SYS99 Raspberry Pi Pico Microcontroller Board - Polos

DualCore, 32bit ARM Cortex M0+ Processor
Clocked at 48MHz (default), configurable max to 133MHz.
Ready with USB Micro B receptor for Power and Data
Support USB 1.1 Host and Device
Connected to the USB port and it will appear as USB Mass Storage by default, no driver is needed
Supports MicroPython, C and C++ Programming Language
Peripheral rich
Extended out 26 multifunction 3.3V General Purpose IO (GPIO)
23 GPIO are digitalonly
3 x 12bit ADC capable of 500Ksps, Analog to Digital Converter
2 x UART (Universal Asynchronous ReceiverTransmitter)
2 x SPI (Serial Peripheral Interface)
2 x I2C (Inter IC)
16 x PWM (Pulse Width Modulation)
1 x Timer with 4 alarms
1 x Real Time Counter
2 x Programmable IO (PIO) that can emulate highspeed interfaces such as SD card or VGA
Builtin 12bit ADC temperature sensor
PreSoldered ( Header PIN Sudah Tersolder) FREE USB CABLE
Polos ( Header PIN Belum Tersolder) FREE HEADER PIN
Tutorial rojects.raspberrypi.orgenrojectsgettingstartedwiththepico
