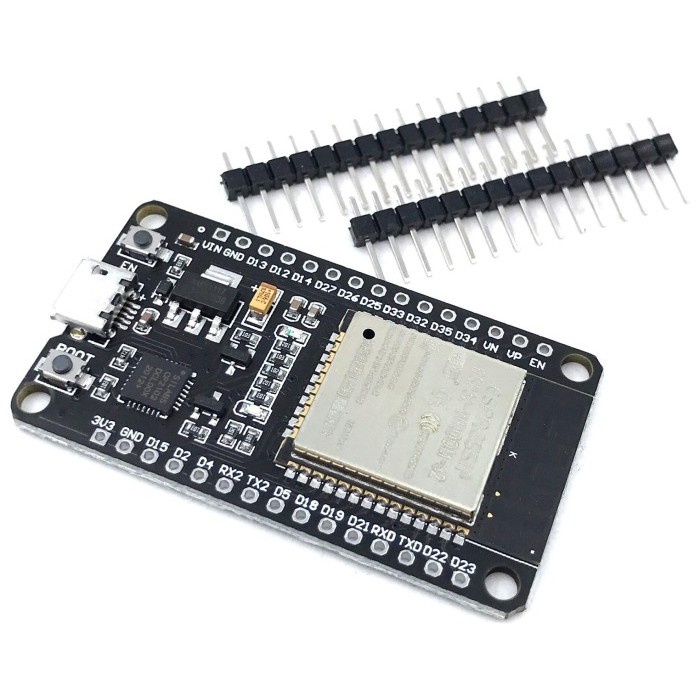

SMEStore ESP 32 WROOM 32 ESP32 WiFi BLE Development Board dengan Arduino IDE

Selamat datang di Sami Mampir Elektronik
ESP32 WROOM32 development board memiliki integrated antenna, power amplifier, low-noise amplifiers, filters, dan modul power management. Modul ESP32 ini merupakan mikrokontroler 32-bit dengan fasilitas WiFi, Bluetooth, dan BLE menjadikannya modul yang sangat lengkap untuk aplikasi Internet of Things.
Spesifikasi
- Program memory 448 kB
- CAN, I2C, I2S, SDIO, SPI, UART
- ADC 12-bit
- Maximum clock 120 MHz
- Tegangan suplai 2.3 V hingga 3.6 V
- Wi-Fi: 802.11 bgnei (802.11n @ 2.4 GHz up to 150 Mbits)
- Bluetooth: v4.2 BREDR and Bluetooth Low Energy (BLE)
- 25x digital GPIO
- 1 x UART, including hardware flow control RTS CTS
- 1 x SPI
- 1 x I2C
- 15 x ADC input channels
- 2 x DAC
- PWMtimer inputoutput available on every GPIO pin
- OpenOCD debug interface with 32 kB TRAX buffer
- SDIO masterslave 50 MHz
- Supports external SPI flash up to 16 MB
- SD-card interface support
- Tiga mode operasi AP, STA, dan AP+STA
