RAK2245 Pi HAT LoRaWAN Concentrator Module Gateway OS WisLink LoRa Board with Raspberry Pi Based on SX1301 GPS Antenna Q193
sku: 32991451455
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$19.99
Shipping from: China
Technical Details

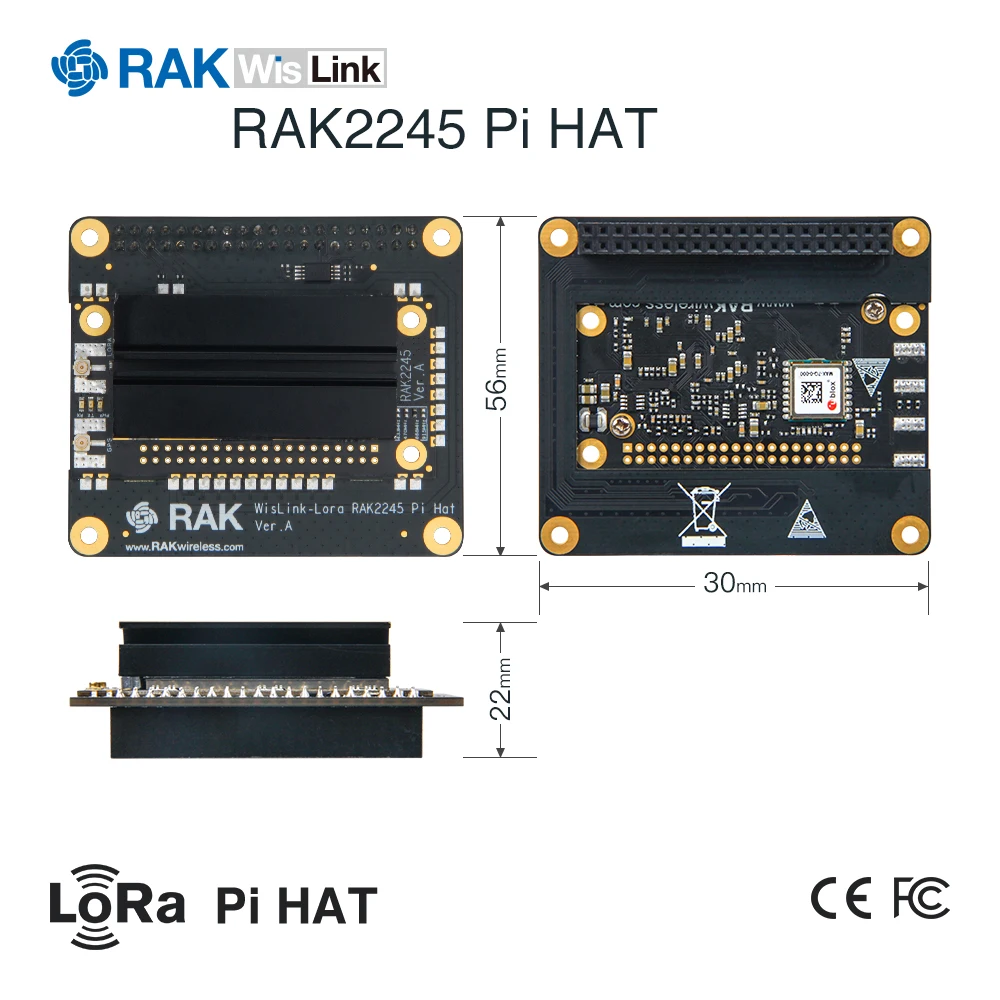

| Dimension L x W x H: | 56.00 x 65.00 x 22.00 mm |
| Direction: | None |

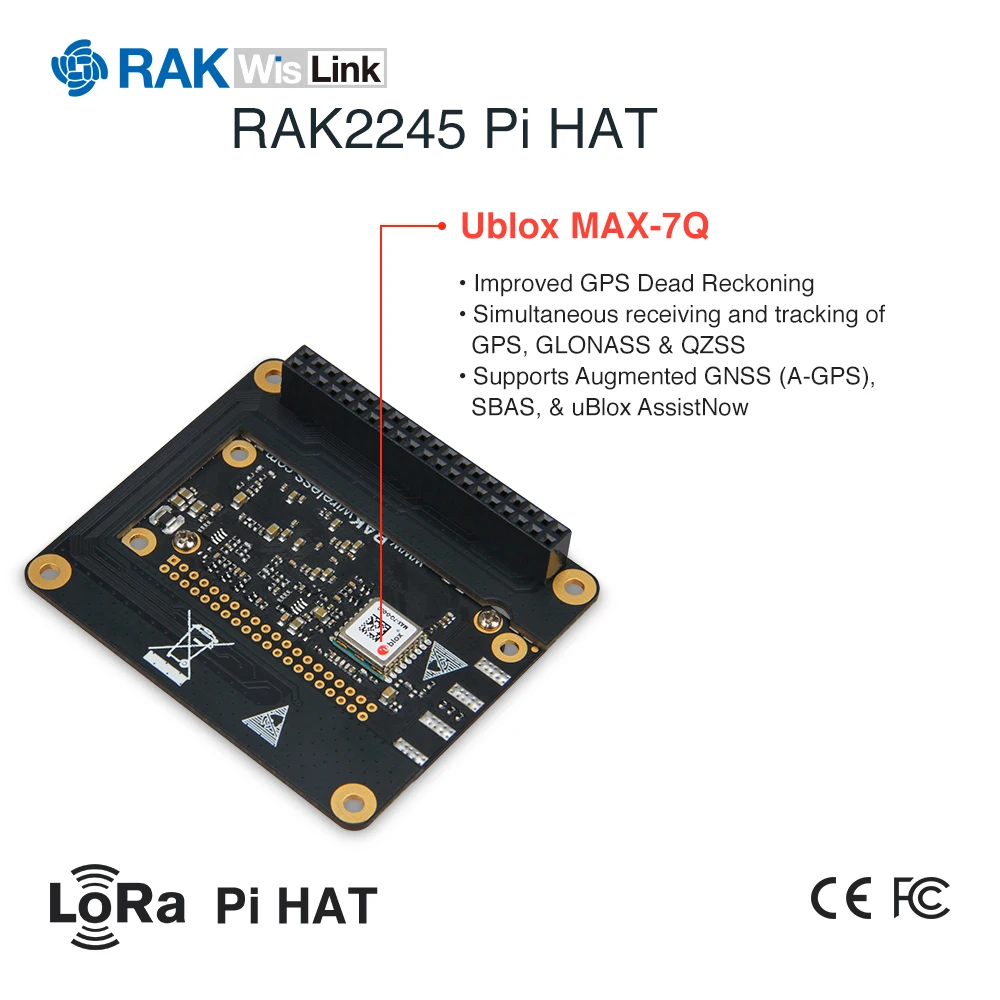

| Gps Module: | Ublox MAX-7Q |
| Interfaces: | SPI, UART, I2C, GPIOs |
| LoRa Module: | Semtech SX1301 & Semtech SX125X |
| LoRaWAN Version: | LoRaWAN V1.0.2 |
| Model Number: | RAK2245 Pi HAT |
| Node Numbers: | 500 nodes/km2 |
| Range: | Urban: 2 ~ 4km |
| RX Sensitivity: | -139dBm(Min)@SF12, BW 125KHz |
| Security Mode: | Fail Safe |
| TX Power: | 27dBm (Max), typical 25 dBm |
