PROMO NANOPI R5S ROCKCHIP RK3568B2 SINGLE BOARD COMPUTER

PRODUK PRE-ORDER
- Tidak bisa cancel setelah order dikonfirmasi.
- Estimasi waktu pre-order sekitar 15-45 hari, tergantung dari lamanya pengiriman.
- Kami bisa bantu klaim garansi ke distributor, namun Invok Lab tidak dapat menanggung biaya kirimnya.
- Produk NANOPI dijamin ORIGINAL karena kami ambil barang langsung dari official distributor luar maupun dalam negeri.

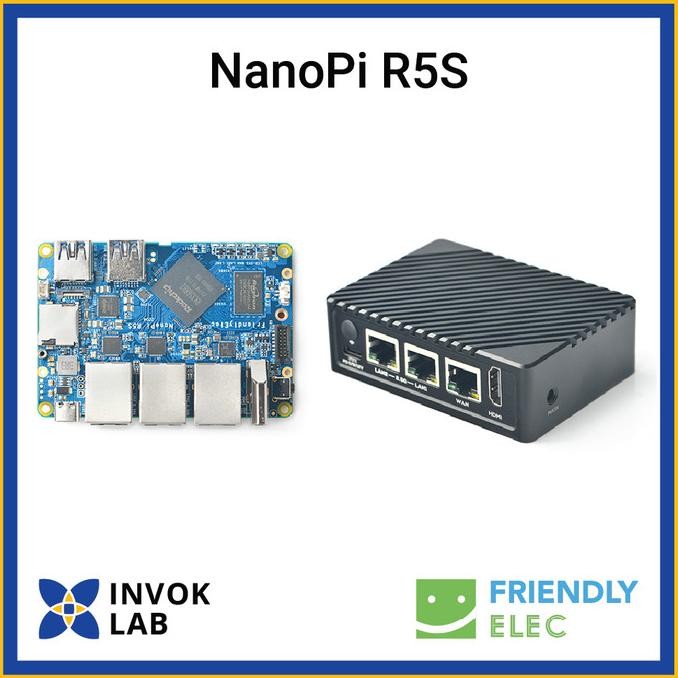

NanoPi R5S Rockchip RK3568B2 Single Board Computer
Single board computer dengan CPU Rockchip RK3568B2 (ARM Cortex A55). Terdapat 3 pilihan bundle, silahkan pilih sesuai kebutuhan.
Specifications:
SoC: Rockchip RK3568B2
CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz
GPU: Mali-G52 1-Core-2EE,supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
NPU: Support 0.8T
RAM: 2GB LPDDR4X
Flash: 8GB eMMC
Ethernet: one Native Gigabit Ethernet, and two PCIe 2.5Gbps Ethernet
USB: two USB 3.0 Type-A ports
HDMI:
support HDMI1.4 and HDMI2.0 operation
support up to 10 bits Deep Color modes
support 3-D video formats
PCIe: M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etc
microSD: support UHS-I
GPIO:
12-pin 0.5mm FPC connector
up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs
SD/MMC/SDIO/I2S:
2x8-pin 1.27mm connector
Compatible with SDIO3.0 protocol
Compatible with SD3.0, MMC ver4.51
4bits data bus widths
1x I2S with 2x SDO and 3x SDI
LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)
others:
MASK button for eMMC update
one 5V Fan connector
Power supply: USB-C, support PD, 5V/9V/12V input
PCB: 8 Layer, 62x90x1.6mm
Ambient Operating Temperature: 0℃ to 70℃
Sebelum di kirim barang sudah di pastikan bagus dan tanpa kerusakan apapun.
