PROMO KUNBUS REVOLUTION PI REVPI GATE PROFINET IRT - DEVICE EXPANSION MODULE FOR PROFINET NETWORKS

PRODUK PRE-ORDER
- Tidak bisa cancel setelah order dikonfirmasi.
- Estimasi waktu pre-order sekitar 15-45 hari, tergantung dari lamanya pengiriman.
- Produk KUNBUS dijamin ORIGINAL karena kami ambil barang langsung dari official distributor luar maupun dalam negeri.

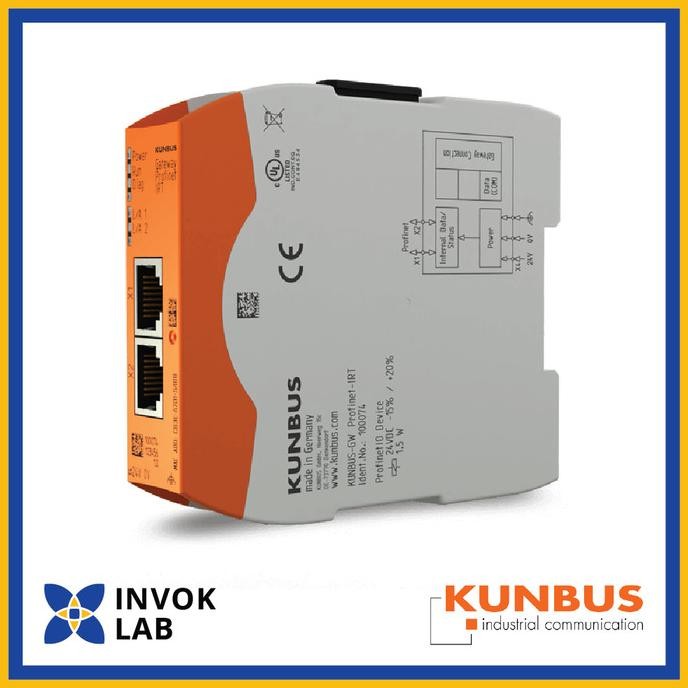

KUNBUS Revolution Pi RevPi Gate PROFINET IRT - Device Expansion module for PROFINET networks
The RevPi Gate PROFINET IRT integrates the Revolution Pi system into an existing PROFINET network. The PROFINET gateway is connected to the respective base module via the overhead system connector.
Please note the following instructions:
This module is the Device (Slave) variant and not a Controller (Master) module! If you are not familiar with industrial network protocols, please check with us beforehand to determine if such a module is suitable for your purposes.
The gateway is incompatible with RevPi Connect 4, RevPi Connect SE, and RevPi Core SE.
Please note that for each RevPi Gate, you will need a jumper to connect it to your Revolution Pi system, which is not included in the delivery. Additionally, please order the PiBridge plug separately.
More Information
Product type Gateway
Protocol PROFINET IRT
Version Device (Slave)
compatible with RevPi Connect S, RevPi Connect+, RevPi Core S, RevPi Core 3+, RevPi Core 3
Bus connector 2 x RJ45
Max. baud rate 100 Mbit/s
I/O-Data 512 Bytes IN/OUT
Power supply 24 V DC
IP code IP20
EAN 4260498390045
WEEE-Reg.-No.: DE 34461592
Sebelum di kirim barang sudah di pastikan bagus dan tanpa kerusakan apapun.
