PROMO KUNBUS REVOLUTION PI REVPI GATE PROFIBUS - SLAVE EXPANSION MODULE FOR PROFIBUS NETWORKS

PRODUK PRE-ORDER
- Tidak bisa cancel setelah order dikonfirmasi.
- Estimasi waktu pre-order sekitar 15-45 hari, tergantung dari lamanya pengiriman.
- Produk KUNBUS dijamin ORIGINAL karena kami ambil barang langsung dari official distributor luar maupun dalam negeri.

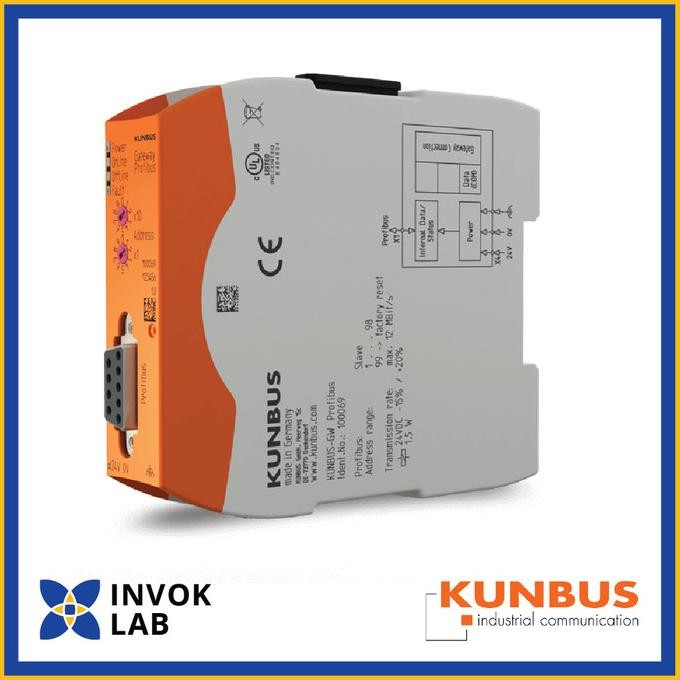

KUNBUS Revolution Pi RevPi Gate PROFIBUS - Slave Expansion module for PROFIBUS networks
The RevPi Gate PROFIBUS integrates the Revolution Pi system into an existing PROFIBUS network. The PROFIBUS gateway is connected to the respective base module via the overhead system connector.
Please note the following instructions:
This module is the Slave variant and not a Master module! If you are not familiar with industrial network protocols, please check with us beforehand to determine if such a module is suitable for your purposes.
The gateway is incompatible with RevPi Connect 4, RevPi Connect SE, and RevPi Core SE.
Please note that for each RevPi Gate, you will need a jumper to connect it to your Revolution Pi system, which is not included in the delivery. Additionally, please order the PiBridge plug separately.
More Information
Product type Gateway
Protocol PROFIBUS
Version Slave
compatible with RevPi Connect S, RevPi Connect+, RevPi Core S, RevPi Core 3+, RevPi Core 3
Bus connector D-SUB 9F
Max. baud rate 12 Mbit/s
I/O-Data 244 Bytes IN/OUT
Power supply 24 V DC
IP code IP20
EAN 4260498390052
WEEE-Reg.-No.: DE 34461592
Sebelum di kirim barang sudah di pastikan bagus dan tanpa kerusakan apapun.
