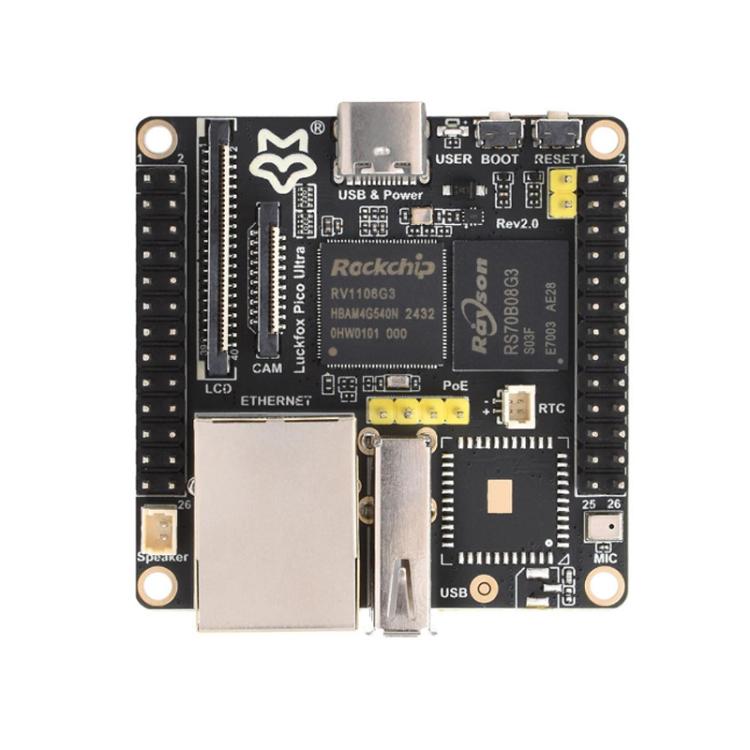

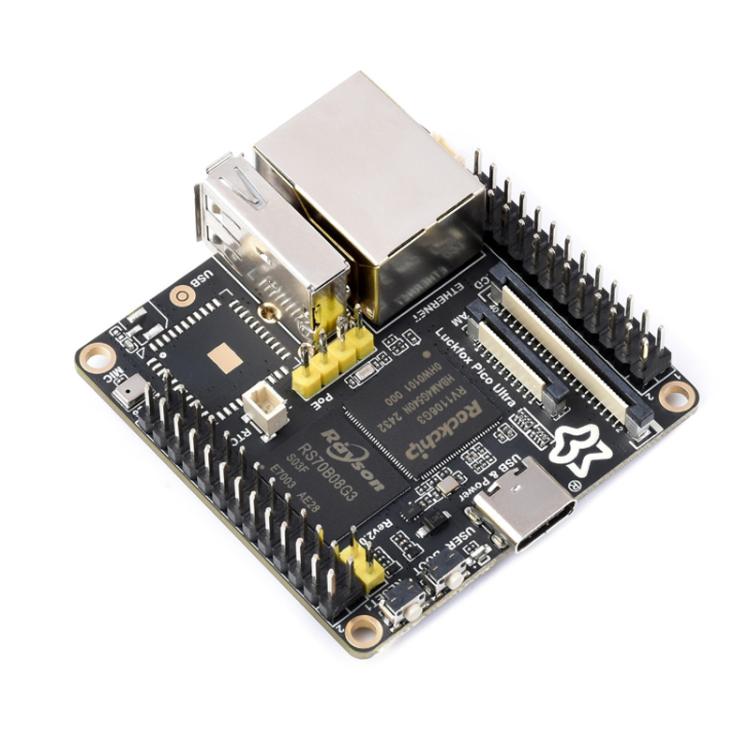

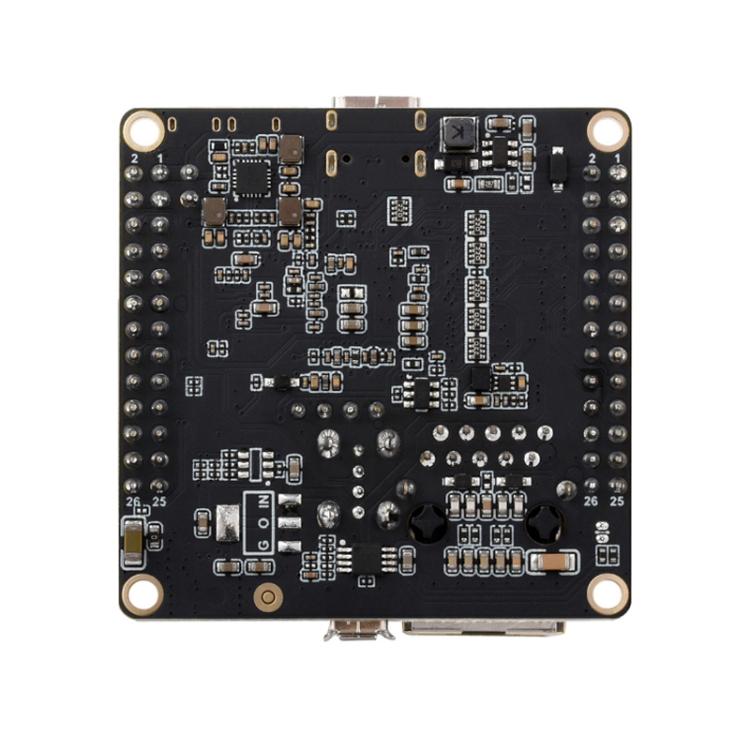

Luckfox Pico Ultra RV1106G3 1TOPS Micro Linux Development Board Integrated Processor, Without Wi-Fi/Without PoE, Specification: Without Screen

1. Processor: RV1106G32. NPU: 1TOPS3. Memory: 256MB DDR3L4. Based on the RV1106 series chip, it has a cost-effective Linux development board, aiming to provide developers with a simple and efficient development platform.5. Supports multiple interfaces, including MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB and other interfaces, which are very suitable for embedded applications6. Support capacitive touch with screen, which is sensitive to reaction, increases the convenience of development, and intuitive screen operation, making development more convenient7. Single-core ARM Cortex-A7 32-bit core, integrating NEON and FPU8. Built-in Ruxin Micro's self-developed 4th generation NPU, high computing accuracy, supports mixed quantization of int4, int8, and int16, RV1106G3 int8 computing power is 1TOPS, RV1106G2 int8 computing power is 0.5TOPS9. Built-in self-developed third-generation ISP3.2, supports 5 million pixels, supports HDR, WDR, multi-level noise reduction and other image enhancement and correction algorithms10. It has powerful encoding performance, supports intelligent encoding, and saves code streams according to the scene adaptively. It saves more than 50% of the code rate than the conventional CBR mode. It can not only shoot high-definition images, but also have a smaller video volume.11. Built-in 16-bit DRAM DDR3L to meet demanding memory bandwidth requirements
