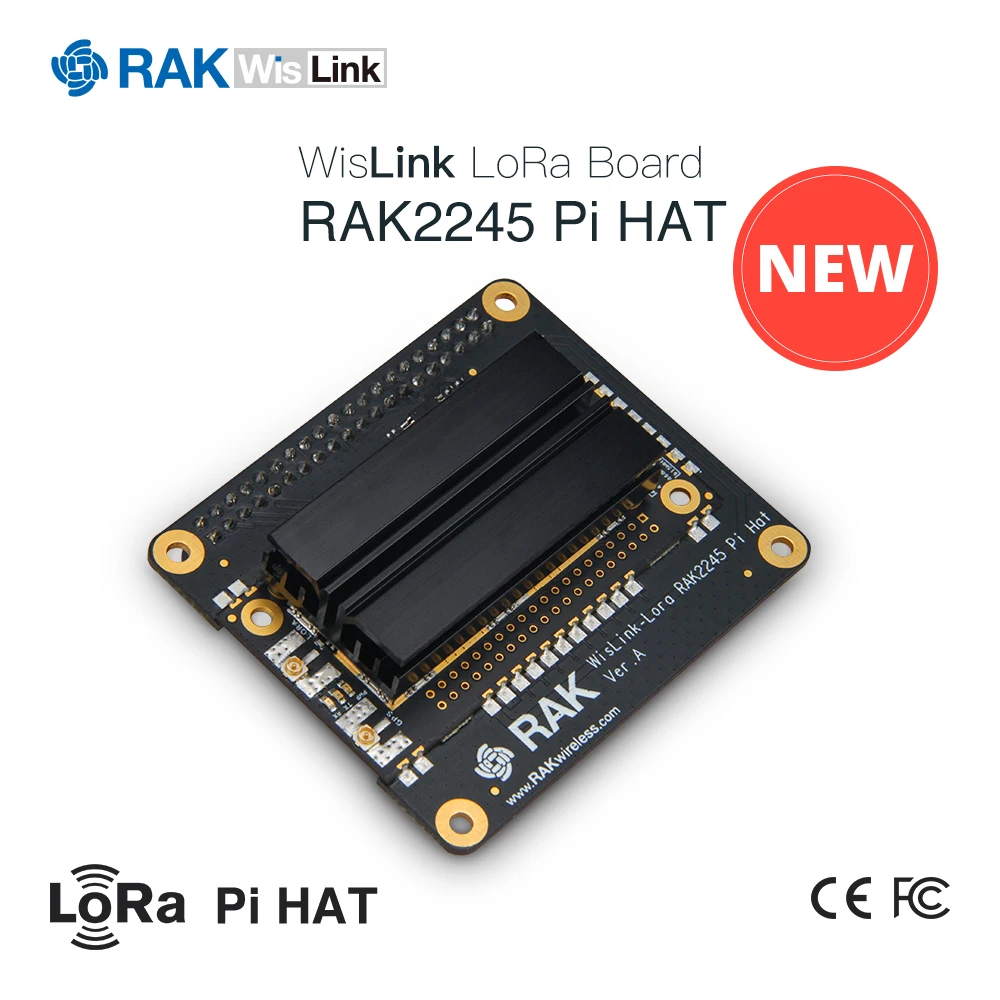

LoRaWAN Gateway Concentrator Module RAK2245 WisLink Raspberry Pi HAT Edition Based on SX1301 Include GPS Heat Sink 8 Channels
Technical Details
Antenna interface: | UFL connectors for LoRa |
Compliance: | FCC, CE |

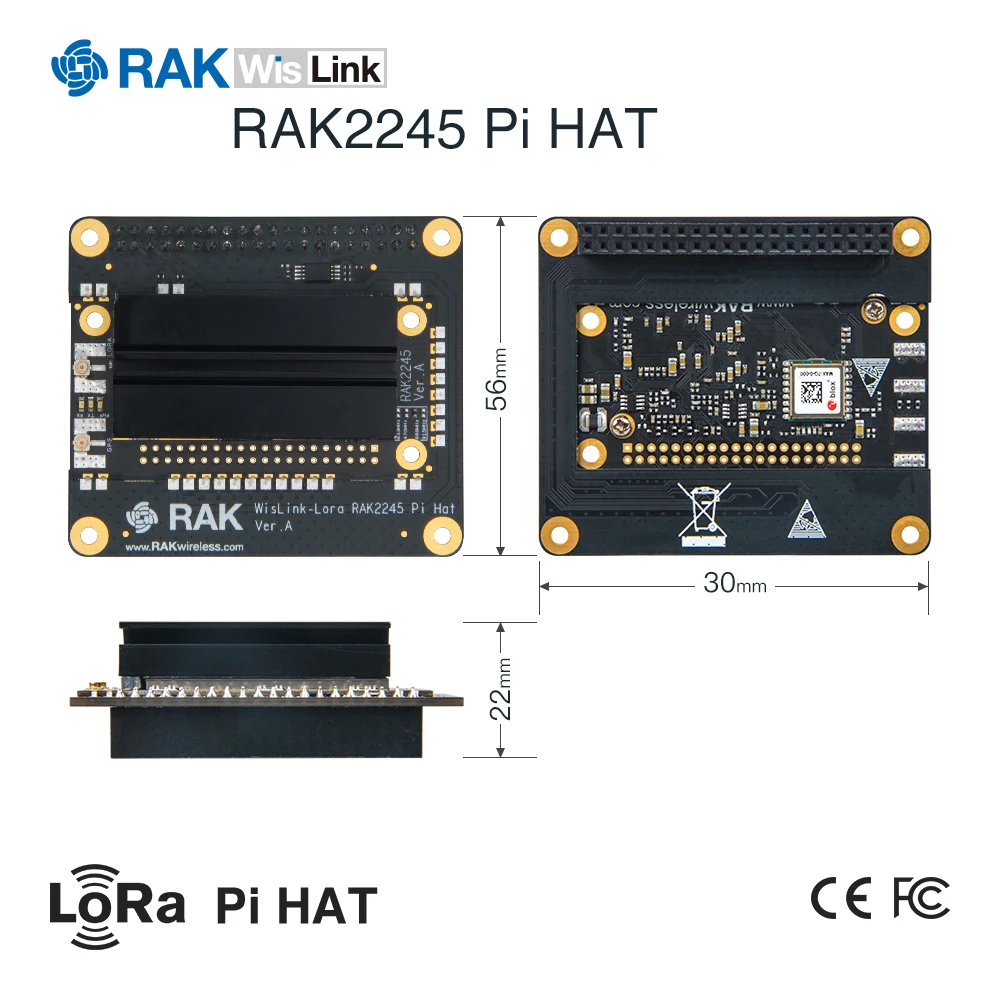

Form Factor: | Raspberry Pi HAT Edition |

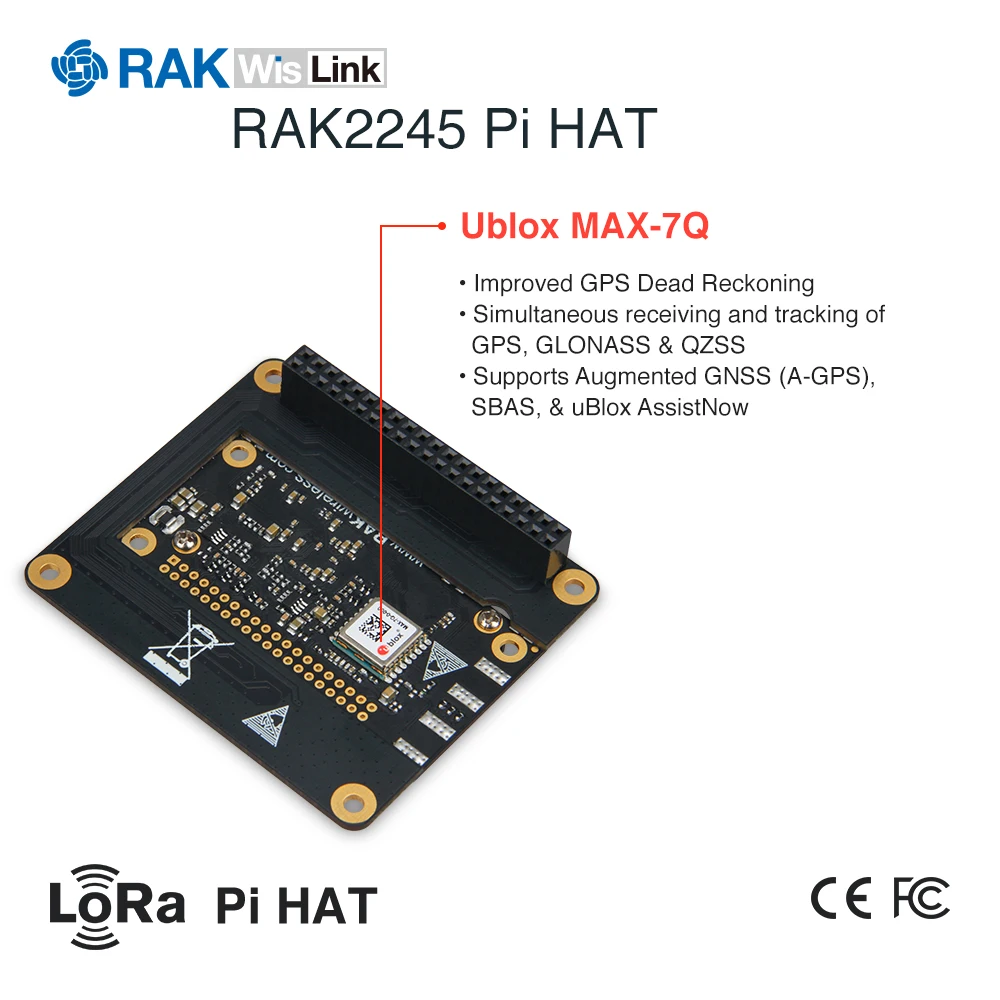

Gps Module: | Ublox MAX-7Q |

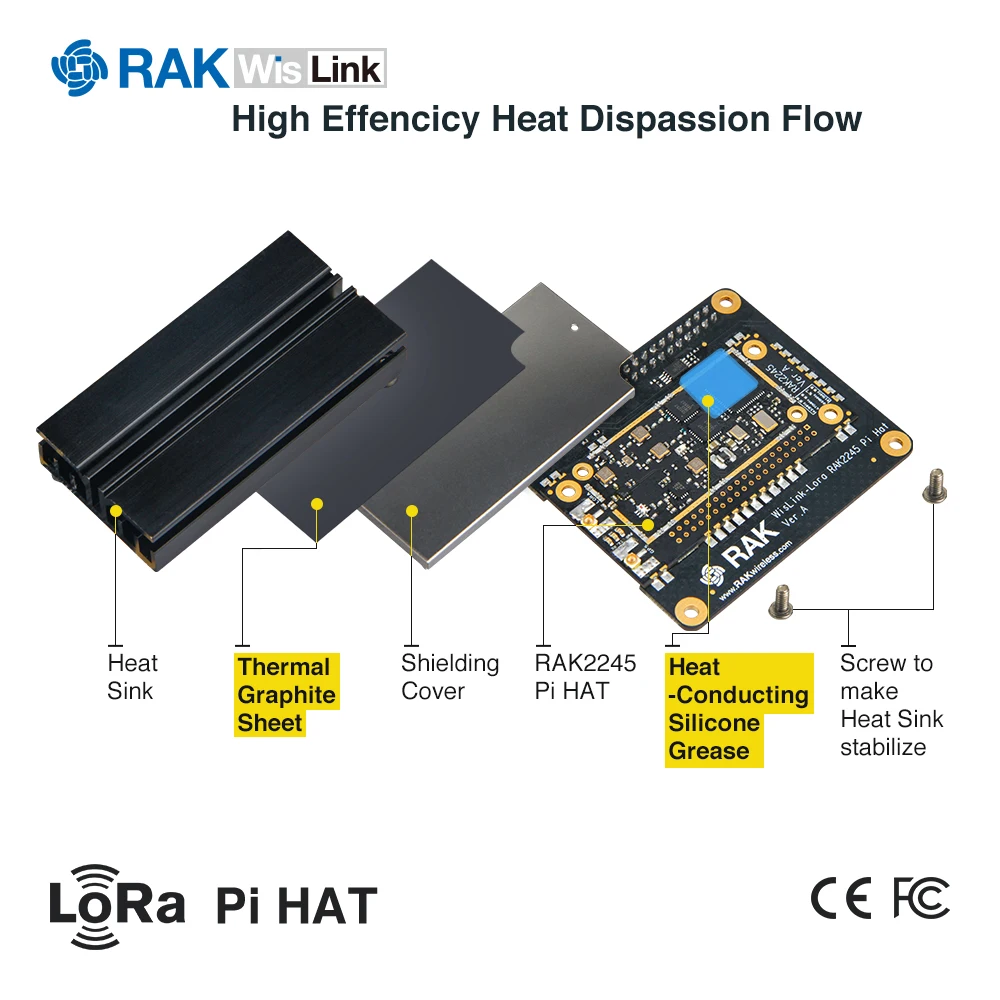

Heat Sink: | Metal Material |
Interfaces: | SPI, UART, I2C, GPIOs |
LED: | Green LED for TX status |
LoRa Module: | Semtech SX1301 & Semtech SX125X |
LoRaWAN Version: | LoRaWAN V1.0.2 |
Model Number: | RAK2245 Pi HAT |
Node Numbers: | 500 nodes/km2 |

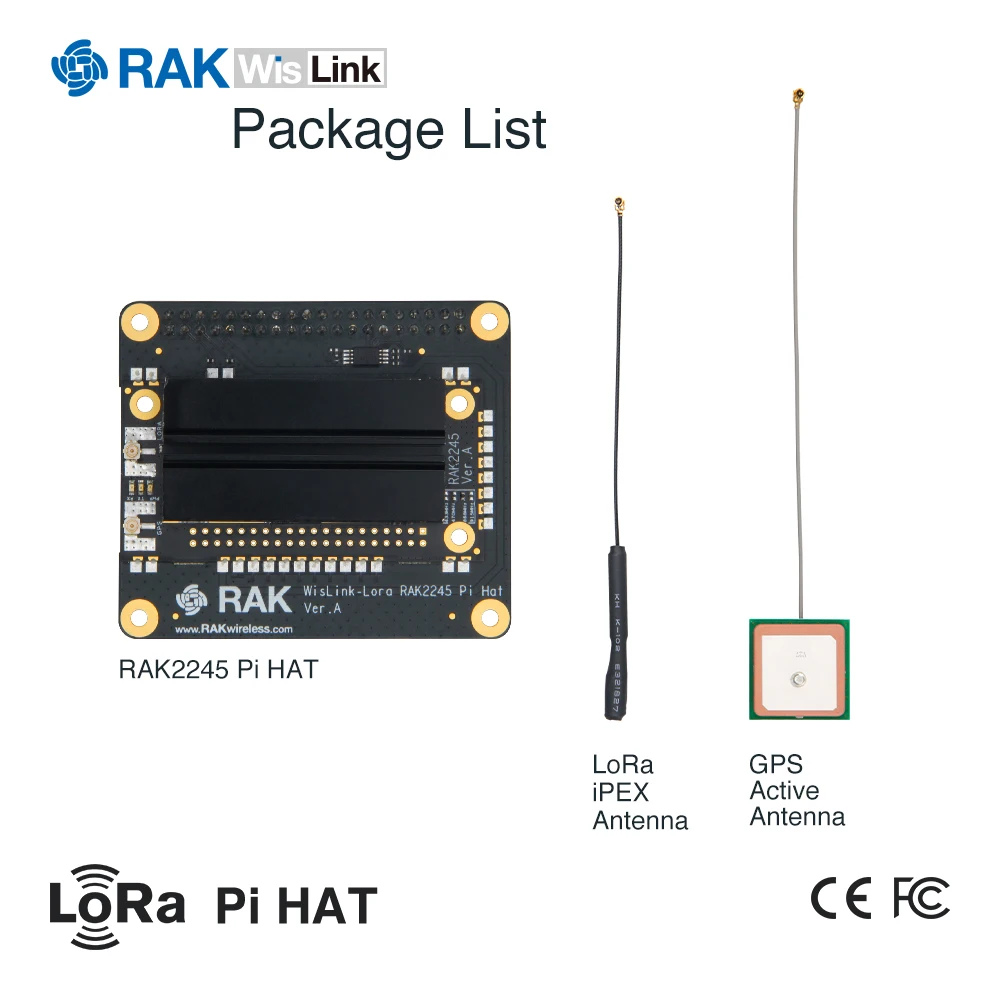

Package: | Yes |
Power Consumption: | TX (Max): 182 mA |
Power Supply: | DC 5V |
Products Status: | Stock |
Range: | Urban: 2 ~ 4km |
RX Sensitivity: | -139dBm(Min)@SF12, BW 125KHz |
TX Power: | 27dBm (Max), typical 25 dBm |
Type: | Cable Adapter |
