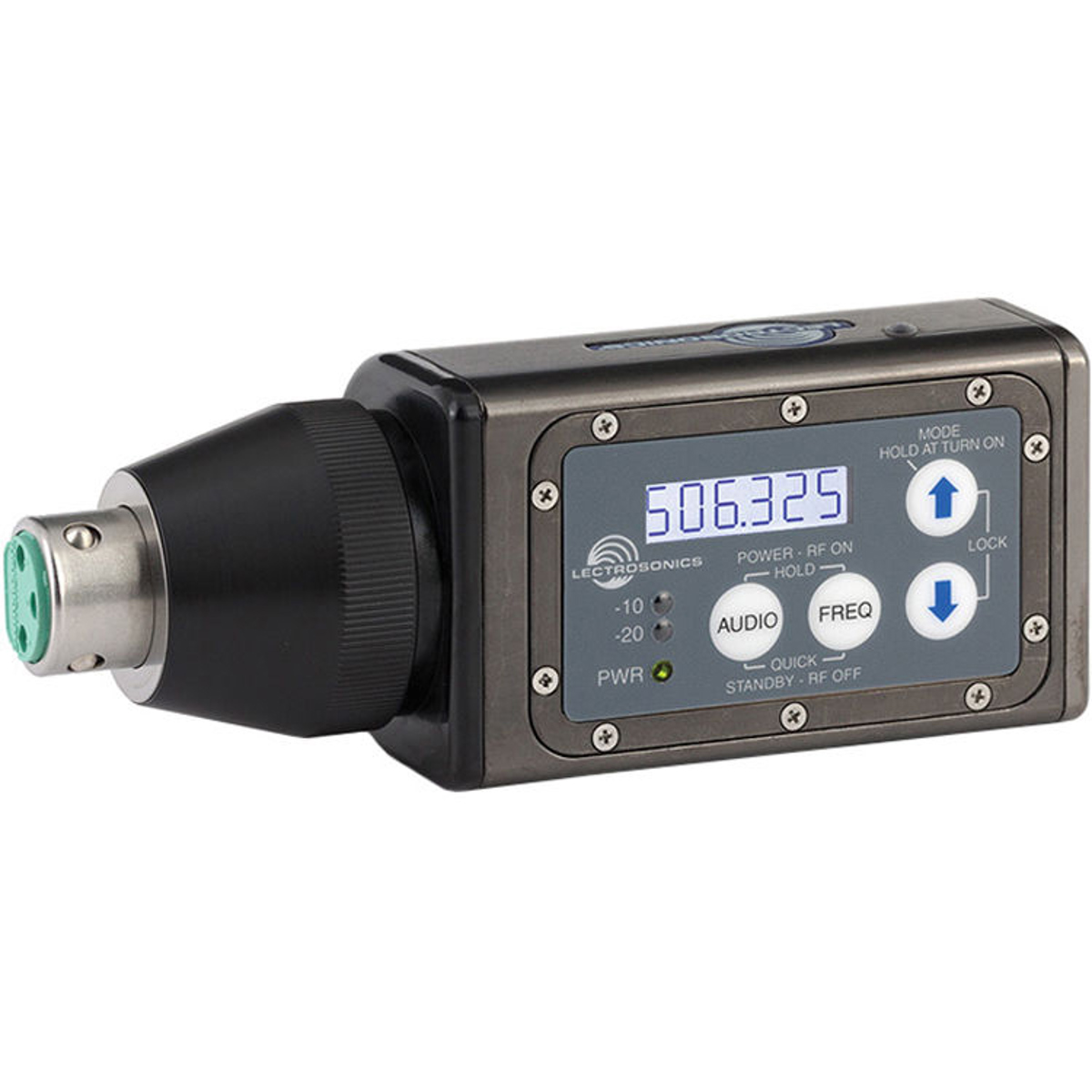

Lectrosonics HMa UHF Plug-On Wireless Transmitter, Frequency Band A1

This unique plug-on transmitter design will ideally match any microphone or line level source via a standard XLR connector. Phantom power is selectable at 5, 15 and 48 volts or can be turned off for use with dynamic microphones and line level signal sources. The design includes a wide tuning range of up to 76 MHz, with tuning steps in increments of 100 kHz or 25 kHz for up to 3072 frequencies. The tuning range covers three standard 25.6 MHz Lectrosonics frequency bands. Each of the standard bands includes 256 different pilot tone frequencies for compatibility with all Digital Hybrid Wireless receivers. DSP compatibility modes are also included to work with legacy Lectrosonics analog wireless microphone receivers and IFB receivers, as well as some receivers from other manufacturers. The transmitter is powered by two AA batteries, with status indicated by a multi-color LED. A USB port is provided for firmware updates. An IR (infrared) port is also included to simplify setup with IR enabled receivers. The input amplifier uses an ultra low noise op-amp for quiet operation. It is gain controlled with a wide range dual envelope limiter, providing over 30 dB of headroom above full modulation. A 24-bit A-D converter digitizes the audio, then filters supersonic noise above 21 kHz. The resulting signal is encoded with a proprietary algorithm to produce an analog data signal for RF transmission. The underlying RF link is an optimized FM system with +/-75 kHz wide deviation for a high signal to noise ratio. The audio performance of the overall hybrid system is depicted in the graph below. Distortion in the overall system is extremely low over the entire audio bandwidth. The antenna is formed between the machined aluminum housing of the transmitter and the attached microphone or cable. It functions as a dipole radiator when attached to a hand-held microphone and somewhat like a ground plane antenna when connected with a cable or plugged directly into a mixer. The conical shaped collar on the input coupler is made of DuPont Delrin to improve the ERP of the antenna in the uppermost frequency bands. Digital Hybrid Wireless is a revolutionary design that combines digital audio with an analog FM radio link to provide outstanding audio quality and the exemplary RF performance of the finest analog wireless systems. The design overcomes channel noise in a dramatically new way, digitally encoding the audio in the transmitter and decoding it in the receiver, yet still sending the encoded information via an analog FM wireless link. This proprietary algorithm is not a digital implementation of an analog compandor. Instead, it is a technique which can be accomplished only in the digital domain. The process eliminates compandor artifacts, expanding the applications to include test and measurement of acoustic spaces.The battery compartment door is hinged to the housing and remains attached to the transmitter when opened. It securely latches in place and applies pressure to the batteries when closed. The two AA batteries are connected in series through a conductive plate on the door. Setup and adjustments are made with the control panel membrane switches and LCD. The transmitter can be powered up without the transmitter output enabled to allow frequency adjustments without causing interference to other wireless systems nearby. The switches can also be bypassed to prevent accidental changes. Dual color LEDs indicate audio input level and the power LED changes color under low battery conditions.
