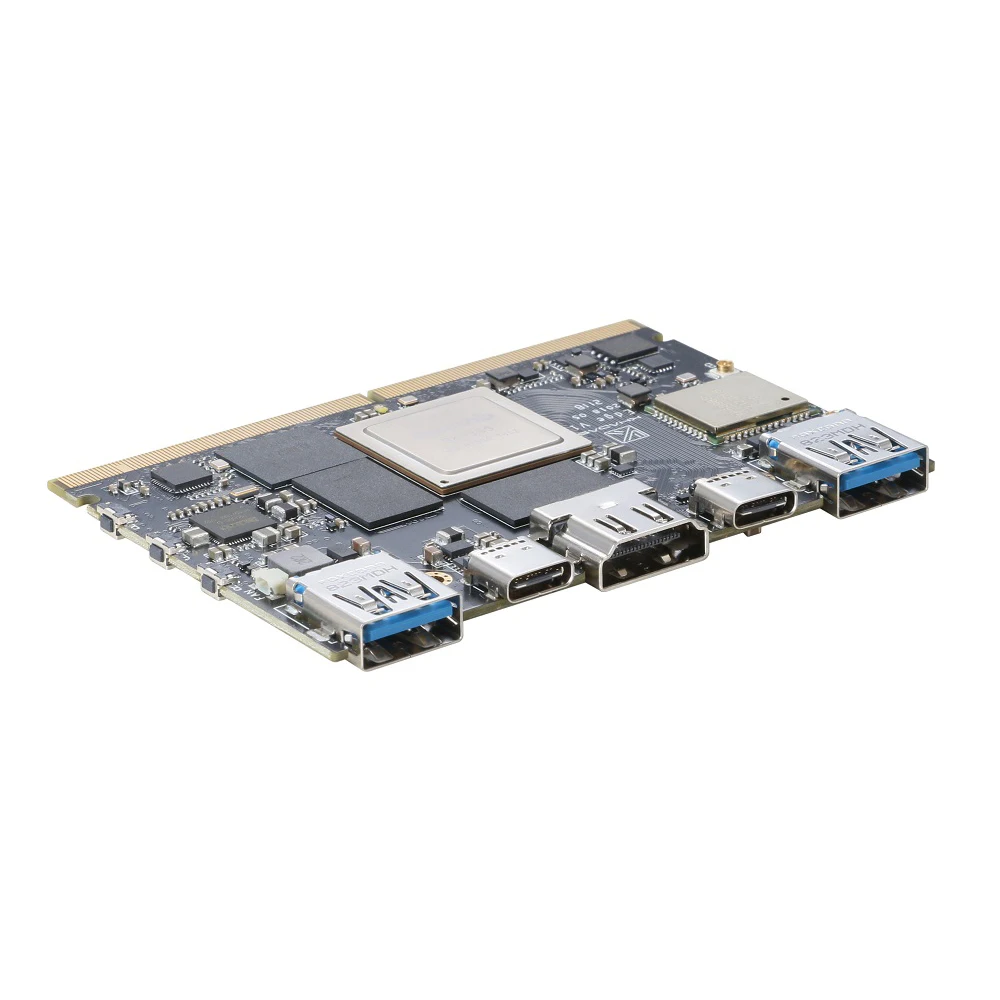

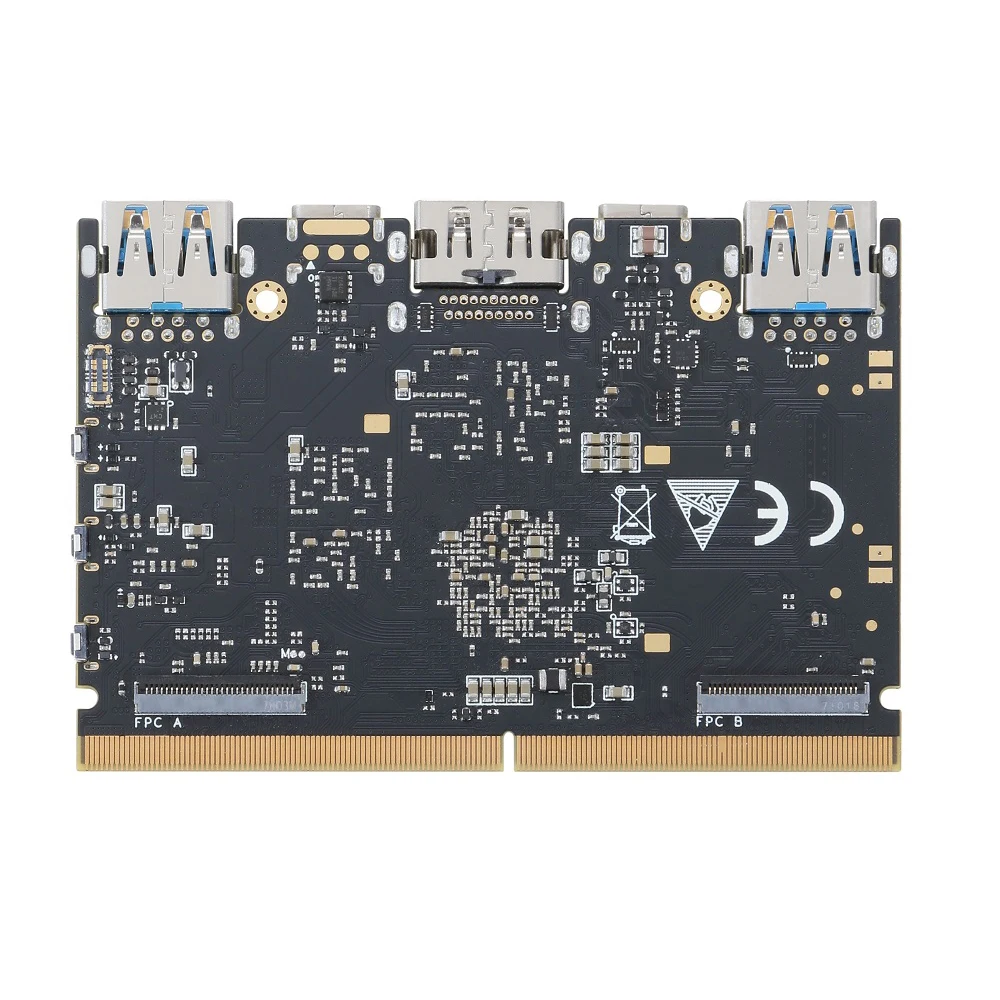

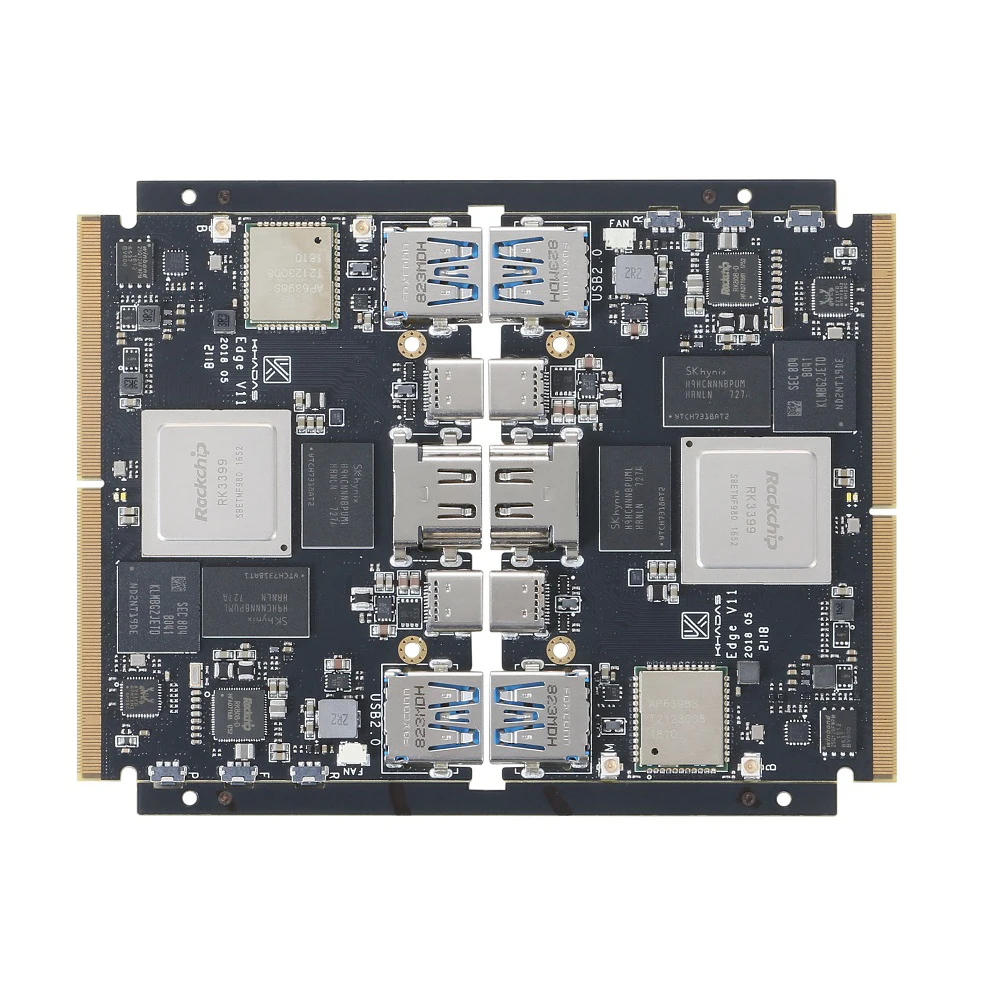

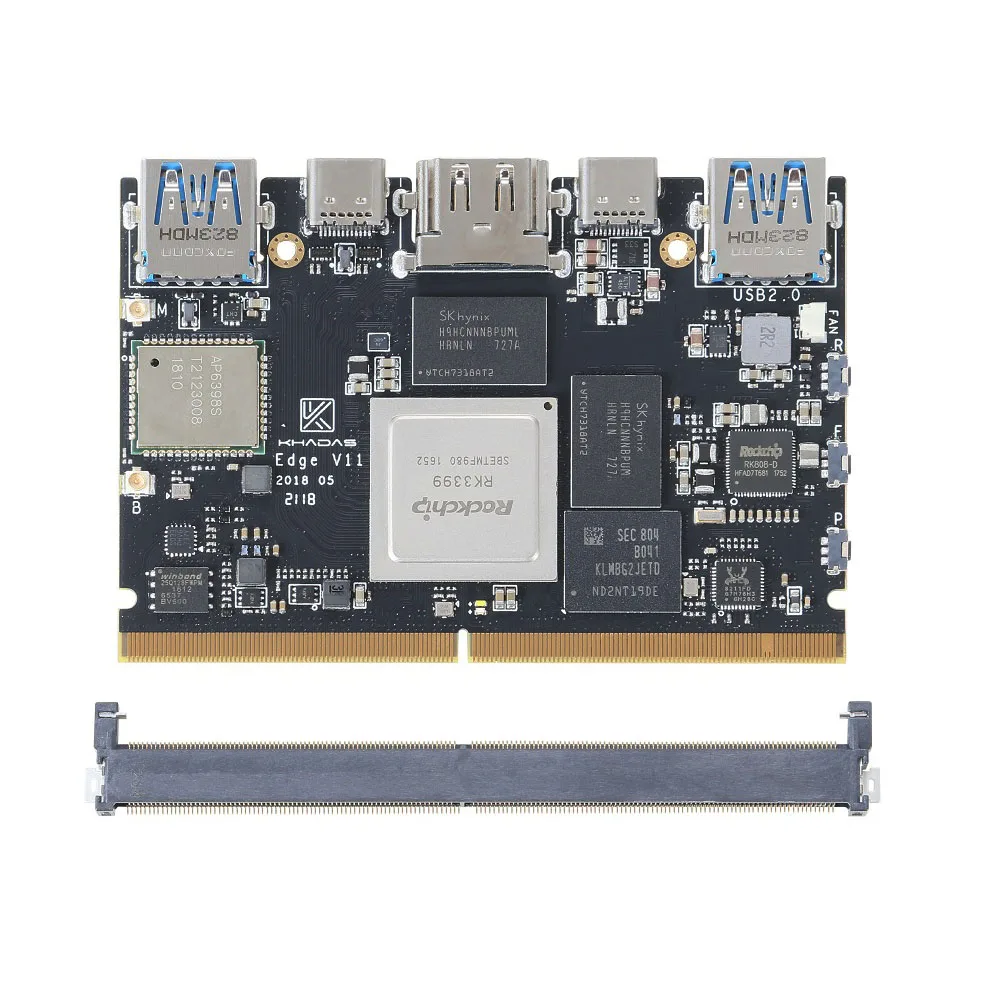

Khadas Edge Basic Rockchip RK399 Board on running!

Khadas Edge Basic Rockchip RK399 Board on running!
thumb
thumb
thumb
thumb
thumb
thumb
sku: 32894769705
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$99.90
Shipping from: China
   Technical Details
AI Features: Tensorflow, Android NN (Neural Networks API)
Battery connector: 2-Cell Battery Module
Bluetooth: V4.1
Board Dimensions: 82.0 x 57.5 x 5.7 mm
Board weight: 25g
Boot Loader: Mainline U-Boot
Brand Name: Khadas
Buttons: x3 (Power, Function, Reset)
Certifications: CE, FCC, ROHS
Cooling Fan Header: Controlled by PWM, with a 0.8mm Pitch Header
Demo Board Type: ARM
eMMC: 16GB
Ethernet PHY: 10/100/1000M RTL8211FD
FPC Connector A: 10-Pins, 0.5mm Pitch, with UART, I2C, SPI, SDMMC, ADC, PWM, IOs
FPC Connector B: 10-Pins, 0.5mm Pitch, with USB, I2S(8ch), I2C, MCU IOs
HDMI 2.0a: Type-A Female, up to 4K@60Hz, HDCP 2.2
HDMI CEC: Yes
Input voltage range: 5V to 20V
Intergrated Feature: 10/100/1000Mbps,bluetooth,WiFi 802.11b/g/n
Linux Kernel: Mainline Linux
LPDDR: 2GB
MCU: 8bit STM8S003 with Programmable EEPROM
Memory Capacity: 2GB
Model Number: Edge basic
O/S: Android Oreo, Ubuntu 18.04, Debian 9.0, and more
Pogo Pads for VIN: System Power Input
Processor Brand: Rockchip
Programmable LEDs: Blue LED x1, White LED x1
ROM Capacity: 16GB
SPI Flash: 16MB
USB Host: USB3.0x1, USB2.0x1
usb type-c: One for Power only; One with DP1.2 support
Wi-Fi: AP6356S, 802.11a/b/g/n/ac 2X2 MIMO
