ISDS205X Virtual PC USB Oscilloscope DDS Signal and Logic Analyzer 2CH 20MHz Bandwidth 48MSa/s 8bit ADC FFT Analyzer

oscilloscope
sku: 1103052
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$94.99
Shipping from: China
Description
Description: ISDS205 dual-channel digital oscilloscope, with "low-cost, high-performance" as the design goals. well-designed bandwidth of 20M, 48M sampling rate, 2 channels, alternating support X-T and XY alternating pattern of two-channel virtual oscilloscope, spectrum analyzer, data recorder. Digital Oscilloscope Channels 2 Impedance 1M 25pF Coupling AC/DC Vertical resolution 8Bit Gain range -6V ~ 6V (probe X1) -60V ~ 60V (probe X10) Vertical accuracy 3% Timebase range 1ns-20s Input Protection Diode, 50Vpk Autoset Yes(10Hz to 20MHz) Trigger Mode Auto, Normal and Signal Trigger Type No, Rising edge, Falling edge, Rising edge or Falling edge Trigger level Yes Trigger Source CH1, CH2 Buffer Size 1MB/CH Bandwidth 20MHz Max sample 48MS/s Vertical mode CH1, CH2, ADD, SUB, MUL Display Mode X, Y-T & X-Y measurements Yes Wave save Osc(Private) Excel and Bmp Spectrum Analyzers Channels 2 Bandwidth 20MHz Algorithm FFT(18 windows) correlation FFT points 8-1048576/CHN FFT measure Harmonic(1-7) SNR, SINAD, ENOB, THD, SFDR Filter processing FIR filter supports arbitrary range of frequency sampling method and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design. IIR filter support "Butterworth" "Chebyshev I" "Chebyshev II" "Elliptic" type of filter design Note: The oscilloscope factory calibration, if you are not satisfied with the measurements, canmanual calibration, the specific reference oscilloscope instructions. Data Recorder Channel 2 Impedance 1M 25pF Coupling AC/DC Vertical resolution 8Bit Gain range -6V ~ 6V (probe X1) -60V ~ 60V (probe X10) Sample 1 channel : 1K~24M Hz 2 channel : 1K~16M Hz Save File The maximum 4G, recording time associated with the sampling rate Note: The specific speed recorder with computer processing speed, and if use high sampling rate, the situation may break. Logic Analyzer(205C/205X) Channel 16 Sample 8 channel: 250K-24M Hz; 16 channel: 250K-16M Hz Sample points 1M-2GB Saleae Logic Logic Analyzer (205C/205X) Channel 8 Sample 25K-24M Hz Protocol Analyzer Atmel SWI BiSS C SPI I2C CAN UART I2S/PCM DMX-512 JTAG LIN Manchester 1-WIRE UNI/O Simple Parallel MDIO USB1.1 PS/2 Keyboard/Mouse Sample points 1MB-10TB DDS(205B/205X) Wave Sine, Square(Duty circle variable),Triangle,Up Sawtooth,Down Sawtooth Amplitude 9Vp-p(no load) Impedance 20010% Offset 2.5V Frequency range 1Hz - 20MHz(Sine) 1Hz - 2MHz(Others) Frequency resolution 1Hz Frequency steadiness 110-3 Frequency precision 510-3 Triangular wave linearity 98% (1Hz-10kHz) Sine wave distortion 0.8% (1kHz) Square wave rising/falling time 100ns Square wave duty circle 1%-99% SWEEP Sweep range Fs Fe Sweep time range 0.1 - 10 s Amplitude 0.5Vp-p - 10Vp-p Package included: 1 x ISDS205X 5 in 1 Oscilloscope 1 x USB Cable 1 x BNC Clip Probe 1 x Pair Oscilloscope Probe 1 x Set Logical Cable 1 x CD Detail Pictures:
Price history chart & currency exchange rate
Customers also viewed

$12.13
Flower Iris Printed Water-Soluble Canvas Cross Stitch Kit Embroidery Handicraft Painting Sewing Handiwork Jewelry Package Sales
aliexpress.com
$4.62
Мотор насоса омывателя лобового стекла 85330-12340 для Toyota Camry Corolla Sienna
aliexpress.ru
$14.13
UV Protected Waterproof Decal for Car Bike Bumper Laptop The Whole Body Cover Scratches Decoration Motorcycle Helmet Accessories
aliexpress.ru
$15.32
Формы для торта в форме арахиса, штамп для печенья, ручное давление, инструмент для выпечки лунного торта F1CC
aliexpress.ru
$20.49
Blue Banana Sling Dress clothes for women women dress dress summer 2024 women summer dresses ladies 2024
aliexpress.ru
$2,155.51
MT медицинские Ванны из нержавеющей стали для домашних животных, принадлежности для ванны, ванночка для ухода за собаками для клиники домашних животных
aliexpress.com
$1,600.00
Factory Price Inflatable Toy Children Adult Park Outdoor Giant Durable Inflatable Obstacle Training Bounce House
aliexpress.com
$409.04
Independent Stepless Adjustment Double Motor Powerful Pet Dryer High Power Pet Hair Dryer
aliexpress.com
$44.24
10 MHP-20 Portable Electric Hydraulic Punching Machine Die Copper Aluminum Row Angle Iron Punching Machine Die
aliexpress.com
$40.51
Релейный модуль управления вентилятором для автомобиля-A4 A6 S4 Allroad-Nuevo 8D0959501D 8D0959501B
aliexpress.com
$580.00
Electric Air Duct Seaming Machine Lock Seamer Hand Air Duct Lock Seam Closing Machine
aliexpress.com
$954.94
A New High-precision Feeding Machine With A Handheld Air Blown Electric Screwdriver 50W For Automatic Screw Locking Machine
aliexpress.com
$13.79
PARTS-MALL P1Z-A008 Прокладка под свечу HYUNDAI SONATA 94-98/ELANTRA/LANTRA кронштейн 1шт
goods.ru
$395.23

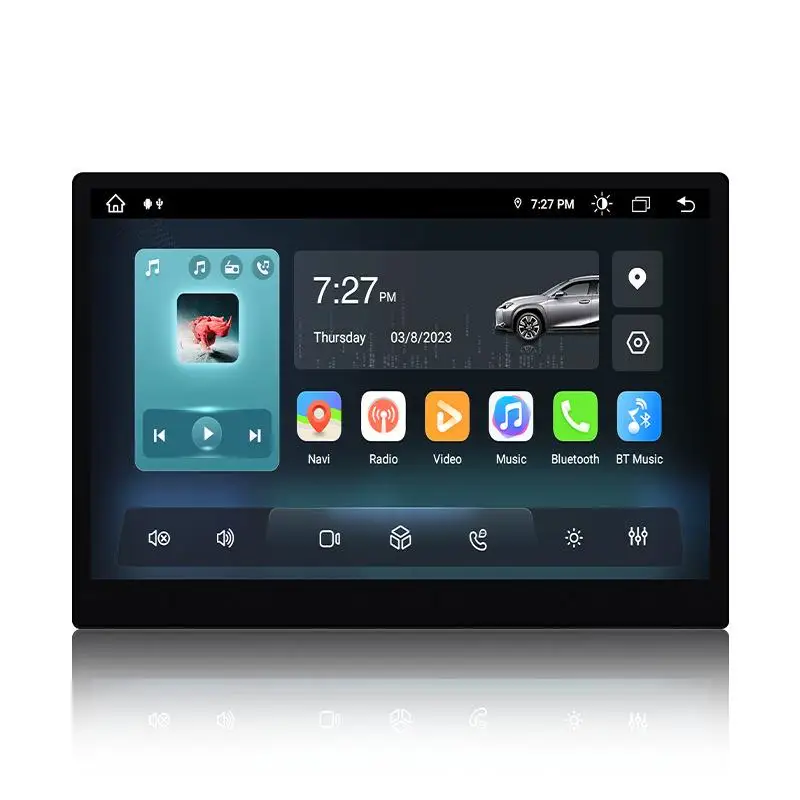

Hot MTK8667 octa-core 12.2-inch hundred Android car navigation with CARPLAY with DSP
