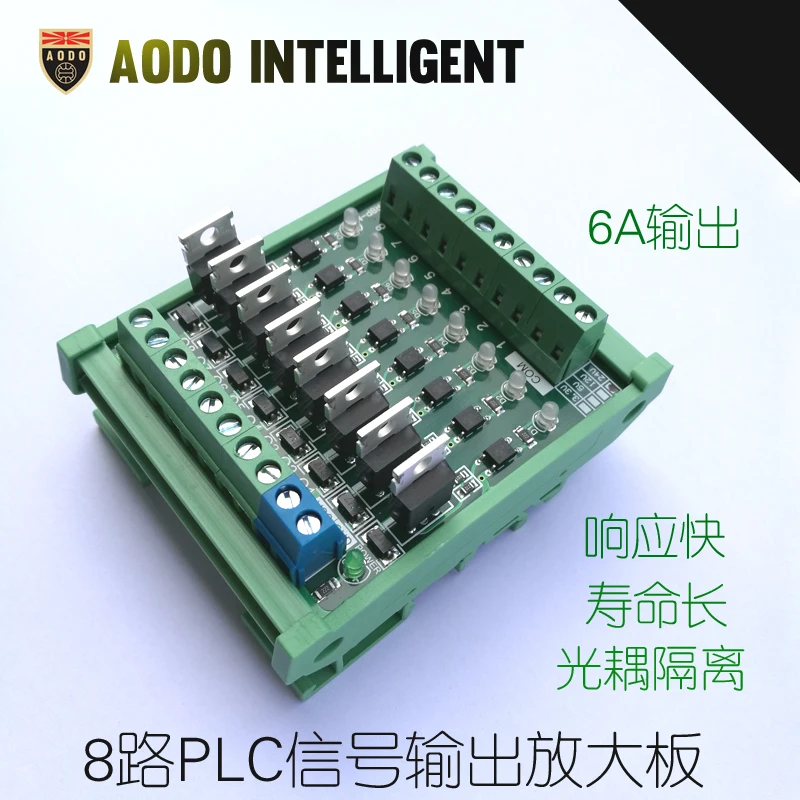

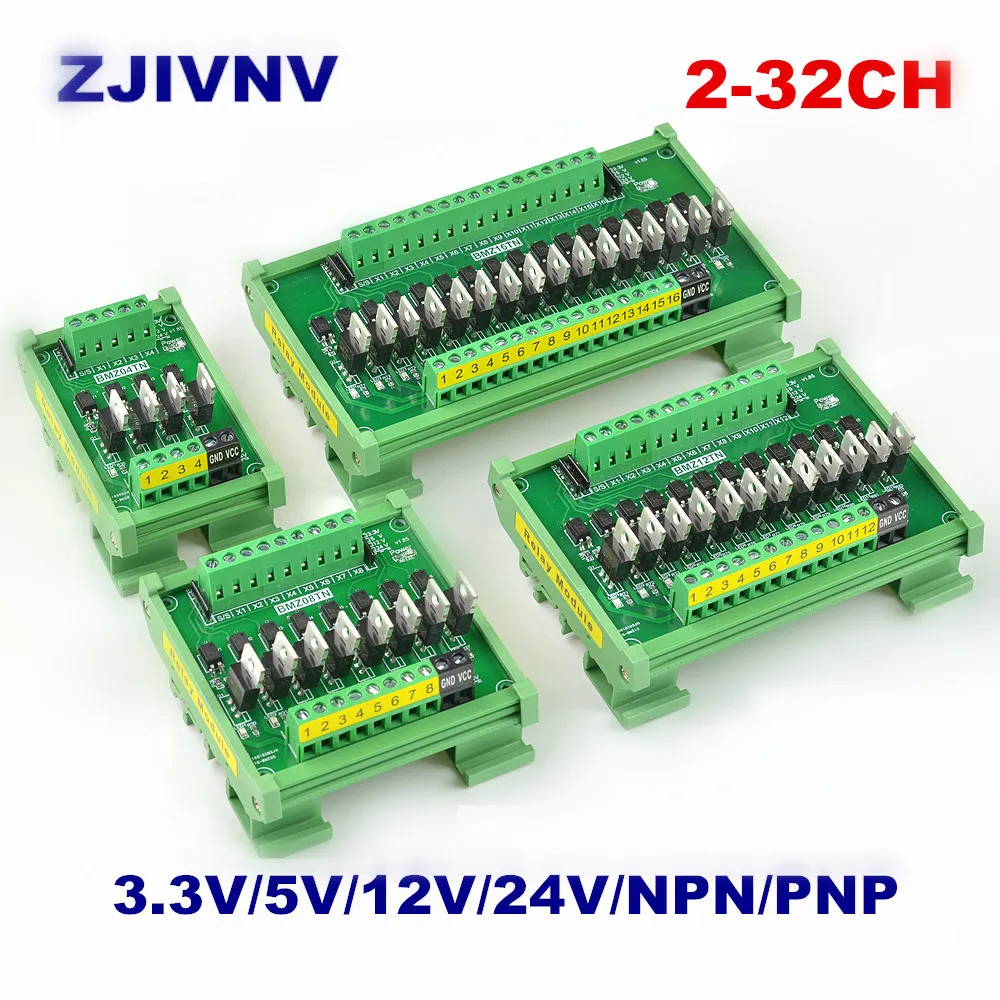

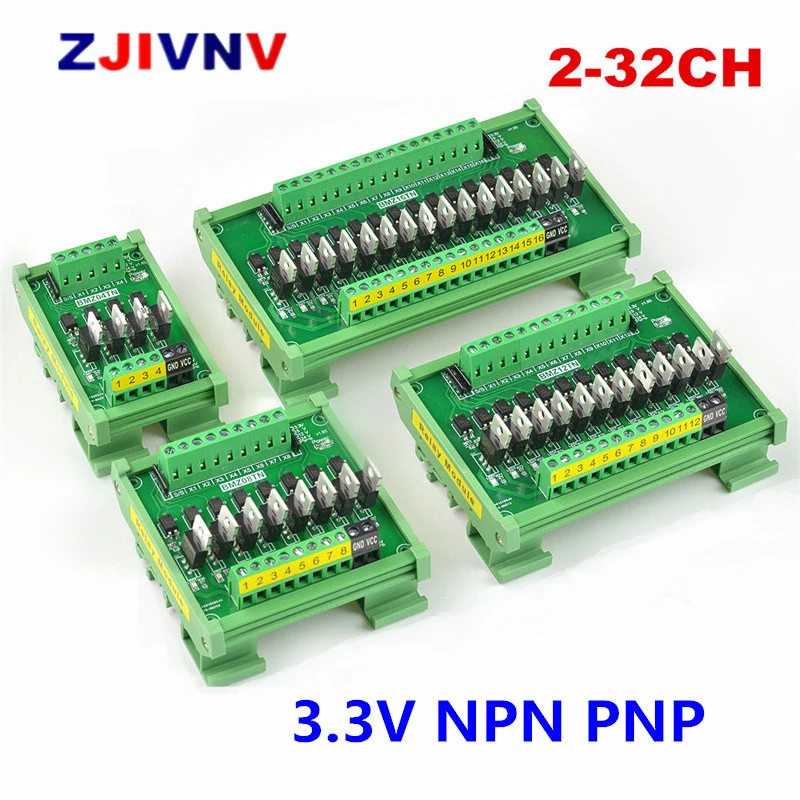

IO Card PLC Signal Amplifier Board PNP to NPN Mutual Input Optocoupler Isolation Transistor Output Low Level Relay Module

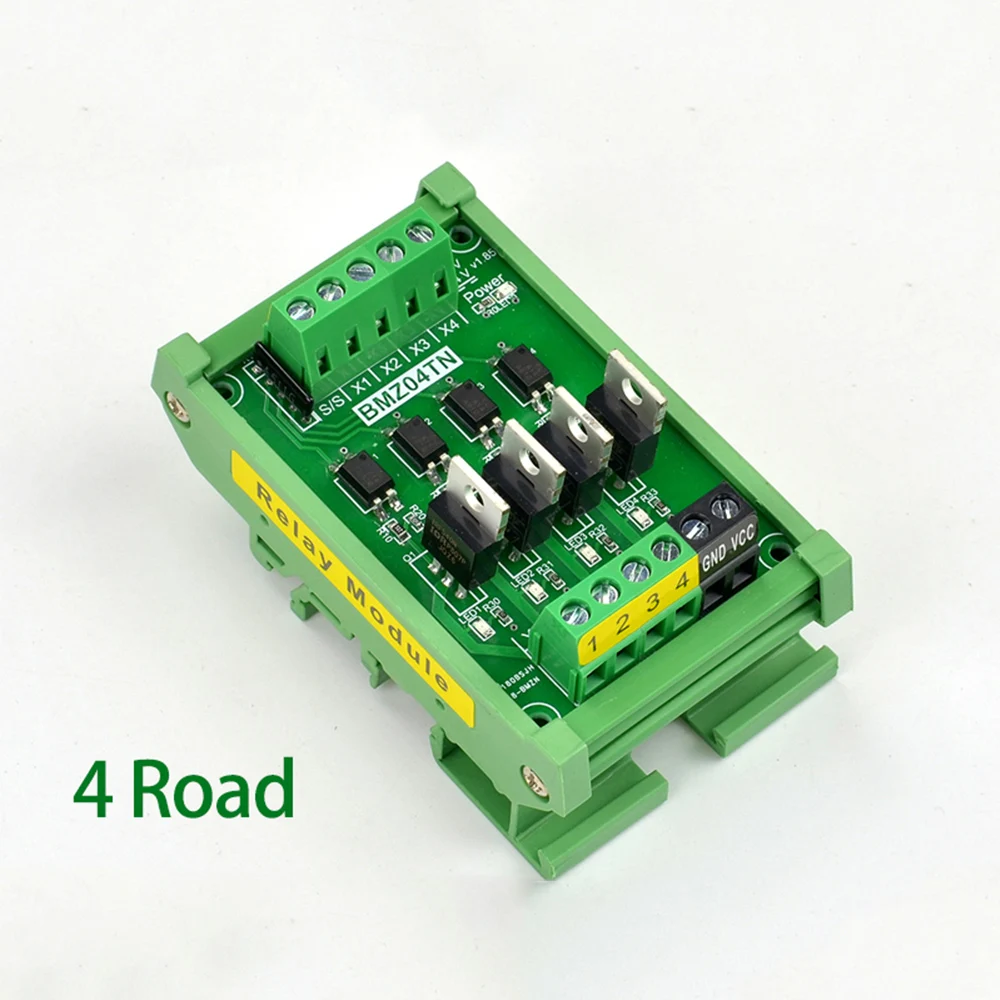

Technical Parameters: Control voltage: DC3.3-24V Input current: 5-10mA Output type: non-contact type Drive component: P/N channel FET Maximum output current: 6A Output voltage: DC5-24V Operating time: 1ms or less Reset time: 1ms or less Maximum switching frequency: 2000Hz Horizontal group installation: standard rail mounting Instructions: X1~X7 are the access terminals of the trigger signal. S/S is the selection terminal for the high and low levels of the trigger signal. E.g: When the trigger signal is high, then the S/S terminal should be connected to the negative terminal corresponding to the trigger signal. Conversely, when the trigger signal is low, the S/S terminal should be connected to the positive pole corresponding to the trigger signal. Package includes: 1 x Relay module
