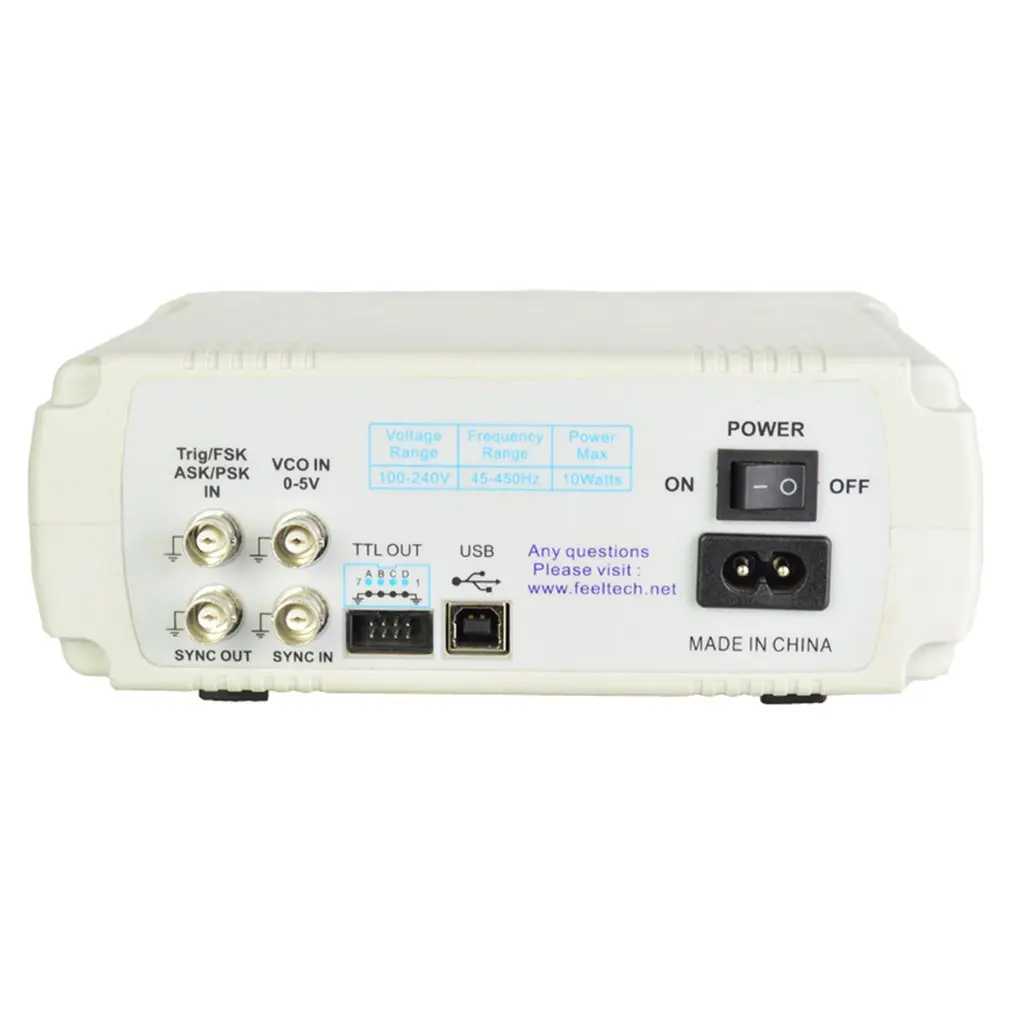

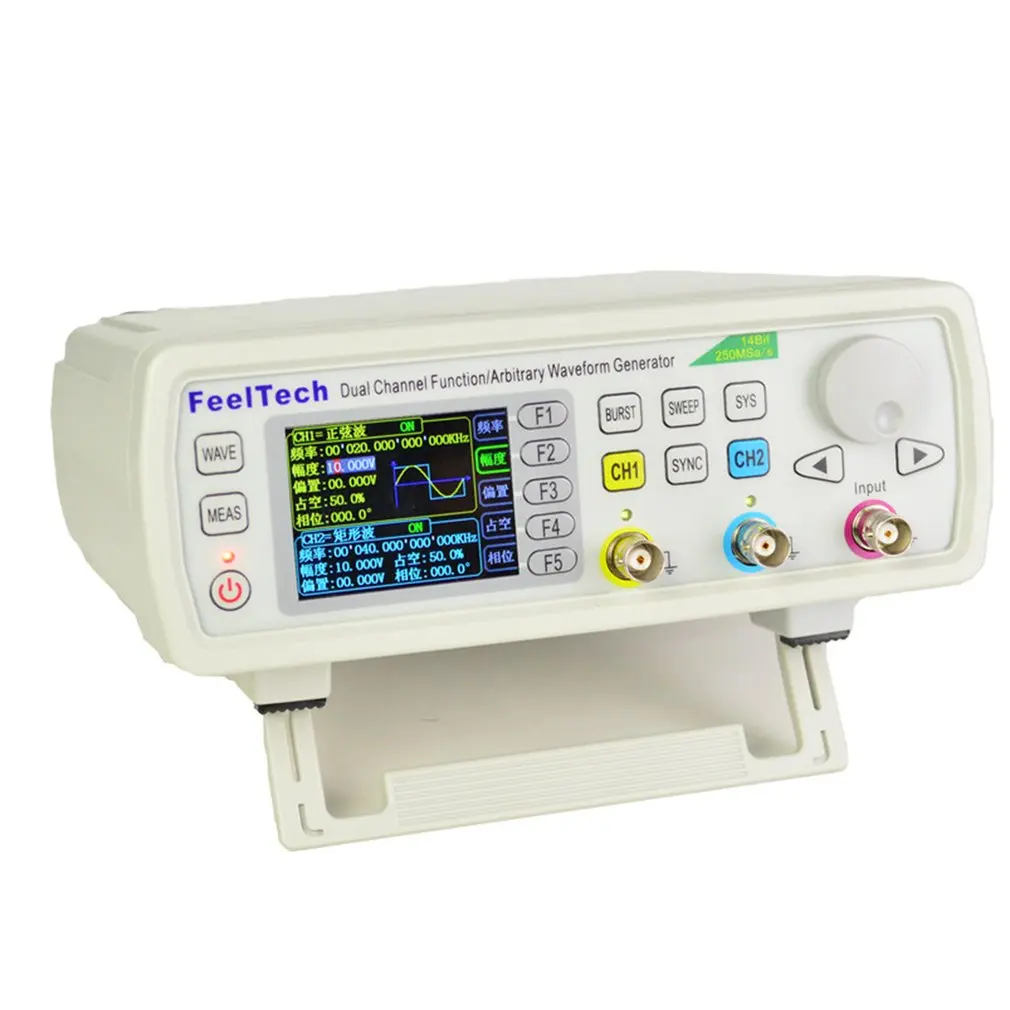

FellTech FY6600-30M 30MHZ Digital Control Dual-channel DDS Function Signal Generator Frequency Meter Arbitrary US
sku: 4000174695114
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$74.98
Shipping from: China
Technical Details
| Amplitude Flatness: | +/-2.5%(<10MHz); +/-5%(>10MHz) |
| Amplitude Stability: | +/-0.5%/5 Hours |
| AmplitudeVPP: | Frequency≤10MHz 10MHz20MHz |
| Arbitrary Waveform: | 0Hz~10MHz |
| Brand Name: | ACEHE |
| Burst count: | 1~1048575 |
| Buzzer: | Can be turned on/off by setting |
| Carrier Waveform: | Sine, Square, Ramp, Arbitrary (except DC) |
| Color: | White |
| Communication Protocol: | Command Line Mode, providing communication protocols |
| Communication rate: | 115200bps |
| Counting range: | 0~4294967295 |
| Coupling mode: | 2 kinds of Coupling Modes |
| Depth: | 0% to 100% |
| Display Type: | 2.4 inch TFT Color LCD |
| DIY Supplies: | Electrical |
| Duty Cycle: | 0.01%~99.99% (Resolution 0.01%) |
| Environmental conditions: | Temperature |
| Fan-out: | >8 TTL LOAD |
| Frequency accuracy: | +/-20ppm |
| Frequency Meter Range: | 0.01Hz~100MHz; Resolution |
| Frequency stability: | +/-1ppm/3 Hours |
| High Electric Level: | 1V~10V |
| Impedance: | 50Ω +/-10% (Typical) |
| Input voltage range: | 2Vpp~20Vpp |
| Interface: | Interface Type |
| Key Frequency: | 1μHz~10MHz |
| Low Electric Level: | <0.3V |
| Material: | Plastic+Metal |
| Measurement Objects: | Frequency, Period, Positive/Negative Pulse Width, Duty Cycle |
| Min. Pulse Width: | 20ns(Pulse wave minimum width of all models can reach 20ns) |
| min. resolution: | 1μHz |
| Model: | FY6600 |
| Model Number: | FY6600 |
| Modulating Frequency: | Internal |
| Modulation Signal Range to Input: | 0~5V |
| Modulation Type: | AM, FM, PM, ASK, FSK, PSK |
| Offset Range: | Frequency≤20MHz |
| Offset Resolution: | 1mV |
| Overshoot: | ≤5% |
| Phase Deviation: | 0° to 360° |
| Phase Range: | 0~359.99° |
| Position: | 01 to 20 (01 for start default value) |
| Power Supply: | Plug Type |
| Power voltage range: | AC100V~240V |
| Protection: | All channels can work within 60s under load short-circuit condition |
| Ramp Pulse Wave: | 0Hz~10MHz |
| Resolution: | 1mV |
| Rise/fall Time: | ≤18ns |
| Sampling Rate: | 250MSa/s |
| Save & Load: | Amount |
| Sawtooth wave: | Linearity >99% (0.01Hz~10kHz) |
| Setting Range: | Starting Position and Finishing Position can be set arbitrarily |
| SINE: | Harmonic Suppression |
| Sine Wave Range: | 0Hz~30MHz |
| Size: | 19.5 * 17.5 * 7cm/7.67 * 6.9 * 2.75in |
| square: | Rise/Fall Time |
| Sweep Direction: | Forward, Backward and Roundtrip |
| Sweep Objects: | Frequency, Amplitude, Offset, Duty Cycle |
| Sweep range: | Decided by Parameters Setting |
| Sweep time: | 0.01s-999.99s/Step |
| Sweep Type: | Linear Sweep or Logarithm Sweep |
| Technic: | SMD, LSI, Reliable and Durable |
| Total harmonic distortion: | <0.5% (20Hz~20kHz,0dBm) |
| Triangle wave: | 0Hz~10MHz |
| Trigger Source: | Manual, Internal, External (AC/DC) |
| TTL/COMS: | 0Hz~20MHz |
| TTL Level Amplitude: | >3Vpp |
| VCO Signal Frequency Range: | 0-1000Hz |
| Vertical resolution: | 14 Bits |
| Waveform length: | 8192 points * 14bits |
| Weight: | 614g/21.68oz |
