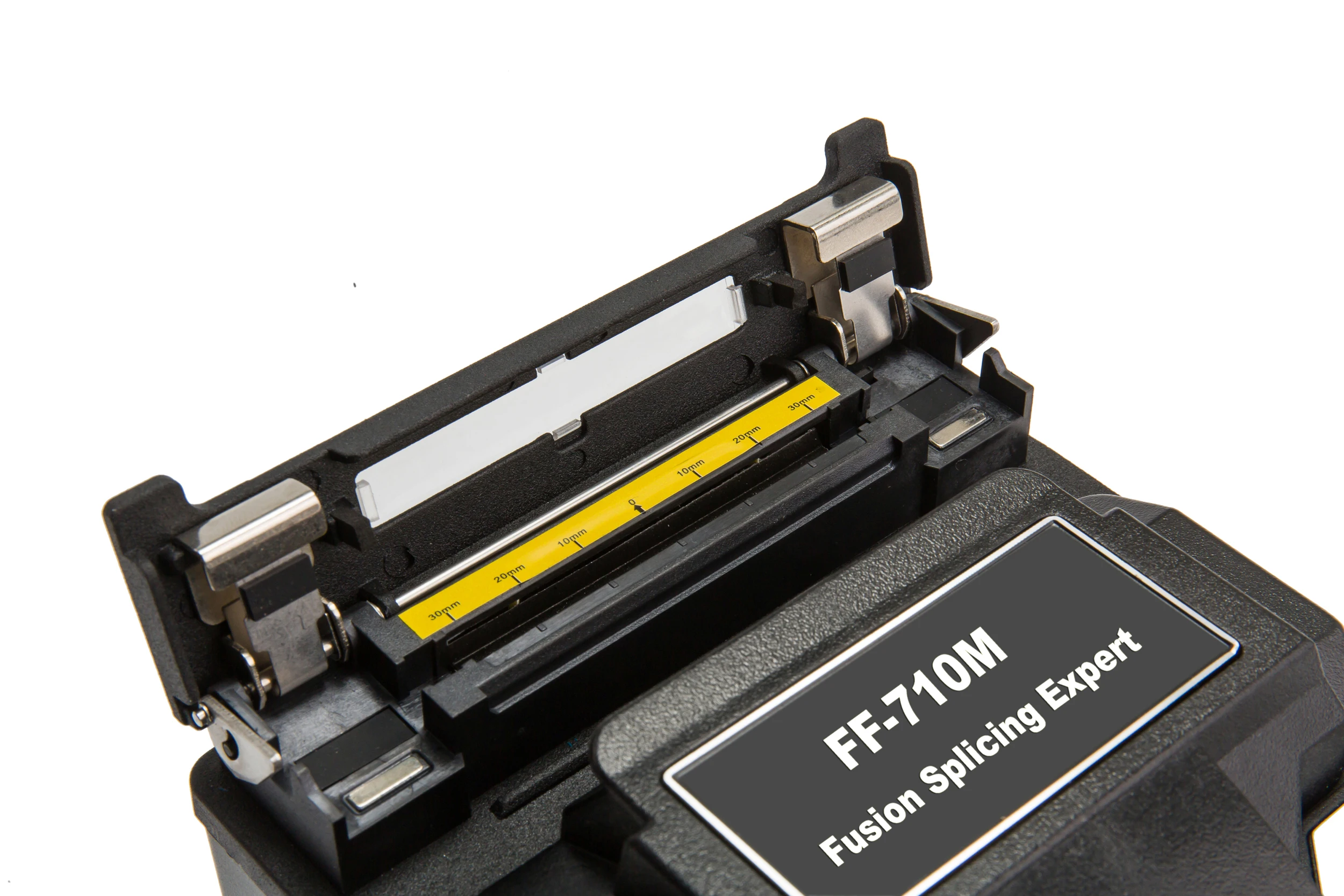

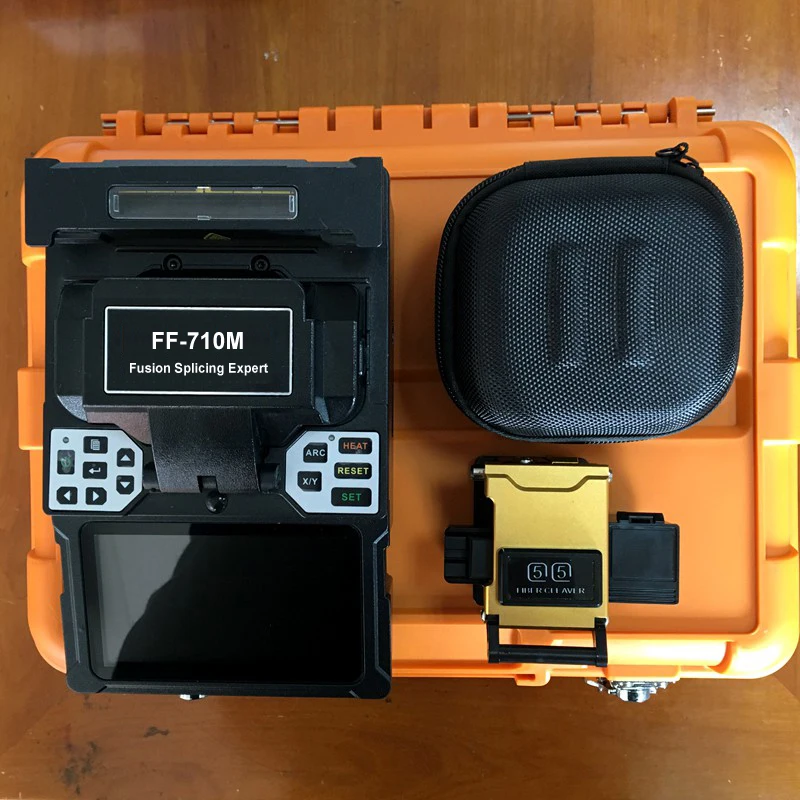

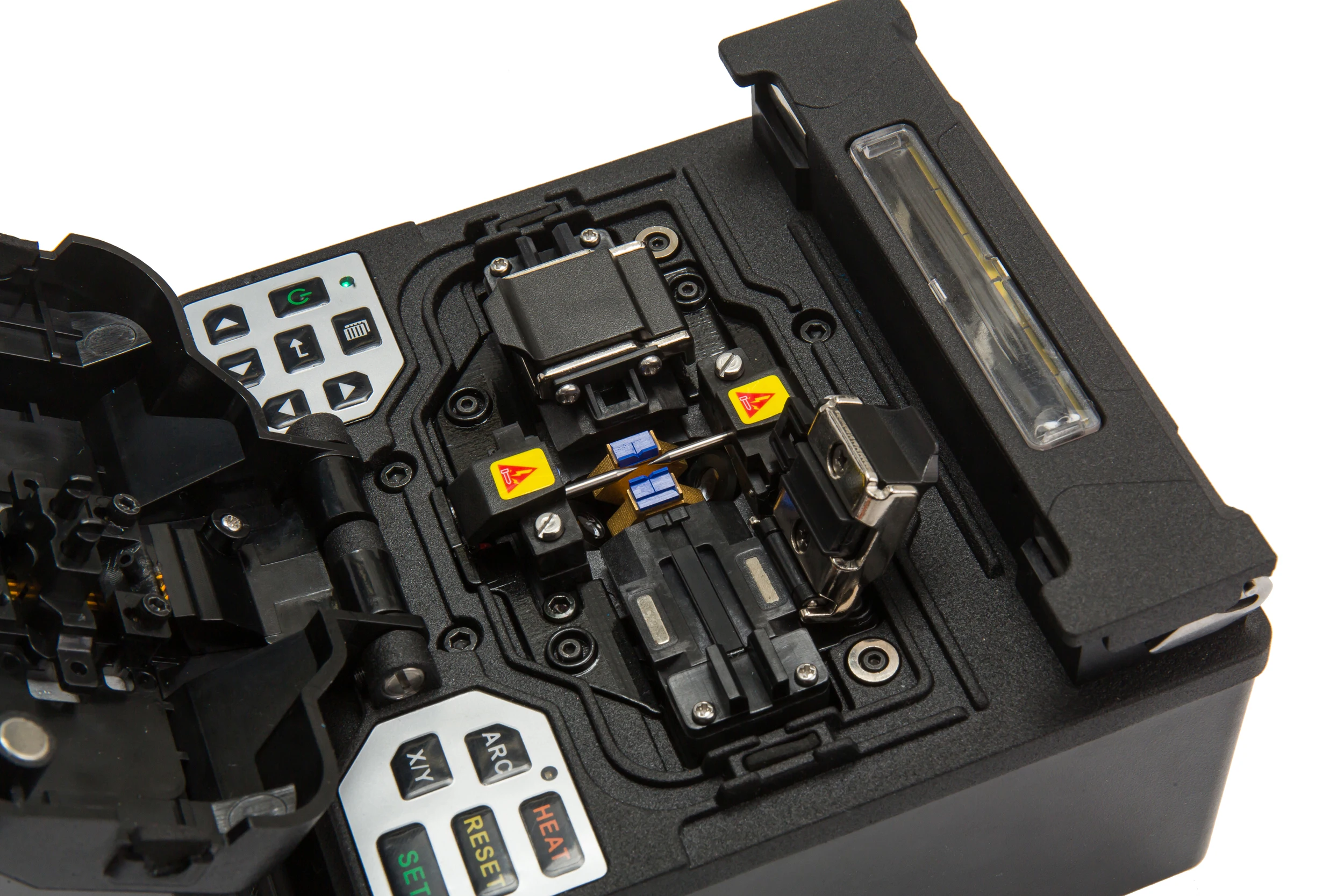

FF-710M Automatic Fusion Splicer Fusion Splicer Fiber Optic Splicing Machine Fiber Fibre Welding
sku: 33056064200
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$848.00
Shipping from: China
Technical Details
| Applicable fibers: | SM, MM, DS, NZ-DS(G655), EDF |
| Auto-heating: | Available |
| Battery Capacity: | 4400mAh Li-battery |
| Brand Name: | OLOEY |
| Compatible: | Zyxel |
| Connector Type: | Hybrid |
| Data Interface: | USB 2.0 |
| Diameter of cladding: | 80 -150μm |
| Diameter of Coating: | 160 - 900μm |
| Dimension: | 200mm(L)x123mm(W)x95mm(H) |
| Display: | 4.3 inch color LCD monitor |
| Electrode life: | More than 4000 ARC, replaced conveniently |
| Fiber Type: | Multimode |
| Interactive Interface: | GUI menu interface, easier operation |
| Item Length: | 1m |
| Loss Evaluation: | Available |
| Magnification: | 250X(X or Y view), 125X(X and Y view) |
| Model Number: | FF-710M |
| Operation Mode: | Manual, Automatic |
| Power Supply: | Power charging adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Return Loss: | >60dB |
| Splicing program: | 40 groups |
| Storage of splice result: | 4000 results |
| Tension Test: | 1.8-2.2N |
| Tube heating time: | 26 seconds |
| Typical Splicing loss: | 0.02dB(SM),0.01dB(MM), 0.04dB(DS),0.04dB(NZDS) |
| Typical splicing time: | 7seconds |
| Viewing Method: | 2 CMOS cameras |
| Weight: | 1.6kg (Including battery) |
