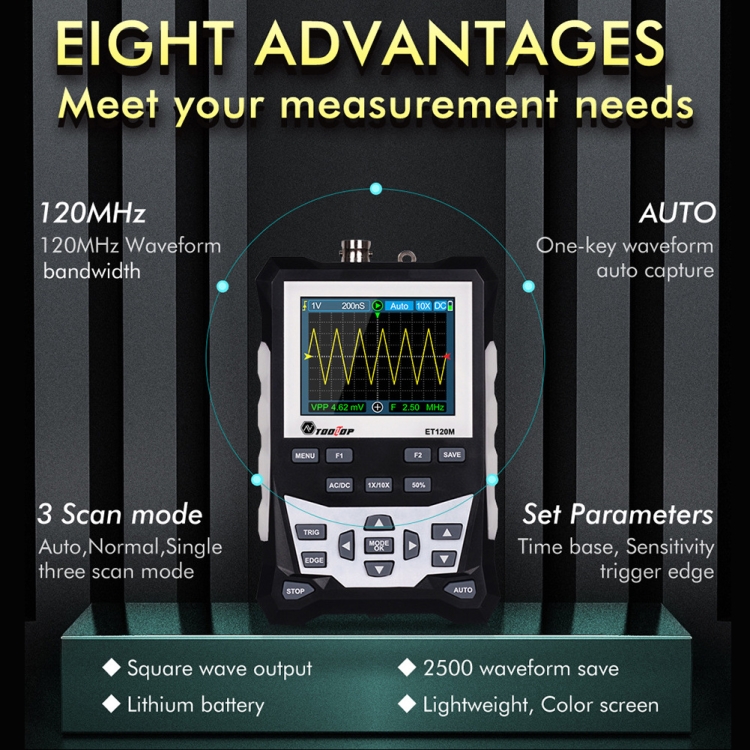

ET120M 120MHz Digital Color Simulation Oscilloscope

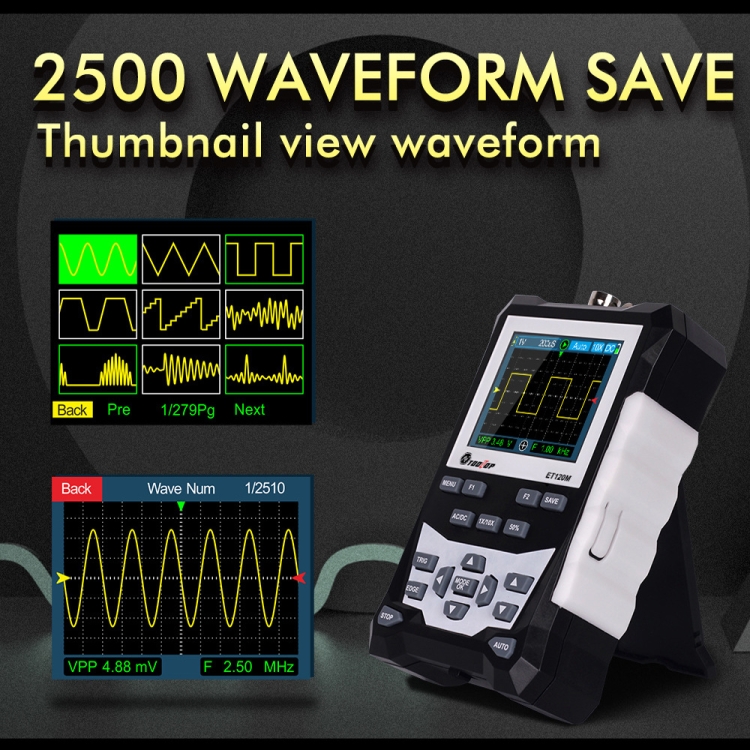

1. Material: ABS2. Screen: 320 x 240 LCD screen3. Display area: 50mm x 40mm4. Backlight: White, 8-level brightness5. Impedance: 1X-1Mohm/ 10X-10Mohm6. Battery: Lithium battery7. Automatic shutdown: no operation for 15 minutes8. Save: 2500 DSO waveforms9. Dimensions: 124 x 80 x 35 (mm)10. Weight: about 180g11. Use conditions: 0 to +40 degrees Celsius; less than 75%RH12. Waveform bandwidth: 120MHz13. Number of channels: 114. Voltage: 1X: 80 Vpp 10X: 800 Vpp15. Coupling: DC/AC16. Signal output: 1KH, 10KHz, 100KH+z, 1MHz17. Voltage accuracy: 10%18. Frequency accuracy: 1%19. Storage depth: 12.8div20. Input impedance: 1MΩ21. Vertical sensitivity: 50mV~100v22. Time base range: 6nS～50S23. Trigger Mode: Auto/Normal/Single24. Trigger slope: rise/fall25. Charging: DC5V/1A/2A26. Sampling rate: 500MSps (MAX)27. Automatic measurement function: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, Du-28. Applicable occasions: home appliance inspection, automobile diagnosis, scientific research and education, product development, equipment debugging
