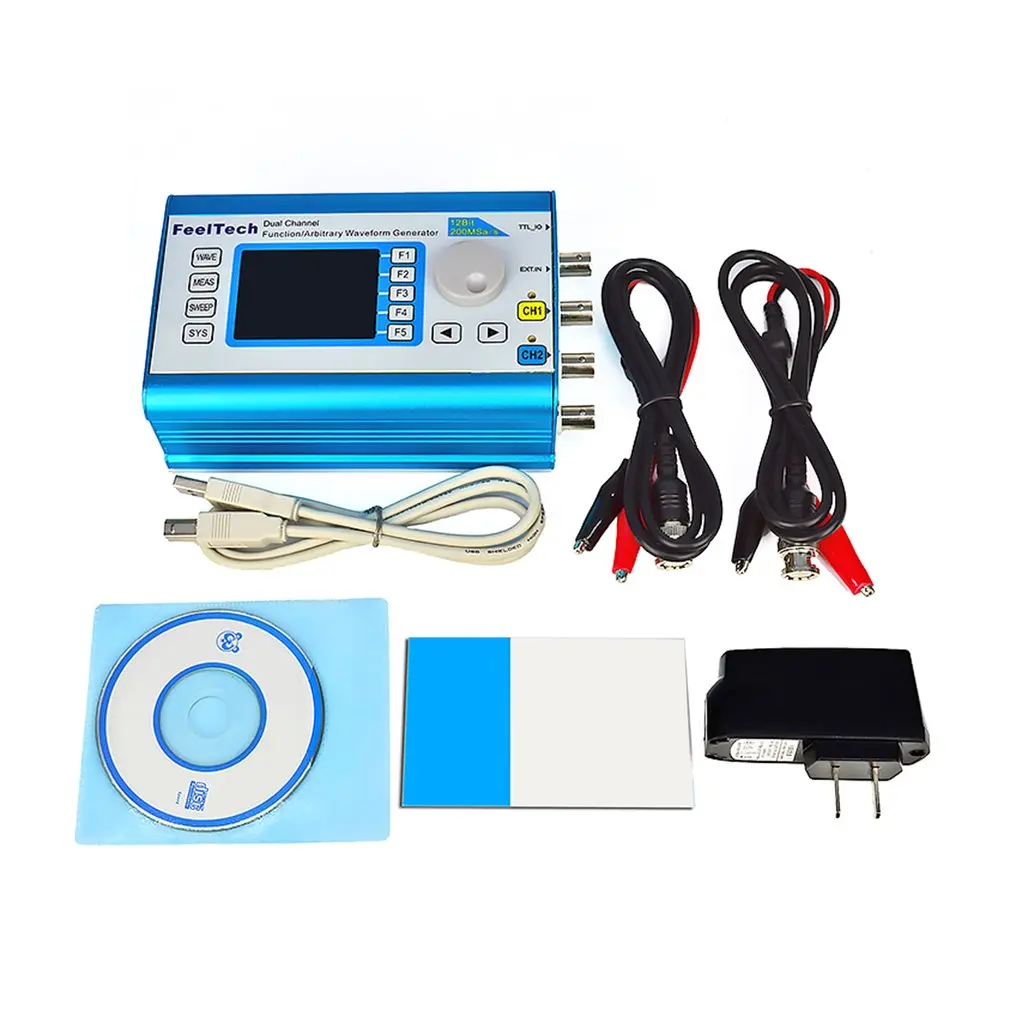

Digital DDS Dual-channel Signal Generator Arbitrary Waveform Function 200MSa/s 6MHz 12 Bits Frequency Meter
sku: 4000178356467
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$58.33
Shipping from: China
Technical Details
| Amplitude Flatness: | (+/-)5%(<10MHz); (+/-)10%(>10MHz) |
| Amplitude RangePeak to Peak: | 10mVpp~20Vpp |
| Amplitude resolution: | 1mVp-p (-20dB Attenuation) |
| Amplitude Stability: | (+/-)0.5%/5 Hours |

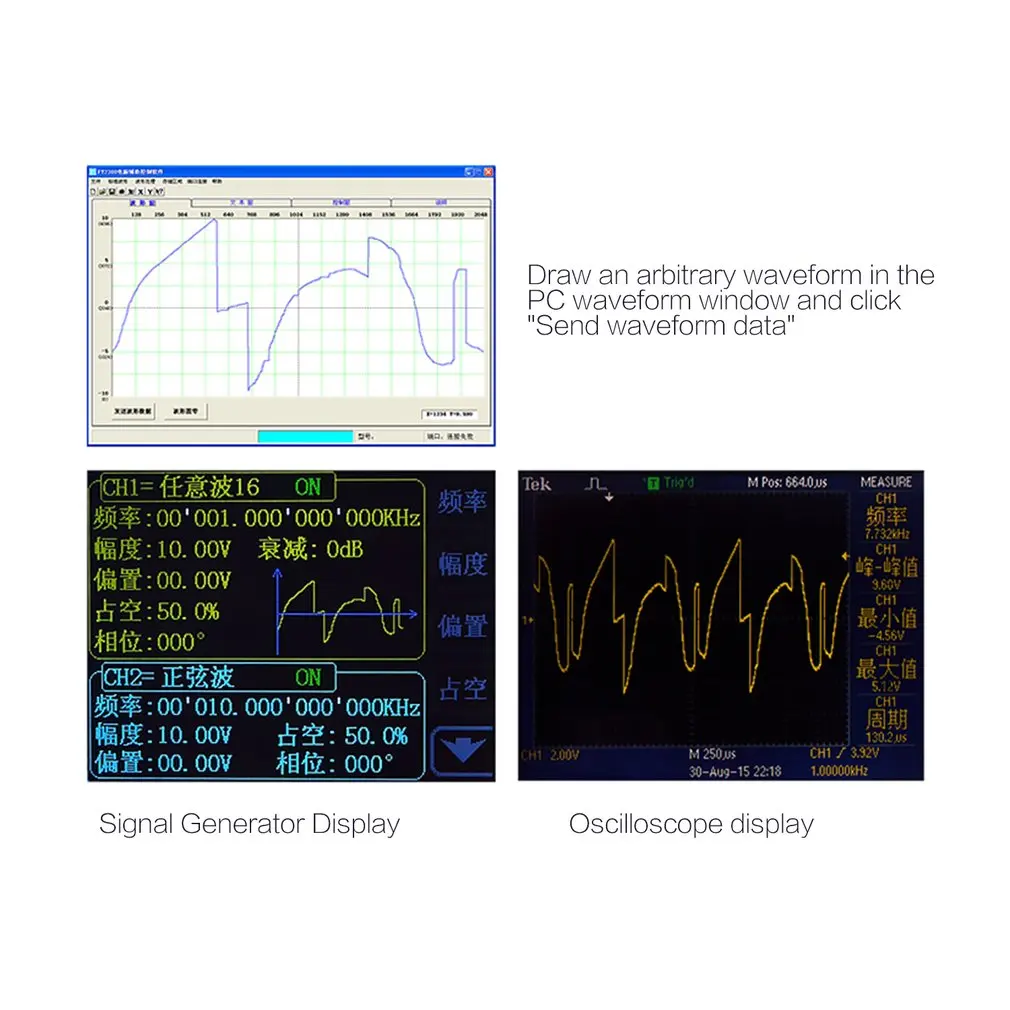

| Arbitrary Waveform: | 0Hz~6MHz(Except the 2MHz Model) |
| Bias Adjustment Range: | (+/-)10V |
| Bias Resolution: | 0.01V |
| Brand: | FellTech |
| Brand Name: | ACEHE |
| Communication rate: | 9600bps |
| Counting: | Manually |
| Counting range: | 0~4294967295 |
| Distortion: | <0.8%(20Hz~20KHz, 0dBm) |
| DIY Supplies: | Electrical |
| Duty cycle adjustment range: | 0.1%~99.9% |
| Environment temperature: | 0~40°C |
| Fan-out: | >20 TTL Load |
| Frequency Error: | (+/-)5*10^(-6) |
| Frequency Measuring Range: | GATE-TIME=1S 1Hz - 60MHz |
| Frequency Scan Range: | It is determined by the sweep parameter settings |
| Frequency Setting Range: | Start Point and End Point can be set freely |
| Frequency stability: | (+/-)1*10^(-6)/3 Hours |
| Harmonic Arrived System: | ≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz) |
| High Level: | 1V~10V |
| Input voltage range: | 0.7Vpp~20Vpp |
| Interface mode: | Using USB to Serial Interface |
| Level Amplitude: | >3Vpp |
| Level Rise/Down Time: | ≤20ns |
| Lifting Along Time: | ≤20ns |
| Linearity: | ≥98% (0.01Hz~10KHz) |
| Location: | M0~M19 |
| Low level: | <0.3V |
| Model: | FY2300 |
| Model Number: | FY2300 |
| Output Impedance: | 50Ω(+/-10%) (Typical) |
| Overshoot: | ≤7.5% |
| Package Size: | 140x90x50mm/5.46x3.51x1.95in |
| Periodic Measurement: | 20ns Resolution, the Max. Measurable 40s |
| Phase Adjustment Range: | 0~359° |
| Phase Resolution: | 1° |
| Plug: | US/EU(optional) |
| Protocol: | Using the Command Line, the Agreement Public |
| quantity: | 20 |
| Sampling Rate: | 200MSa/s |
| Sawtooth wave: | 0Hz~6MHz(Except the 2MHz Model) |
| Scan mode: | Linear Sweep, Log Sweep |
| Scan Object: | Frequency, Amplitude, Bias and Duty Cycle |
| Scan time: | 0.01s-999.99S/Step |
| Sine wave: | 0Hz~6MHz |

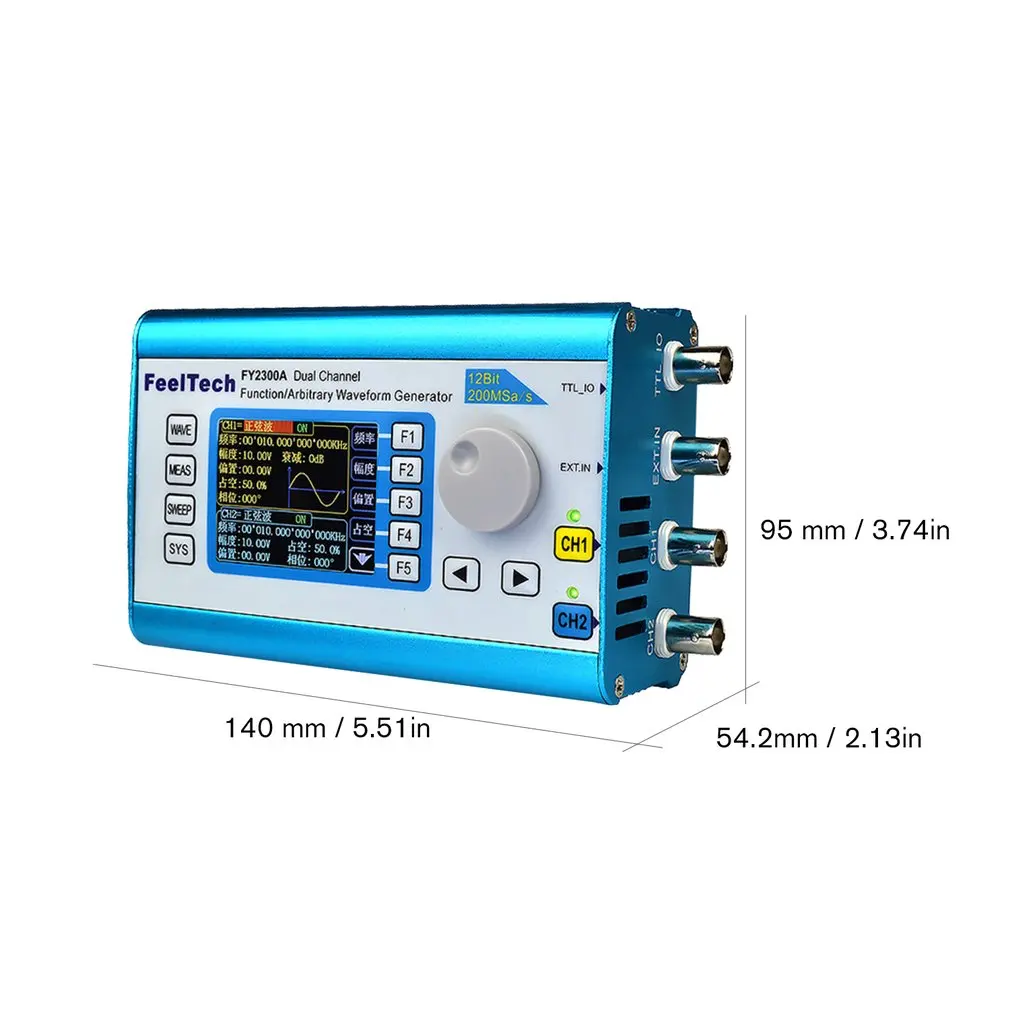

| Size: | 140 x 95 x 54.2mm / 5.51 x 3.74 x 2.13in |
| Square Wave: | 0Hz~6MHz(Except the 2MHz Model) |
| The Min. Frequency Resolution: | 1μHz(0.000001Hz) |
| Triangle wave: | 0Hz~6MHz(Except the 2MHz Model) |
| TTL digital signal wave: | 0Hz~6MHz(Except the 2MHz Model) |
| Vertical resolution: | 12 Bits |
| Voltage Range: | DC 5V (+/-0.5V) |
| Waveform length: | 2048Points |
