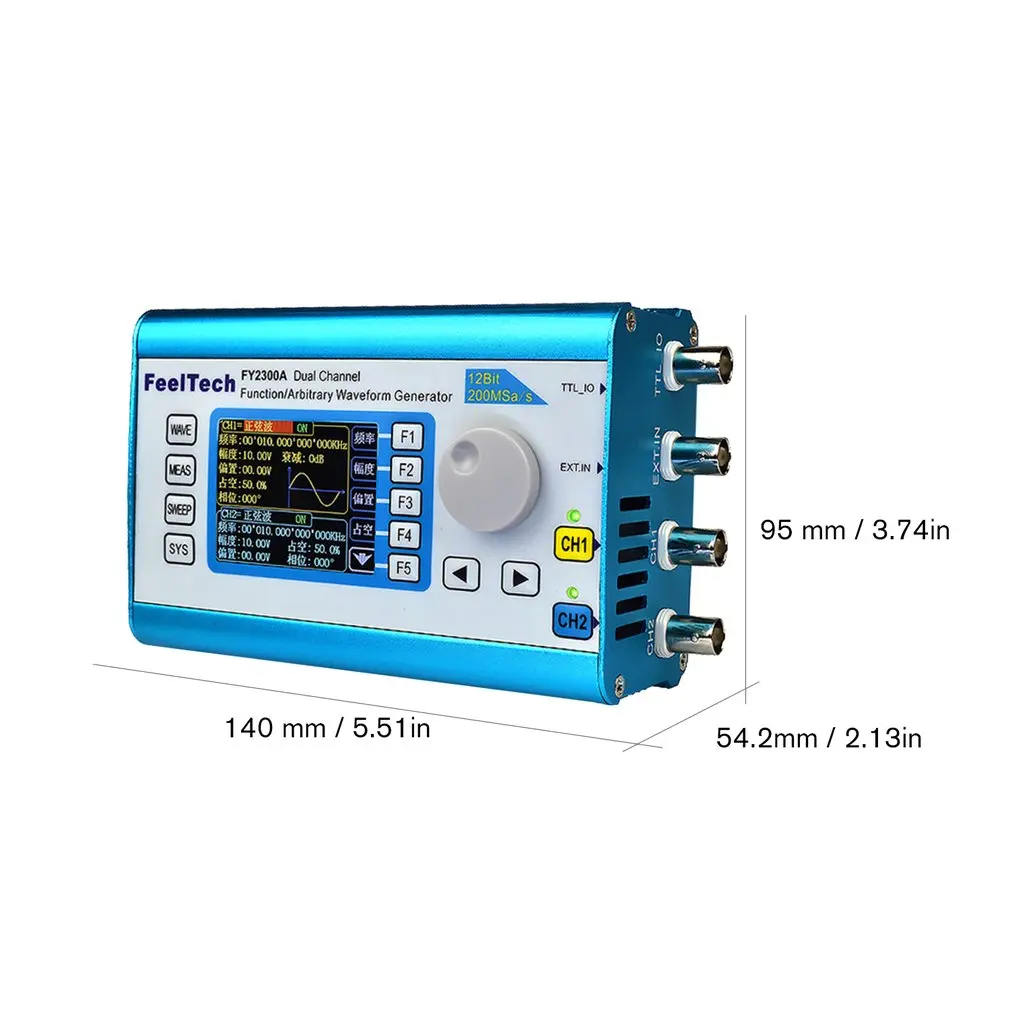

Digital DDS Dual-channel Signal Generator Arbitrary Waveform Function 200MSa/s 20MHz Frequency Meter US/EU Plug
sku: 4000171343079
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$63.18
Shipping from: China
Technical Details
| Arbitrary Waveform: | 0Hz~6MHz(Except the 2MHz Model) |
| Brand: | FellTech |
| Brand Name: | ACEHE |
| Distortion: | <0.8%(20Hz~20KHz, 0dBm) |
| DIY Supplies: | Electrical |
| Duty cycle adjustment range: | 0.1%~99.9% |
| Fan-out: | >20 TTL Load |
| Frequency Error: | (+/-)5*10^(-6) |
| Frequency stability: | (+/-)1*10^(-6)/3 Hours |
| Harmonic Arrived System: | ≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz) |
| High Level: | 1V~10V |
| Level Amplitude: | >3Vpp |
| Level Rise/Down Time: | ≤20ns |
| Lifting Along Time: | ≤20ns |
| Linearity: | ≥98% (0.01Hz~10KHz) |
| Low level: | <0.3V |
| Model: | FY2300 |
| Model Number: | FY2300 |
| Overshoot: | ≤7.5% |
| Phase Adjustment Range: | 0~359° |
| Phase Resolution: | 1° |

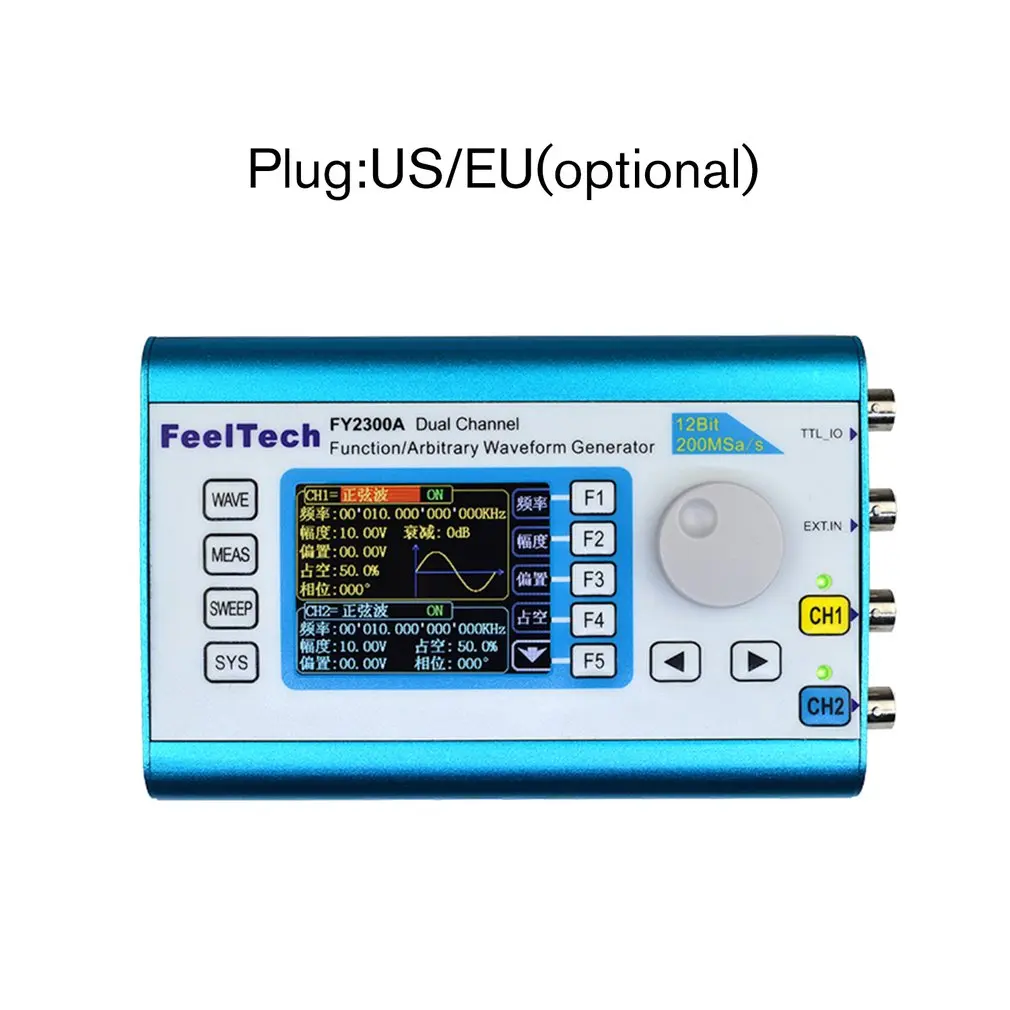

| Plug: | US/EU(optional) |
| Pulse Width Adjusting Range: | 10nS~1S |
| Sampling Rate: | 200MSa/s |
| Sawtooth wave: | 0Hz~6MHz(Except the 2MHz Model) |
| Sine wave: | 0Hz~20MHz |
| Square Wave: | 0Hz~6MHz(Except the 2MHz Model) |
| The Min Frequency Resolution: | 1μHz(0.000001Hz) |
| Triangle wave: | 0Hz~6MHz(Except the 2MHz Model) |
| TTL digital signal wave: | 0Hz~6MHz(Except the 2MHz Model) |
| Vertical resolution: | 12 Bits |
| Waveform length: | 2048Points |
| Waveform types: | Please look at the Detail Page |
