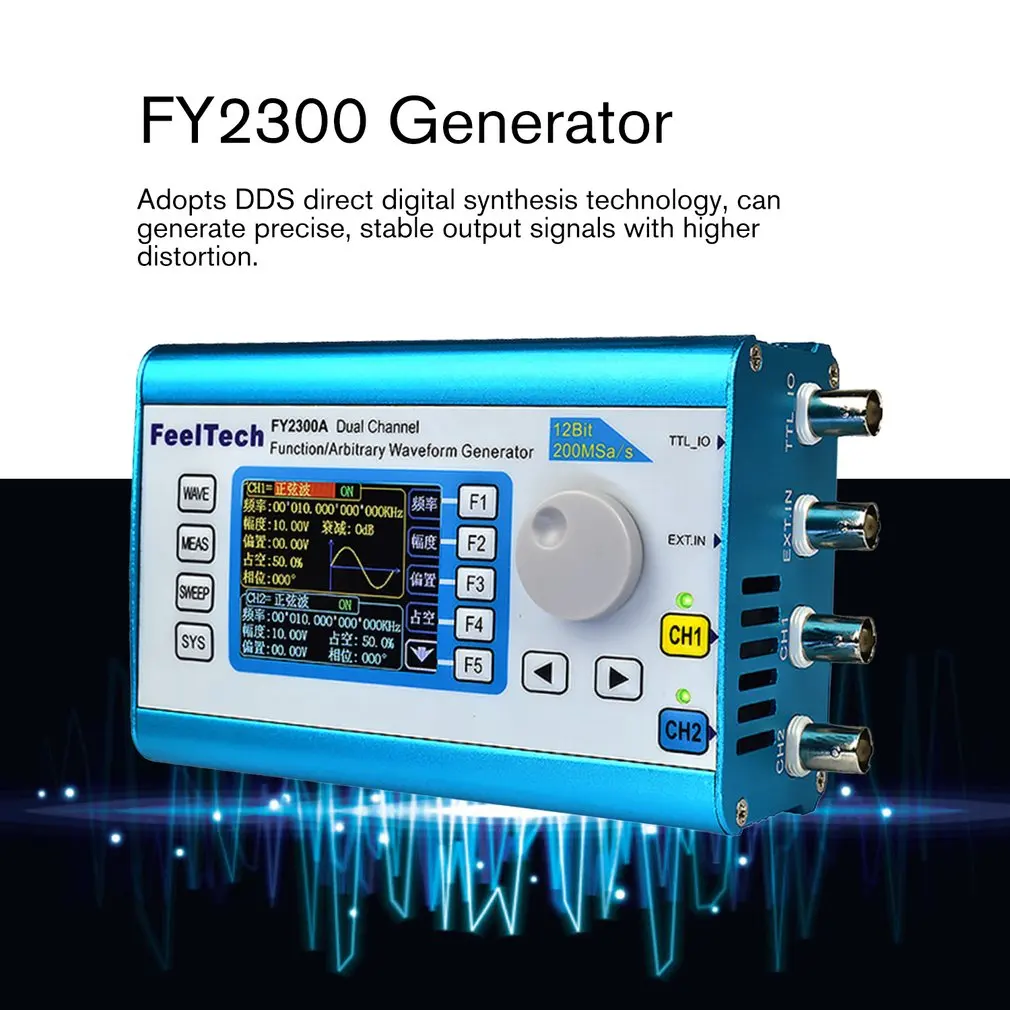

Digital DDS Dual-channel Signal Generator Arbitrary Waveform Function 200MSa/s 12MHz Frequency Meter
sku: 4000236014174
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$91.27
Shipping from: China
Technical Details
| Arbitrary Waveform: | 0Hz~6MHz(Except the 2MHz Model) |
| Brand: | FellTech |
| Distortion: | <0.8%(20Hz~20KHz, 0dBm)Square Wave |
| Duty cycle adjustment range: | 0.1%~99.9%Sawtooth Wave |
| Fan-out: | >20 TTL Load CMOS Output |
| Frequency Error: | (+/-)5*10^(-6) |
| Frequency stability: | (+/-)1*10^(-6)/3 Hours |
| Harmonic Arrived System: | ≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz) |
| High Level: | 1V~10V |
| Level Amplitude: | >3Vpp |
| Level Rise/Down Time: | ≤20ns |
| Lifting Along Time: | ≤20ns |
| Linearity: | ≥98% (0.01Hz~10KHz)Pulse Wave |
| Low level: | <0.3V |
| Model: | FY2300 |
| Model Number: | FY2300 |
| Overshoot: | ≤7.5% |
| Phase Adjustment Range: | 0~359° |
| Phase Resolution: | 1° |
| Plug: | US/EU(optional)Frequency Parameters |
| Pulse Width Adjusting Range: | 10nS~1STTL Output |
| Sampling Rate: | 200MSa/s |
| Sawtooth wave: | 0Hz~6MHz(Except the 2MHz Model) |
| Sine wave: | 0Hz~12MHz |
| Square Wave: | 0Hz~6MHz(Except the 2MHz Model) |
| The Min. Frequency Resolution: | 1μHz(0.000001Hz) |
| Triangle wave: | 0Hz~6MHz(Except the 2MHz Model) |
| TTL digital signal wave: | 0Hz~6MHz(Except the 2MHz Model) |
| Type: | Power Tool Parts |
| Vertical resolution: | 12 Bits |
| Waveform length: | 2048Points |
