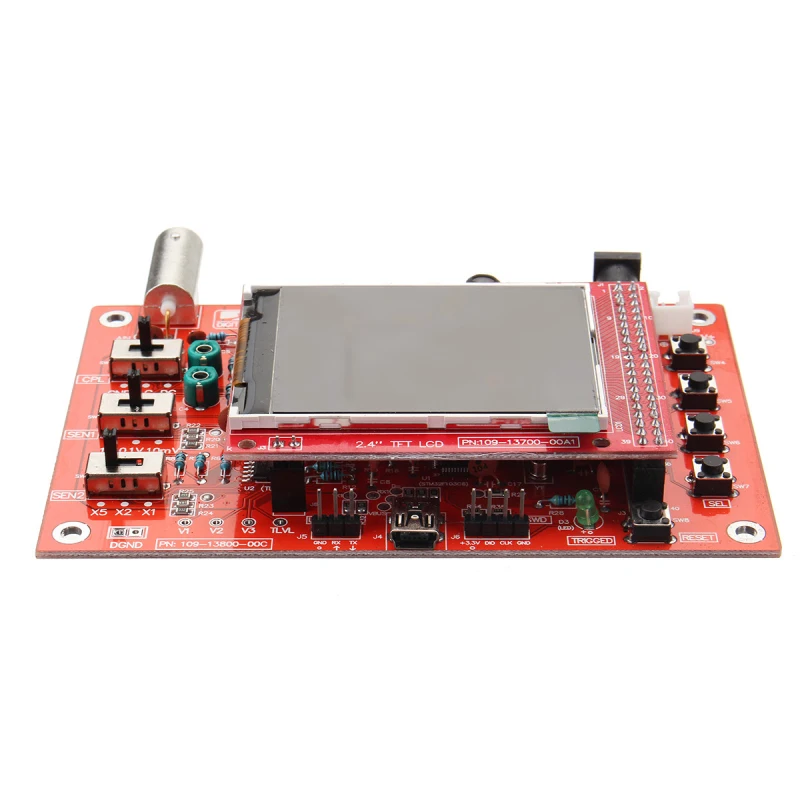

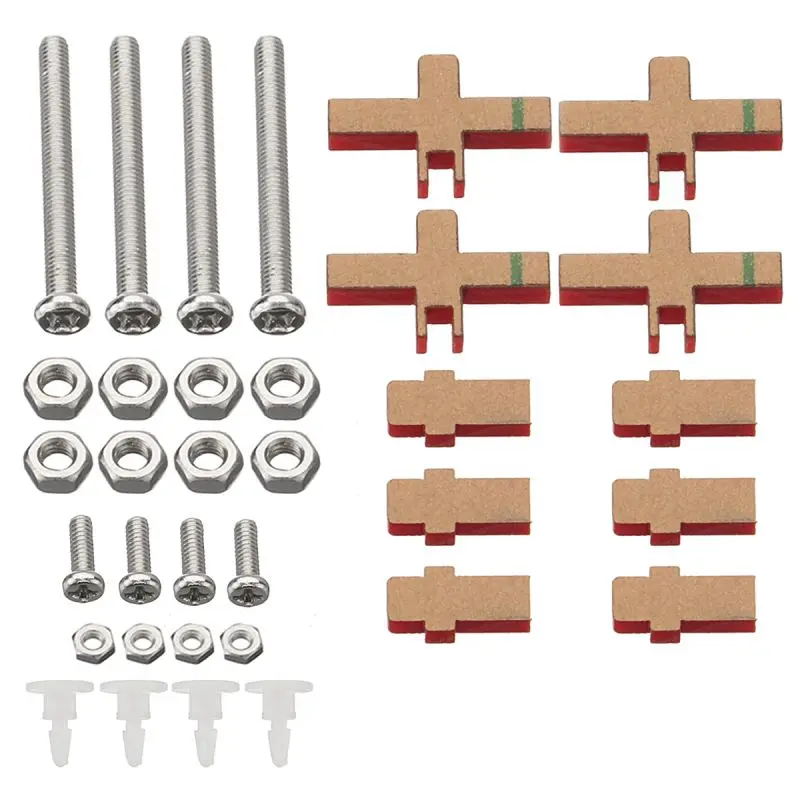

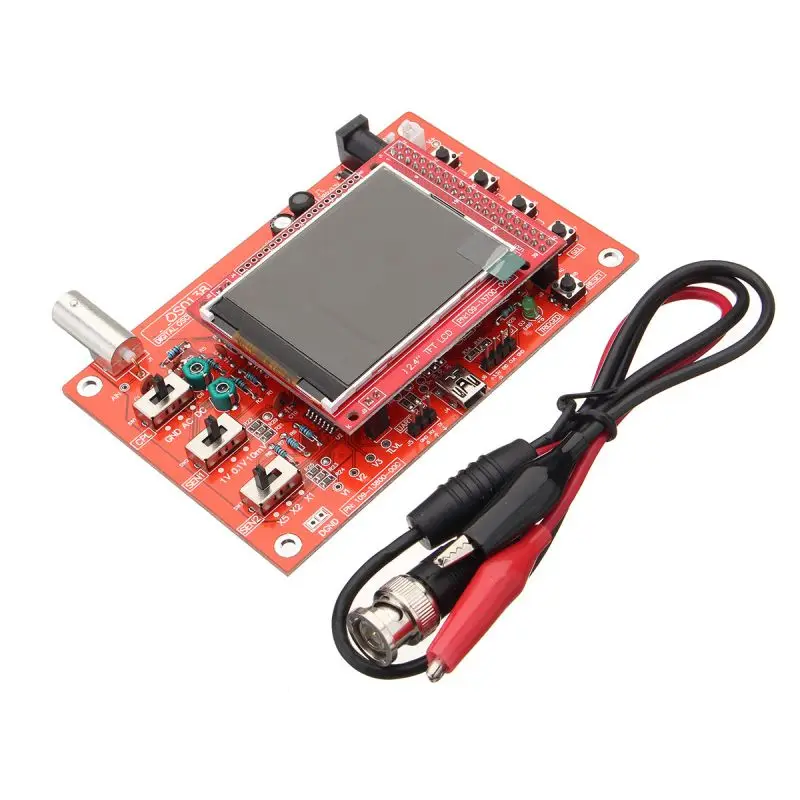

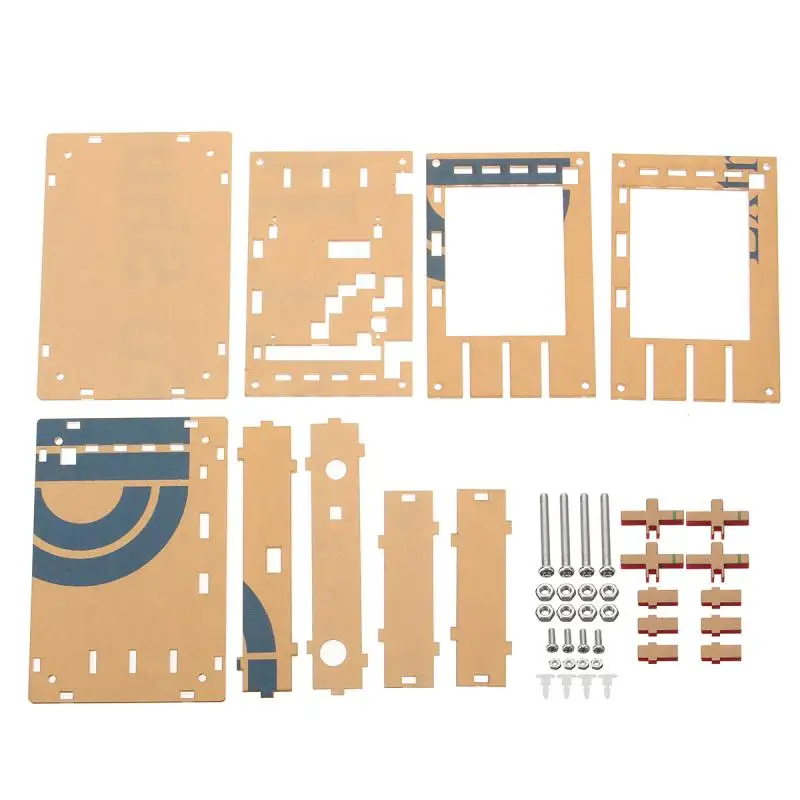

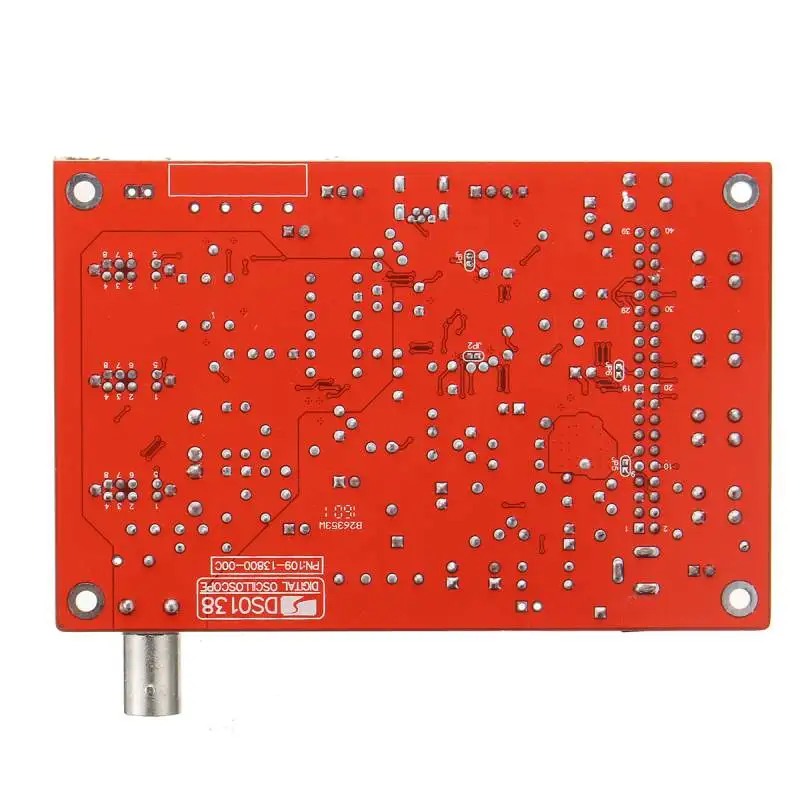

DSO138 2.4" TFT LCD Digital Oscilloscope Kit Acrylic Case DIY Part Cover SMD Set Kit Fully Assembled Open Source 1Msps
sku: 32981092191
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$88.51
Shipping from: China
Technical Details
| Accuracy: | 12Bit |
| Band Width: | 0 - 200KHz |
| Brand Name: | ZEAST |
| Digital Channels: | 1 |
| Display resolution: | 2.4 Inches Screen |
| Display Size: | 3.0 - 4.9 Inches |
| DIY Supplies: | Electrical |
| Input Impedance: | 1MΩ |
| IS Battery Demountable: | Yes |
| Maximum input voltage: | 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) |
| Maximum real-time sampling rate: | 1Msps |
| Max Waveform Capture Rate: | 30,000wfm/s |
| Model Number: | as description |
| Real Time Sampling Rate: | as description |
| Record Length: | as description |
| Sampling buffer depth: | 1024 bytes |
| The horizontal time base range: | 10μs / Div - 50s / Div (1-2-5 progressive manner) |
| Vertical sensitivity: | 10mV / Div - 5V / Div (1-2-5 progressive manner) |
