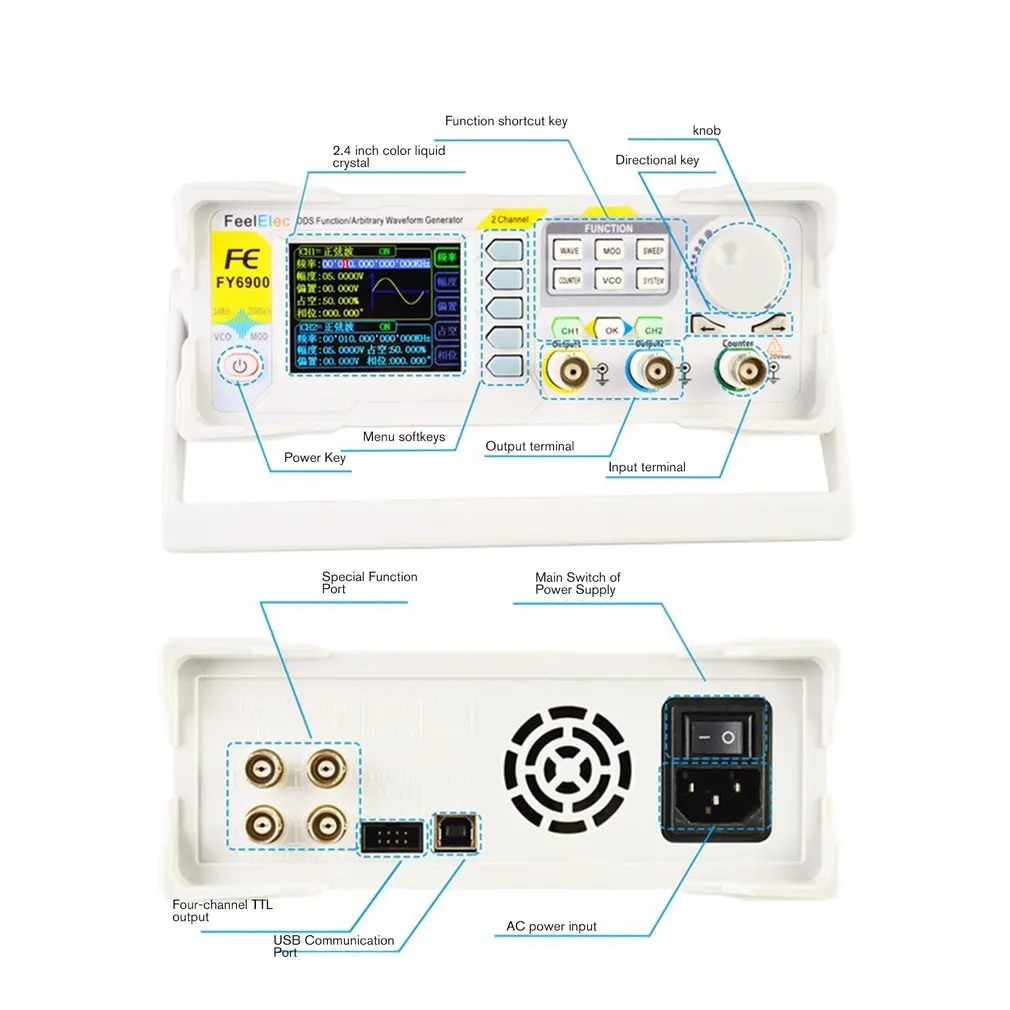

DDS Dual-channel Digital Function Arbitrary Waveform Signal Generator 250MSa/s 60MHz 14bits Frequency Meter
sku: 4000253255895
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$97.66
Shipping from: China
Technical Details
| Amplitude Flatness: | (+/-)5%(<10MHz); (+/-)10%(>10MHz) |
| Amplitude resolution: | 1mV |
| Amplitude Stability: | (+/-)0.5%/5 Hours |
| Arbitrary wave frequency range: | 0~10MHz |
| Arbitrary Wave Non-volatile Storage: | 64 user-defined arbitrary waveforms can be stored |
| Bias Resolution: | 0.01V |
| Brand: | FellTech |
| Brand Name: | ACEHE |
| Communication rate: | 115200bps |
| Counting: | Manually |
| Counting range: | 0~4294967295 |
| Display Type: | 2.4" TFT Color Display |
| Distortion: | <0.5%(20Hz~20KHz, 0dBm) |
| DIY Supplies: | Electrical |
| Duty cycle adjustment range: | 0.1%~99.9% |
| Environment temperature: | 0~40°C |
| Fan-out: | >8 TTL Load |
| Frequency>20MHz: | ±2.5V |
| Frequency Error: | (+/-)20ppm |

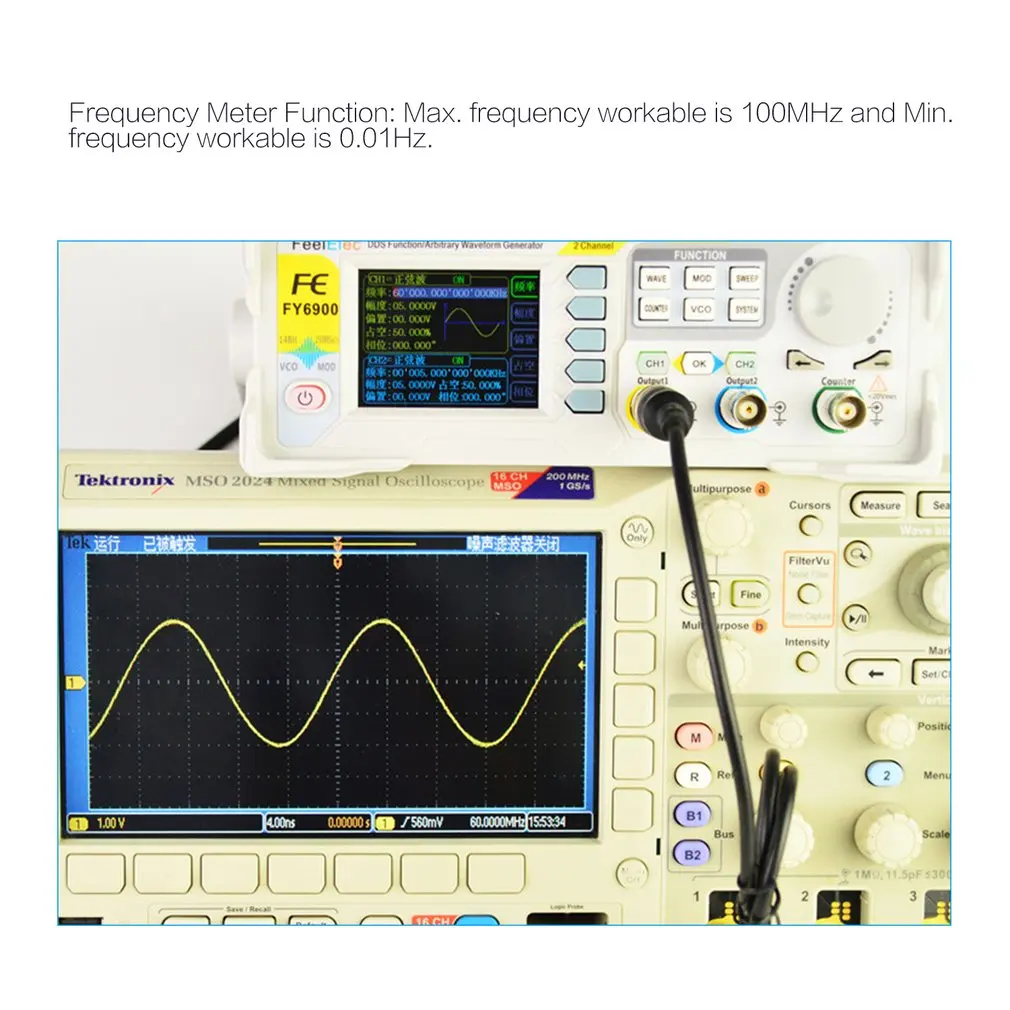

| Frequency Measuring Range: | GATE-TIME=1S 1Hz - 60MHz |
| Frequency Scan Range: | It is determined by the sweep parameter settings |
| Frequency Setting Range: | Start Point and End Point can be set freely |
| Frequency stability: | (+/-)1ppm/3 Hours |
| Harmonic Arrived System: | ≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz) |
| High Level: | 1V~12V |
| Input voltage range: | 2Vpp~20Vpp |
| Interface mode: | Using USB to Serial Interface |
| Level Amplitude: | >3Vpp |
| Level Rise/Down Time: | ≤18ns |
| Lifting Along Time: | ≤7ns(VPP<5V) |
| Linearity: | ≥98% (0.01Hz~10KHz) |
| Location: | M0~M20 |
| Low level: | <0.3V |
| MHz10MHzFrequency>20MHz: | 1mVpp- 5Vpp |
| Model: | FY6900 |
| Output Impedance: | 50Ω(+/-10%) (Typical) |
| Overshoot: | ≤5% |
| Periodic Measurement: | 20ns Resolution, the Max. Measurable 40s |
| Phase Adjustment Range: | 0~359.99° |
| Phase Resolution: | 0.01° |

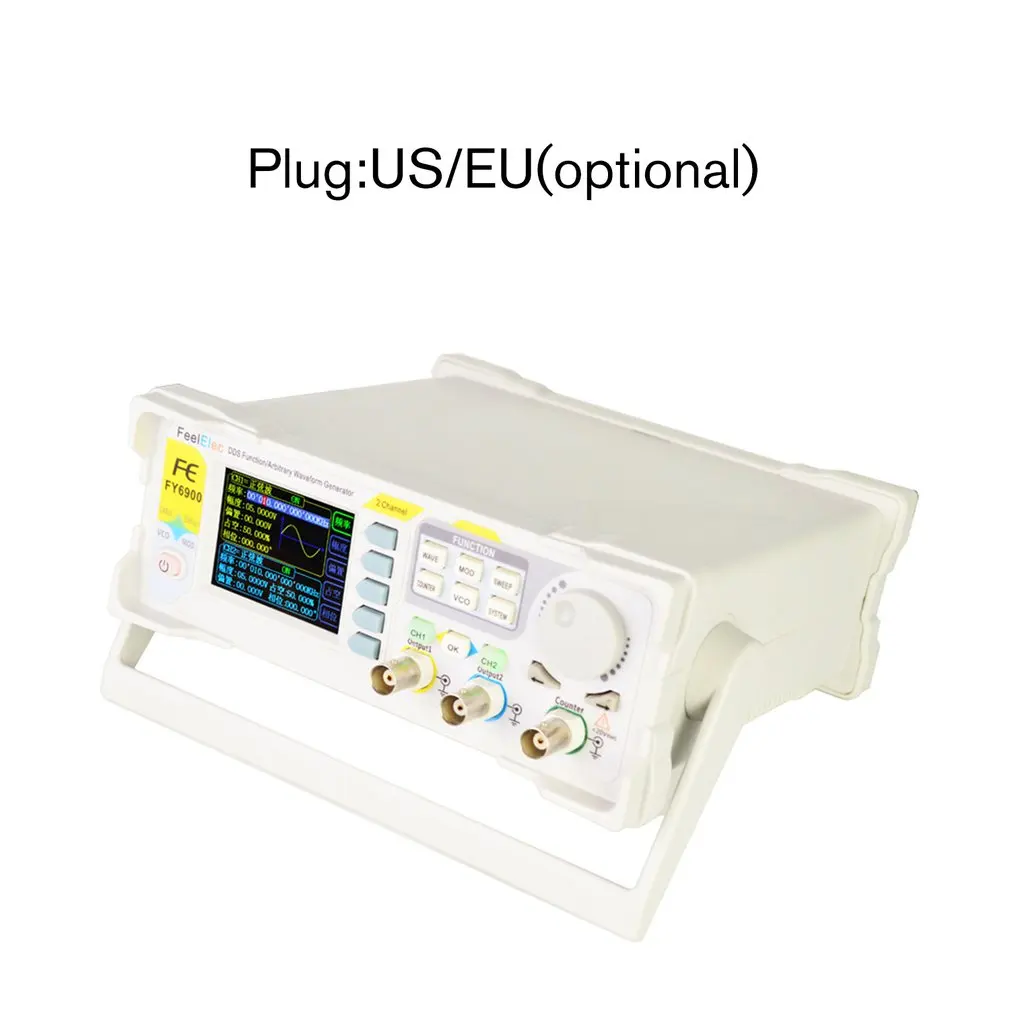

| Plug: | US/EU(optional) |
| Protocol: | Using the Command Line, the Agreement Public |
| Pulse wave minimum adjustment width: | 20ns |
| Pulse Width Adjusting Range: | 10nS~1S |
| quantity: | 20 |
| Sampling Rate: | 250MSa/s |
| Sawtooth wave: | 0Hz~10MHz |
| Scan mode: | Linear Sweep, Log Sweep |
| Scan Object: | Frequency, Amplitude, Bias and Duty Cycle |
| Scan time: | 0.01s-999.99S/Step |
| Sine wave: | 0Hz~60MHz |

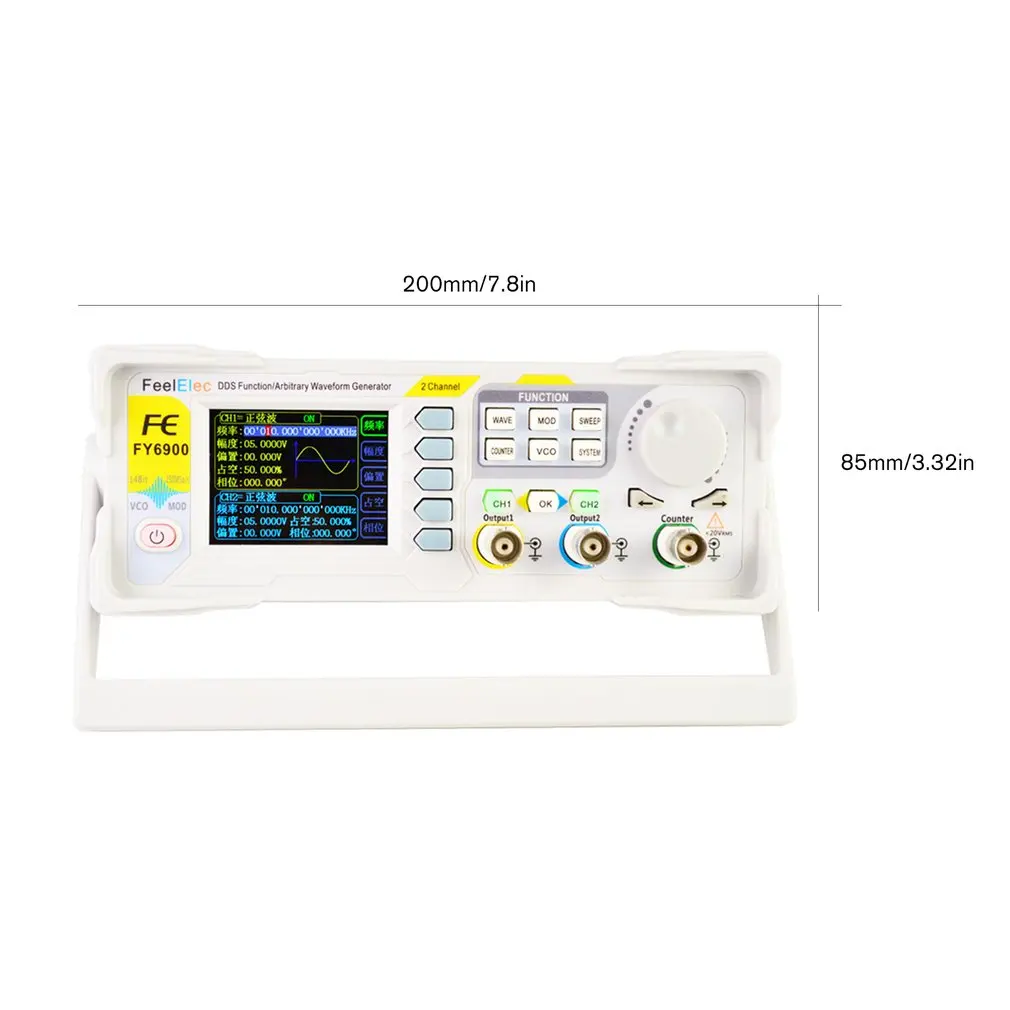

| Size: | 200x190x85mm/7.8x7.41x3.32in |
| Square Wave: | 0Hz~25MHz |
| The Min. Frequency Resolution: | 1μHz(0.000001Hz) |
| Triangle wave: | 0Hz~10MHz |
| TTL/CMOS digital wave range: | 0~20MHz |
| Vertical resolution: | 14 Bits |
| Voltage Range: | AC 100~240V |
| Waveform length: | 8192Points(4K Points)x14Bits |
