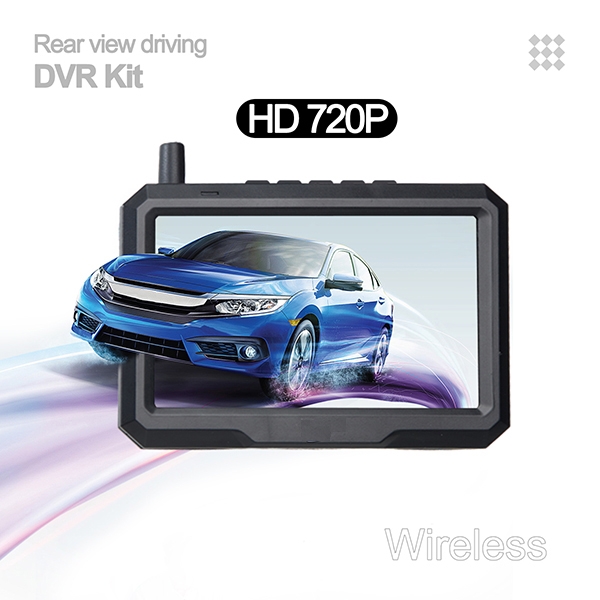

CS12F9 5 inch IP69K Waterproof Car Digital Wireless Rear-view Monitor, Support Dual-channel Recording / Online Playback

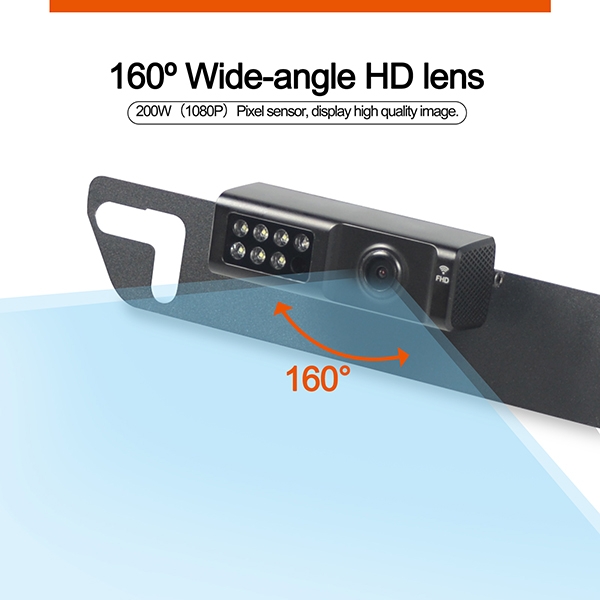

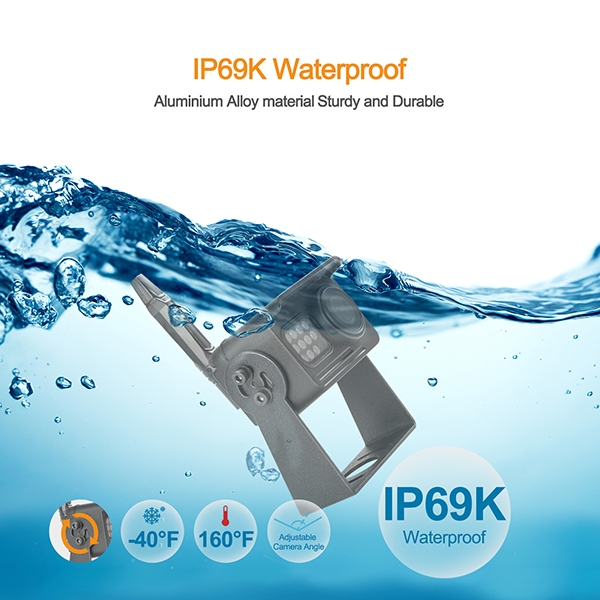

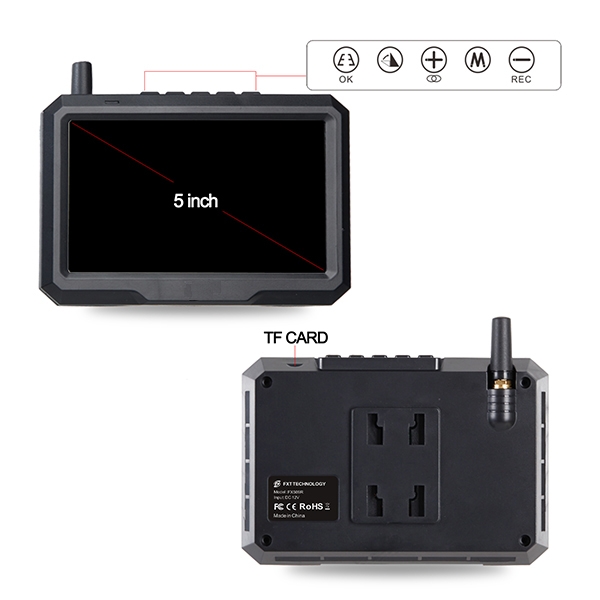

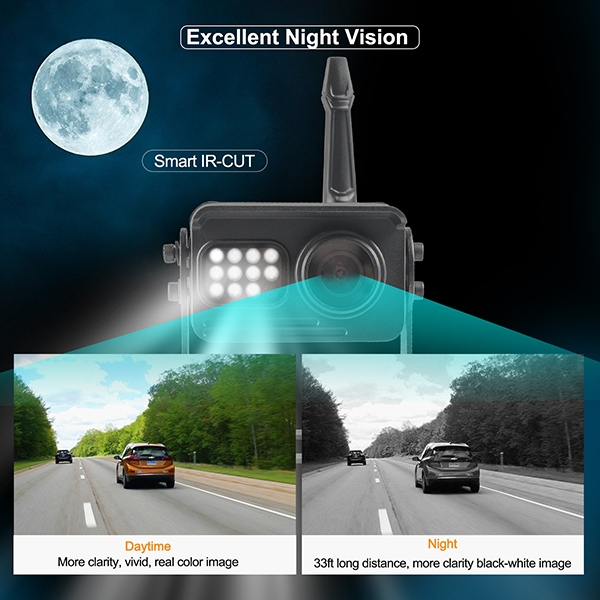

1. 5-inch display, 500CD/square meter brightness, resolution: 800x480, support dual-channel recording and online playback 2. IP69K waterproof 3. 16DBM transmit power, receive sensitivity -90DBM 4. 12-36V supply voltage 5. 160-degree wide-angle camera, 720P pixels 6. Super night vision, 11 infrared lights, 10M range, support RI-CUT 7. Display parameters: - LCD size: 5 inches - Resolution: 800x3(RGB)x480 - Brightness: 500 CD/square meter - TV system: PAL/NTSC - Transmission power: 24+/-1dBm max - Operating frequency: 2.4GHz-2.4835GHz - RX Sensitivity: -85dBm@10%PER - Spread Spectrum: FHSS - Video compression: H.264 - Latency: 160ms - Transmission distance: 984ft - Power supply: DC12-24V - TF card: 128g max (not included) - Operating temperature: -20~70 degrees Celsius - Storage temperature: -30~80 degrees Celsius - Dimensions: 132.5x89.5x22.5mm 8. Camera (FX922) parameters: - Sensor: 1/2.7 inch COMS HD - Angle: 160 degrees - Operating frequency: 2.4GHz-2.4835GHz - Transmission distance: 300m - Transmission power: 23dB - Latency: less than 200ms - RF bit rate: 12Mbps - Lumen: 0Lux min. - Night vision distance: 4-5m - Power supply: DC10-18V - Waterproof grade: IP69K - Operating temperature: -20~70 degrees Celsius - Storage temperature: -30~80 degrees Celsius - Dimensions: 85x28x25.5mm 9. Camera (FX909) parameters: - Operating frequency: 2.4GHz-2.4835GHz - Power supply: DC12-32V - Power: 150mA/12V - Latency: less than 200ms - Picture sensor: 1/2.7 inch HD - Angle: 120 degrees - IR Control: Built-in IR-CUT - Waterproof grade: IP69K - Operating temperature: -40~70 degrees Celsius - Storage temperature: -40~80 degrees Celsius - Dimensions: 78x64x50mm
