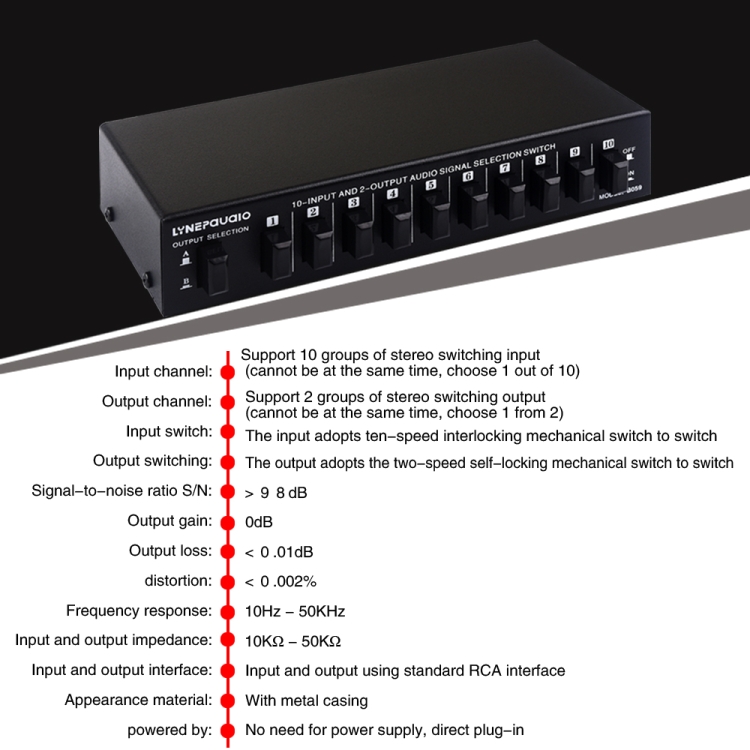

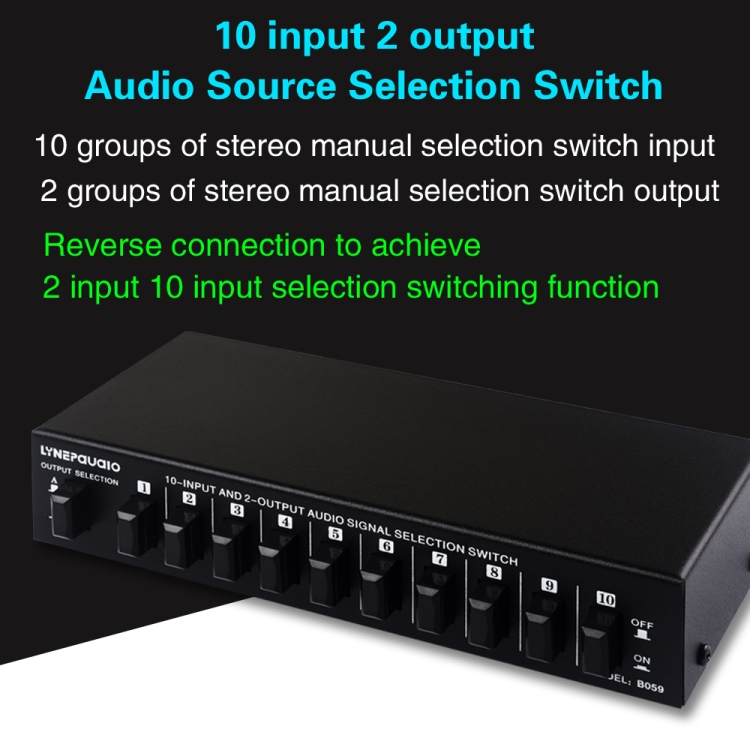

B059 10 In 2 Out / 2 In 10 Out 2-Way RCA Switch Audio Frequency Signal Select Shift Device Loudspeaker Box

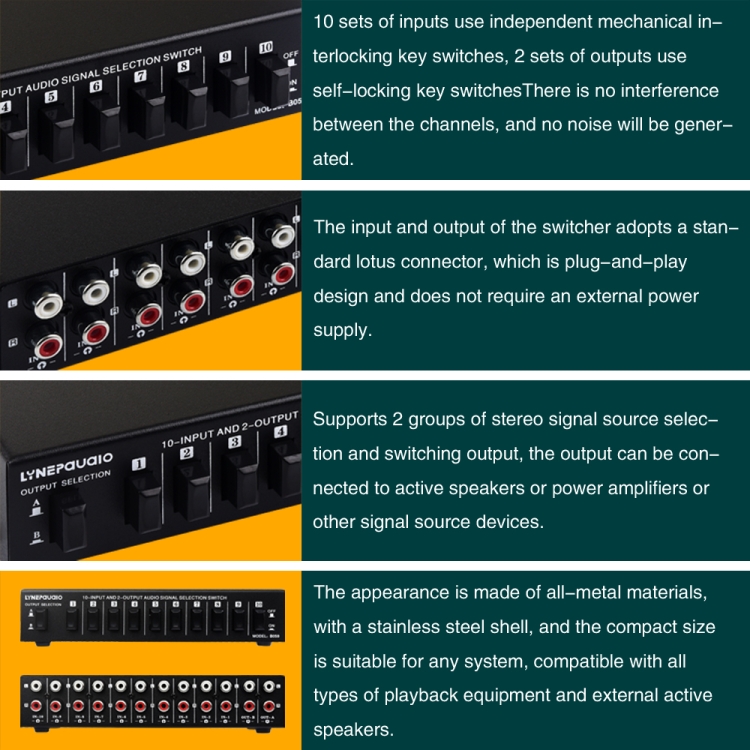

Do you have trouble at that how to connect 10 sets stereophonic signal source and 2 sets output equipment?Do you have trouble at that how to connect 2 sets stereophonic signal source and 10 sets output equipment?One strong stereophonic shift distribute device able to solve the problems that multiply equipment plug in and out, double way use.1. 10 sets stereophonic input adopt 10 gears mechanical switch manually shift, gears switch will not generate burst sound when shifting2. 2 sets output switch shift, 2 sets output can’t be output at the same time.3. Simple installation: input and output, able to be used once inserted, convenient to install, signal source non consumption shift, then can enjoy different hearing experience4. Mainly used to select and shift various stereophonic signal input mutually use to output one set or multiply sets equipment, example there has multiply stereophonic signal source (TV audio frequency, MP3 player, CD player, video game, mobile phone, PAD, computer, gramophone) and other equipment need output to power amplifier or source loudspeaker box.5. 10 sets audio frequency signal select shift device solve the complex circuit plug in and out operation, unify connect the equipment signal source which need input to the shift device then easily convenient to select.6. This product able to realize two operating methods, 10 input 2 output, reversely wiring realize 2 input 10 output, double ways use.Product Parameter:1. Material: metal2. Color: Black3. Interface: RCA interface4. Power supply: No need additionally connect power supply, able to be used once inserted5. Input and output impedance: 10K ohms - 50K ohms6. Frequency responding: 20 - 20kHz7. Distortion: Less than 0.002%8. Output consumption: Less than 0.01dB9. Signal gain: 0dB10. Signal-noise ratio S/N: Greater than 98dB11. Input and output interface: Standard RCA interface12. Input passageway quantity: 10 ways stereophonic select and shift input13. Output passageway quantity: 2 ways stereophonic select and shift output (Can not output at the same time, select 1 in 2 to output)14. Control switch: 10 gears shift switch and 1 set switch, accurately select the manually shift switch15. Input select shift passageway: 10 passageways16. Output select shift passageway: 2 passageways17. Single product net weight: 0.54 kg18. Product size: length 192mm x width 91mm x height 38mm
