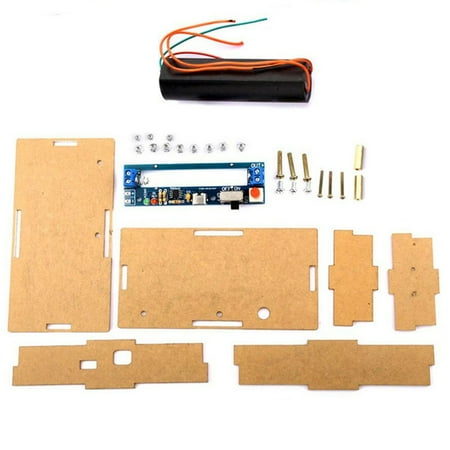

Ana 3.6-6V to 1000KV DC high voltage generator booster board inverter module

Specification: *Input voltage: DC3.6-6V red positive pole green negative pole do not connect connection may burn the module *Input current: 2A-5A (related to voltage) *High voltage type: pulse high and low voltage integrated type *Output voltage: about 500KV-1000KV (please pay attention to safety when using) *High voltage bipolar discharge distance: 10-20mm *Output high voltage voltage line length: about 100mm *Input power cord length: about 100mm (red line represents positive pole) feature: The module is divided into input and output terminals. The red and green wires are the input terminals the red wire is the positive terminal and the green wire is the negative terminal. There are two thick red high-voltage output terminals on the other end which are fixed at an appropriate distance from the high-voltage line terminals. The input terminal can be connected to a battery to generate high-voltage arc; Regarding the input power supply: you can use a single 3.7V lithium battery such as battery idle mobile phone battery (remove the protective plate the recommended capacity is more than 2000mAh) or nickel-cadmium/nickel-metal hydride battery pack lead-acid battery etc. Precautions for using the module: 1. The high-voltage module should avoid being powered on when the high-voltage is no-load. The appropriate distance between the ends of high-voltage lines must be adjusted before powering on. The arcing distance of high-voltage lines is proportional to the voltage and capacity of the battery used. 2. When testing the arc distance the experiment should be conducted from short to long. It is strictly prohibited to exceed the maximum arcing distance when energizing. Since the high-voltage energy cannot be released the module can be easily damaged. 3. The module has high power and is not suitable for internal heat dissipation and cannot run for a long time. Each working time is 3-5 seconds. 4. The way to judge whether the battery capacity can drive the maximum output power is to measure the battery voltage during arcing. If it is around 6V the maximum power output can be achieved. 5. Small-capacity lithium batteries are connected in series the voltage is 3.7V and the measured voltage has dropped to about 2V in the arcing state. The smaller the capacity the lower the voltage. Therefore it is recommended to use lithium batteries with a capacity of more than 2000MA. If possible it is best to use batteries with a capacity of more than 4000MA. packing list: 1. 1000KV high voltage package * 1 2. Acrylic shell * 1 set 3. Charge and discharge control board * 1 4. M3 * 16 screws * 3 5. M3 nut * 8
