5pcs Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module With LCD Display 1Hz-160Khz 4V-30V 5mA-30mA
Description
Instructions: - The single PWM generator has only one set of PWM1 outputs and the frequency and duty cycle are independently adjustable. Two-way complementary PWM has two sets of PWM1 and PWM2 outputs. The two sets of frequencies have the same frequency and their duty cycles are complementary. Specifications: - Adjustable frequency 1-160KHz - Duty cycle 0-100% adjustable - Operating voltage: 4V~30V - Frequency range: 1Hz~160KHz - Frequency accuracy: 2% - Signal load capacity: output current 5~30mA - Output amplitude: The amplitude is equal to the working voltage. - Duty cycle 0~100% adjustable - PWM output, can set the frequency, duty cycle - The frequency is divided into four ranges, automatically switching: 1.XXX (no decimal point): 1Hz~999Hz, unit 1Hz 2.X.XX (decimal point in hundreds): Value is 1.00KHz to 9.99KHz in 0.01KHz 3.XX.X (decimal point in ten digits): The value is 10.0KHz~99.9KHz, the unit is 0.1KHz 4.X.X.X. (full decimal point): Value 100KHz~160KHz, unit 1KHz E.g: 100 represents 100Hz 1.00 means 1.00KHz 10.0 means 10KHz 1.0.0. Represents 100Khz Setting Process: 1. Press the SET button. The frequency parameter flashes. Set the frequency with the UP or DOWN button. 2. Press the SET button. The duty cycle parameter flashes. Set the duty cycle by pressing the UP or DOWN keys. 3. Press the SET button to exit the setting 4. Long press the UP and DOWN keys to quickly increase or decrease 5. The data is automatically memorized and all setting parameters are saved when power is off. Applications: 1. It is used as a square wave signal generator to generate square wave signals for development and use. 2. Used to generate a square wave signal that drives a stepper motor driver. 3. Generate adjustable pulses for use by the MCU. 4. Produce adjustable pulses to control the associated circuitry. Package Included: 5 x Signal Generator Module With LCD Display
Price history chart & currency exchange rate
Customers also viewed

$18.75
Напольная подставка для зеркала для подставок на полках Woth Держатель фоторамки Деревянная опора
aliexpress.ru
$25.34
Мужские летние кроссовки Fly-Watch — это прочная, легкая сетчатая, дышащая и удобная повседневная обувь, модные мужские кроссовки. 39 чёрный
joom.com
$250.43
80MM DC 24-48V 6Nm rated torque 310RPM speed reducer robot joint module use planetary gear motor DC electric motor
aliexpress.com
$12.70
AU-10X NE5532 Stereo Audio Preamplifier Amp Headphone Amplifier Board Gain 20Db RCA 3.5MM Volume Control EU Plug
aliexpress.com
$15.99
Джинсы осенний Блейзер костюм длинные брюки женские плиссированные модные офисные брюки с высокой талией женские прямые брюки
aliexpress.ru
$519.16
Wide-angle 10x optical zoom wireless omni-directional microphone HD video conference camera
aliexpress.com
$12.56
Стильная сумка-Кроссбоди для воды, стеганая сумка-переноска для бутылок с водой с подъемным ремешком, стильная модная сумочка-тоут
aliexpress.com
$21.94
Ремешок FKMBD для часов Omega X Swatch MoonSwatch, спортивный силиконовый резиновый ремешок 20 мм Seamaster 300 для дайвинга AT150, ремешок для часов с изогнутым концом
aliexpress.ru
$3.55
Purifying Clay Mask Anti-acne Oil Control Mud Mask Moisturizing Gentle Face Cleaning Mask Face Care Face Mask Blackhead Remover
aliexpress.com
$2.07
Men Hip Hop Streetwear Fashion Washed T-Shirt Anime Graphic Tshirt Harajuku Cotton Casual Tops Summer Short Sleeve Vintage Tees
aliexpress.ru
$57.30
0445120067 0986435549 04290987 20798683 New -Diesel Fuel Injector for VOLVO EC210 EC210B for Deutz KHD
aliexpress.com
$40.00
260MM Motorcycle Front Brake Disc Rotor For SUZUKI AN650 Skywave Burgman 2004 - 2015 2005 2006 2007 2008 2010 2011 2012 2013 14
aliexpress.com
$3.44
Натуральная помада для бровей, водостойкая помада для бровей, усилитель для бровей, макияж глаз, коричневый, серый, коричневый крем для бров...
aliexpress.ru
$76.79
canvas totes bag designer shoulder bags women hobos handbag large capacity crossbody vintage latch cross body fashion wallet brown letters h
dhgate.com
$82.50

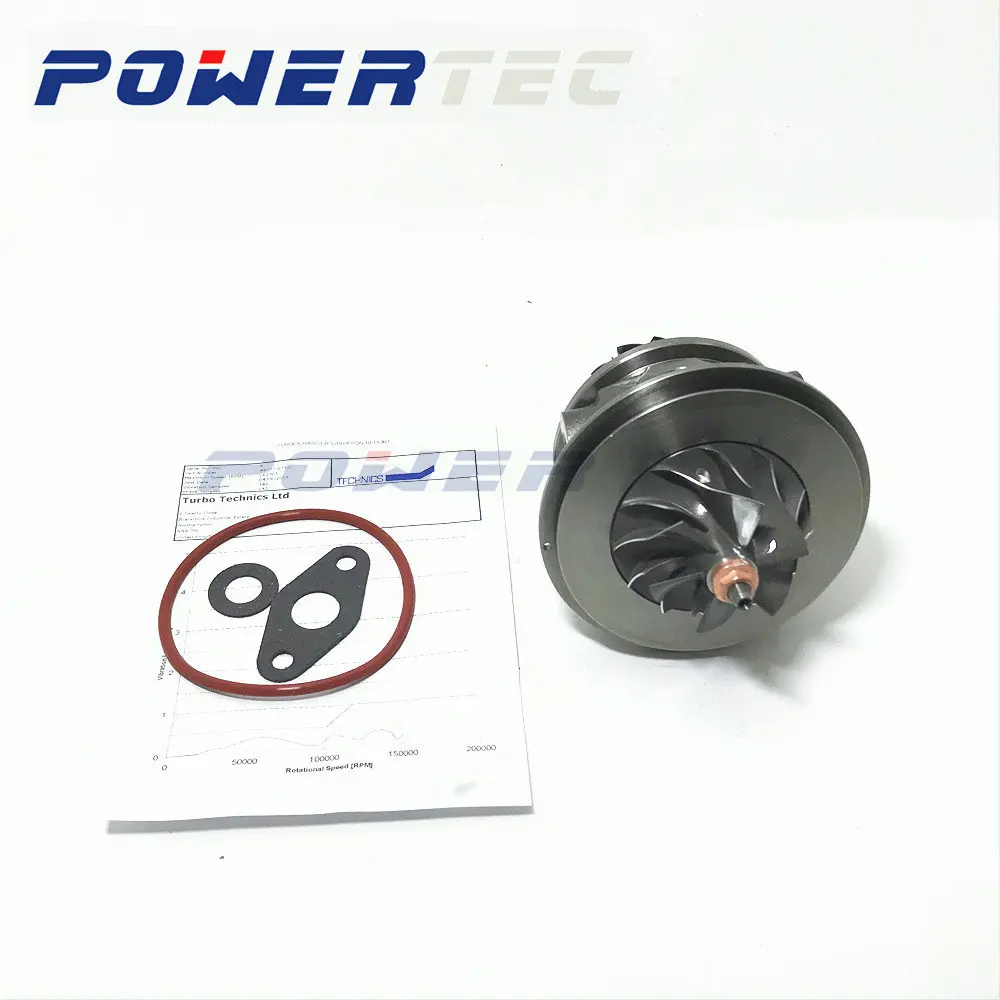

Турбо TD04L CHRA картридж новый core 49377-07313 для Renault Espace III Megane II Scenic II 2,0 T 16V F4R774 165 HP 2004-
