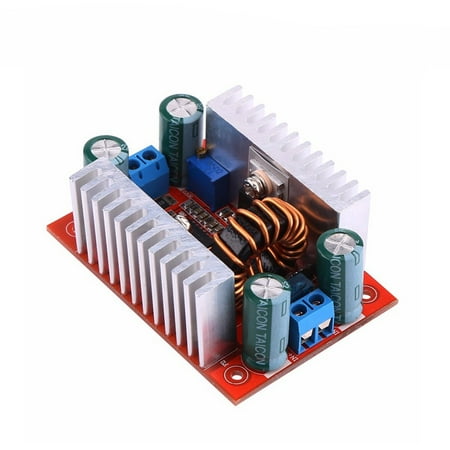

400W 15A DC-DC high power boost power supply module Voltage Regulator Converter

Application range: 1. DIY a regulated power supply the input is 12V and the output can be adjusted from 12-50V. 2. Power supply for your electronic equipment you can set the output value according to your system voltage. 3. As a car power supply power supply for your notebook computer PDA or various digital products. 4. DIY a high-power notebook mobile power supply: equipped with a large-capacity 12V lithium battery pack so that your notebooks can be illuminated wherever you go. 5. Solar panel voltage stabilization. 6. Charge batteries lithium batteries etc. 7. Drive high-power LED lights. Specification 【Module name】400W boost constant current module [Module properties]: non-isolated boost module (BOOST) 【Input voltage】: DC8.5V-50V [Input current]: 15A (MAX) more than 8A please strengthen heat dissipation [Static working current]: 10mA (when 12V rises to 20V the higher the output voltage the higher the static current will increase) [Output voltage]: 10-60V continuously adjustable (default output 19V shipment) [Output current]: If 12A MAX exceeds 7A please strengthen the heat dissipation (related to the input and output pressure difference the larger the pressure difference the smaller the output current) 【Constant current range】: 0.2-12A [Output power]: = input voltage*5A such as: input 12V*=60W input 24V*=120W input 36V*=180W input 48V*=240W [Working temperature]: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high) 【Working frequency】: 150KHz [Conversion efficiency]: 96% (efficiency is related to input output voltage current and differential pressure) [Overcurrent Protection]: Yes (The input exceeds 1 the output voltage will be automatically reduced and there is a certain range of error.) [Input reverse connection protection]: None (If you need a higher reverse connection current please connect a diode in series with the input) [Installation method]: 4 2.5mm screw holes 【Wiring method】: Wiring output [module size]: length 67mm width 58mm height 28mm [Module unit weight]: 60 grams Output voltage/current regulation method: 1. Adjust the CV-ADJ potentiometer and set the output voltage to the voltage you need according to your battery or LED. For example the voltage of 10 strings of LEDs is adjusted to 37V. (The anti-clock voltage is increased and the clockwise voltage is decreased) 2. Turn the CC-ADJ potentiometer counterclockwise about 30 turns set the output current to small connect the LED and adjust the RV2 potentiometer to the current you need. For battery charging after the battery is fully discharged connect it to the output and adjust RV2 to the current you need. The more the charging current is the smaller the charging current will be.) (The anti-clock current is adjusted to be smaller and the clockwise current is adjusted to be larger. Please do not adjust the current in a short-circuit manner and the circuit structure of the booster module cannot be adjusted in a short-circuit manner. Packing list: 1*Power Module
