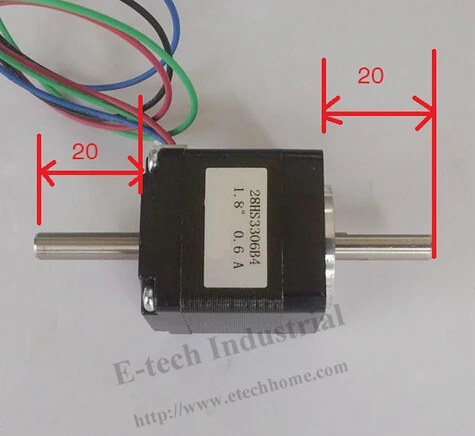

3pcs/lot NEMA 11 Dual Shaft Stepper Motor with 6N.cm 8.3 oz-in Length 33mm CE ROHS CNC Stepping Motor
sku: 32613555881
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$29.94
Shipping from: China
Technical Details
| Ambient Temperature: | -20~+50 C degree |
| Application: | Industrial Machinery |
| Brand Name: | sumtor |
| Certification: | ROHS |
| Current / Phase: | 0.6A |
| Dielectric Strength: | 500VAC/1 minute |
| Frame size: | NEMA 11, 28mm |
| Holding Torque: | 6 N.cm (8.3 oz-in) |
| Inductance Accuracy: | ±20% |
| Insulation Resistance: | 100MΩ Min.500VDC |
| Model Number: | Stepper Motor 28HS3306B4 |
| Phase: | 2 |
| Resistance Accuracy: | ±10% |
| Shape: | square |
| Step Angle Accuracy: | : ±5% |
| Step Angledegrees: | 1.8 |
| Temperature Rise: | 80C Max |
| Type: | Hybrid |
