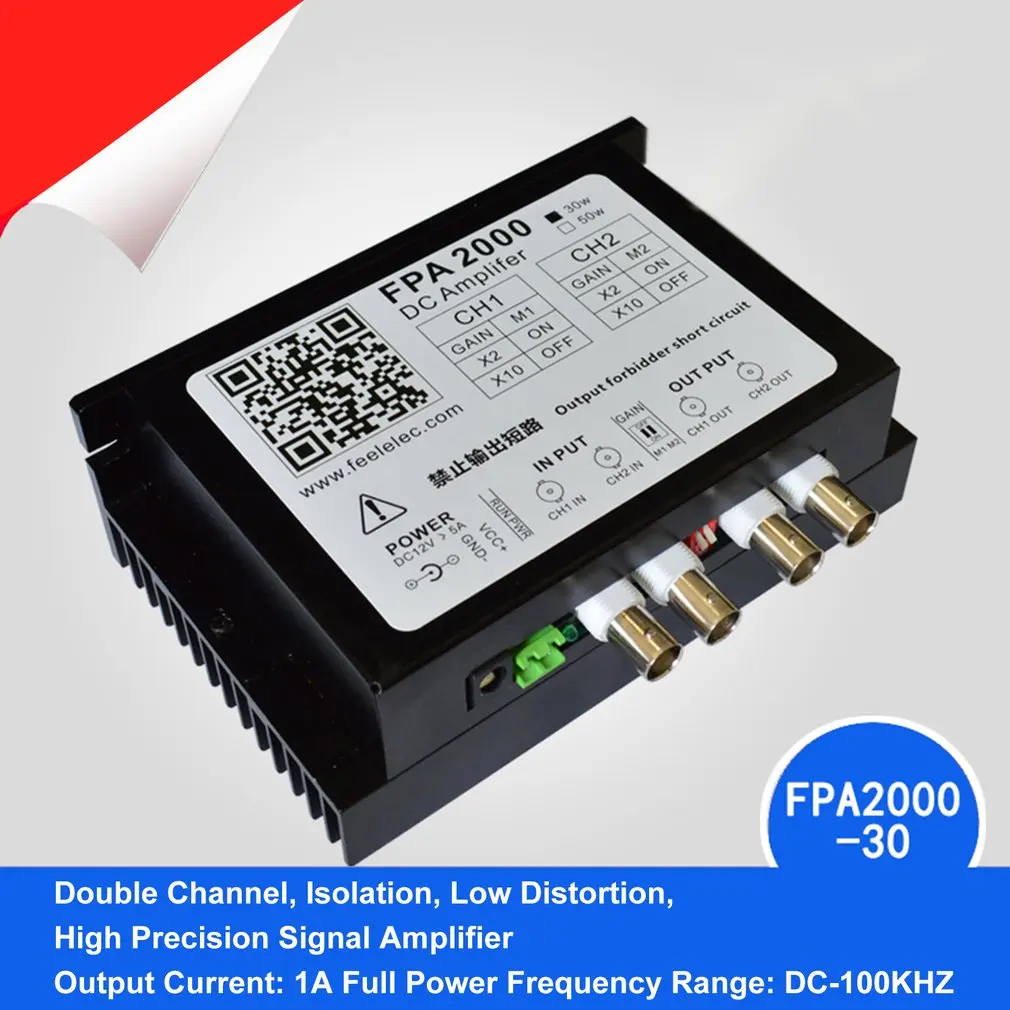

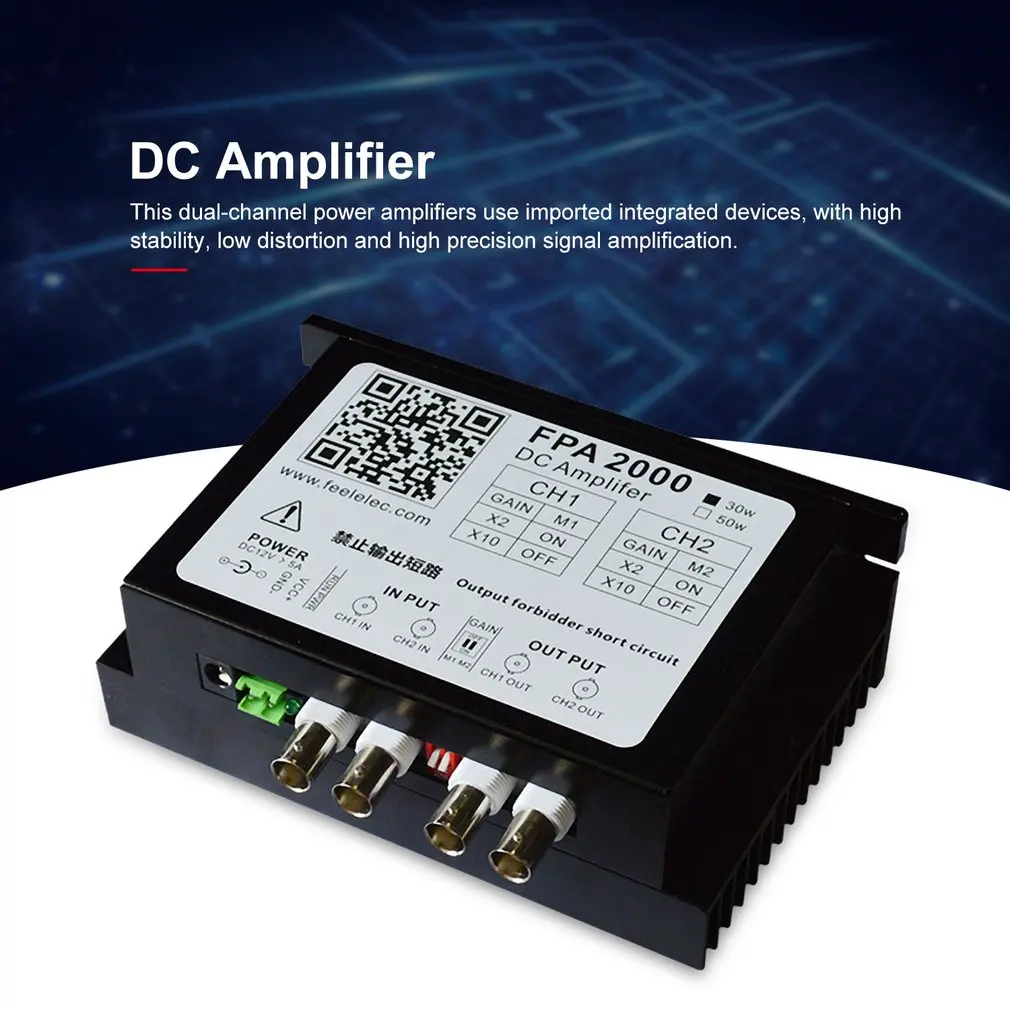

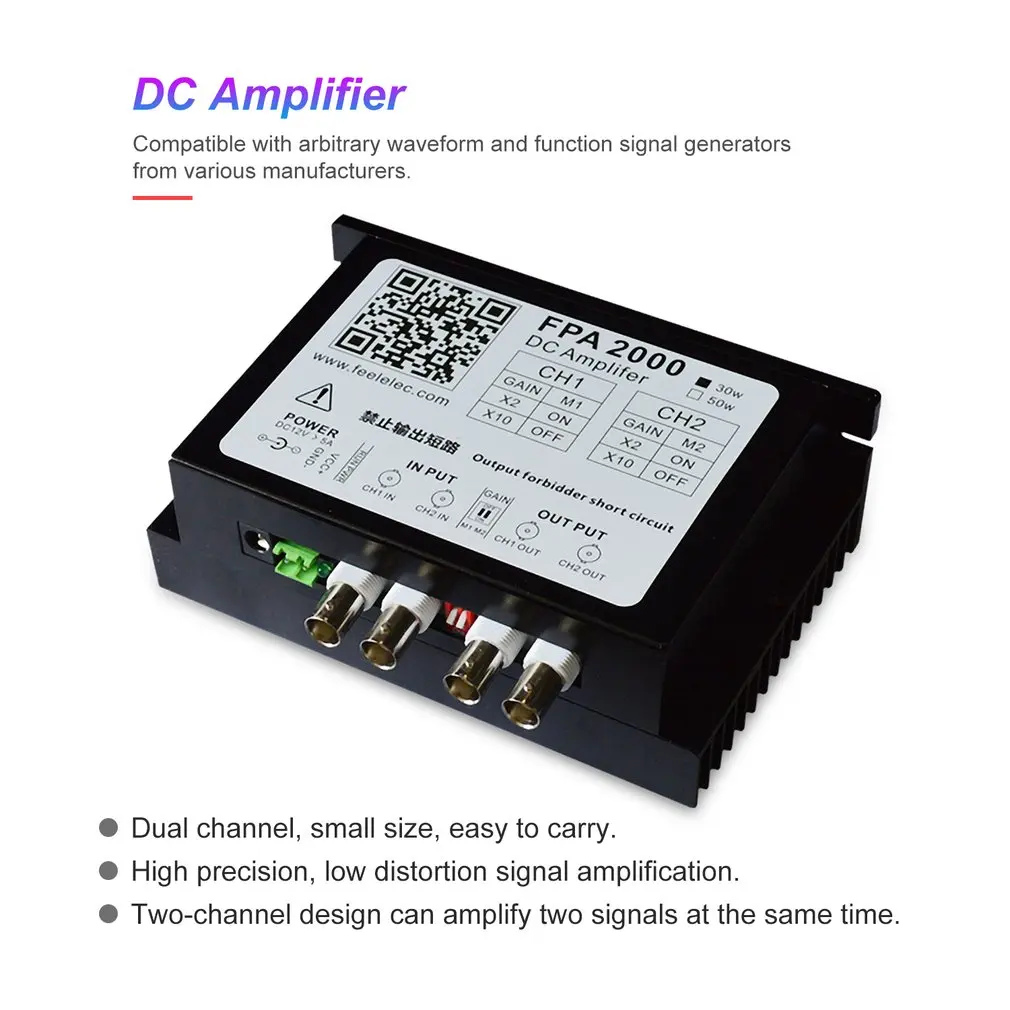

30W Signal Booster Dual-channel DC Power Amplifier For Arbitrary Waveform Function Signal Generators US
sku: 4000175412760
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$58.99
Shipping from: China
Technical Details
| Amplitude Range of Input Signal: | 0-25Vpp (2 times gain)0-5Vpp (10 times gain) |
| Brand: | FellTech |
| Brand Name: | LOMVUM |
| Dual Channel Differential Output Mode: | 100Vpp(±50V), no load |
| Dual Channel Output Mode: | 50Vpp(±25V), no load |
| Full Power Bandwidth Range Sine: | DC~100KHz |
| Gain Adjustment Method: | Toggle switch adjustment |
| Heat dissipation method: | Natural heat dissipation of shell |
| Input Impedance: | ≥10KΩ |
| Item Size: | 150 x 97 x 52mm / 5.91 x 3.82 x 2.05in |
| Item Weight: | 550g |
| Material: | Aluminum alloy |
| Max. output current: | 1A |
| Model: | FPA2000-30W |
| Model Number: | FPA2000 |
| Output Impedance: | ≤2Ω |
| Plug: | US |
| Power: | DC12V power Input |
| Safe Use Load Value: | ≥4Ω |
| Slew Rate: | ≥10V/us |
| Type: | Power Tool Parts |
| VOLTAGE GAIN: | 2X and 10X, 2 gears optional |
| Working Condition: | Temp. |
