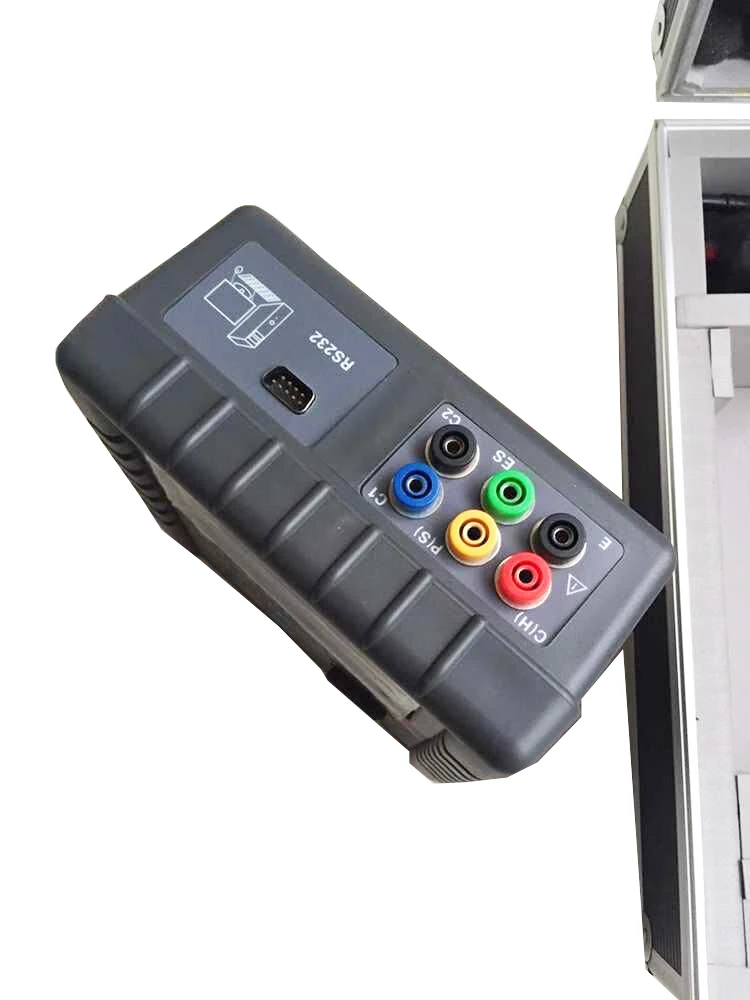

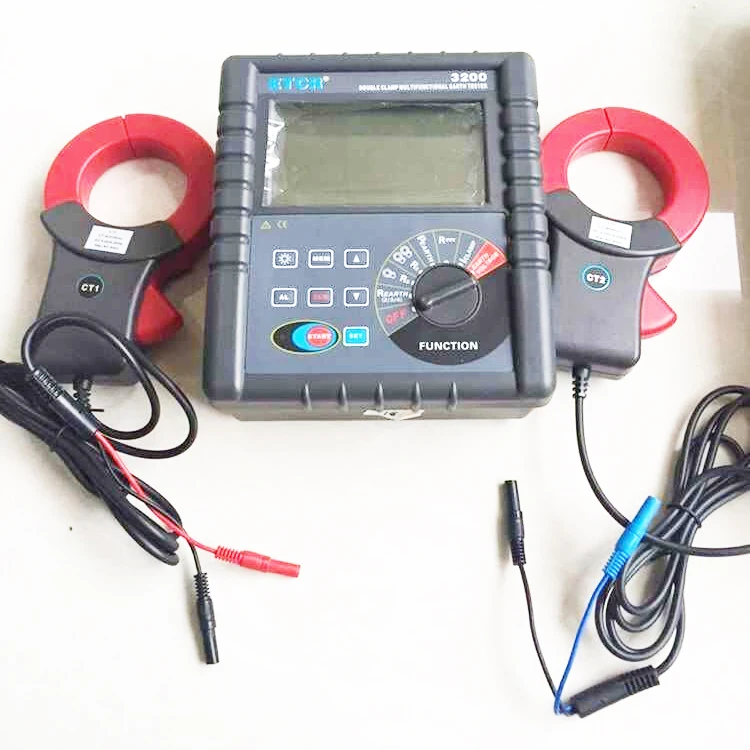

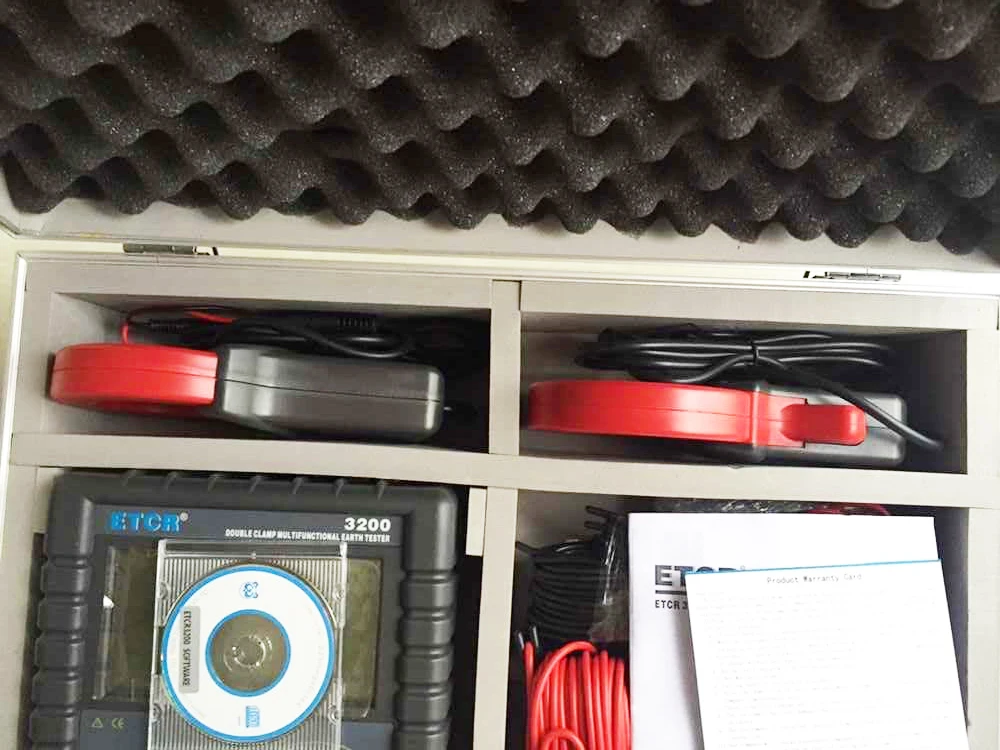

2/3/4 Pole Double Clamp Digital Earth Resistance Tester Soil Resistivity Meter Detector With RS232 Interface 2000 Data Storage
Technical Details
| Accuracy Class: | +/-2%rdg+/-3dgt |
| Caliber of clamp: | 68mm |
| Data Storage: | 2000 sets |
| Dimensions: | 215mm*190mm*95mm |
| Display Type: | Digital Only |
| DIY Supplies: | Electrical |
| Lead line of clamp: | 2m |
| Measuring Range: | 0~30.00kohm |
| Model Number: | ETCR3200 |
| Open-circuit Test Current: | AC 40V max |
| Operating Temperature: | -10-40c |
| Power Supply: | DC 9V(not included) |
| Short-circuit Test Current: | AC 20mA max |
| Standard Test Wire: | 4 wires: each for red 20m, black 20m, yellow 10m, and green 10m |
| Test frequency: | 128Hz/111Hz/105Hz/94Hz(AFC) |
| Testing voltage: | AC 0.0-100V |
| Test Voltage Wave: | Sine wave |
| Working Temperature Humidity: | -10C-40C, below 80%rh |
