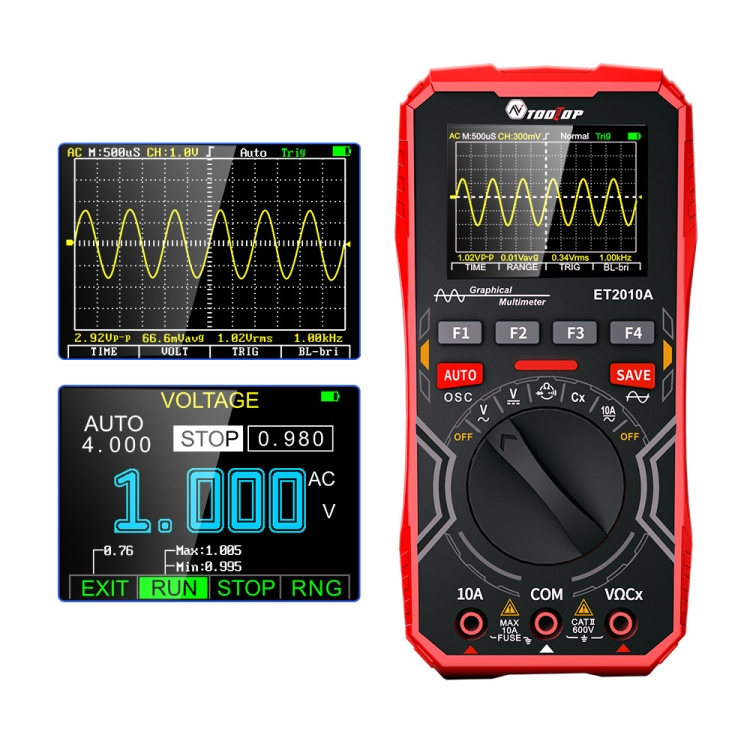

TOOLTOP 2 In 1 DIY Oscilloscope Mini Multimeter

TOOLTOP 2 In 1 DIY Oscilloscope Mini Multimeter
thumb
thumb
thumb
thumb
thumb
thumb
thumb
thumb
thumb
thumb
TOOLTOP
sku: 3552551
$37.74
Shipping from: China
   Description

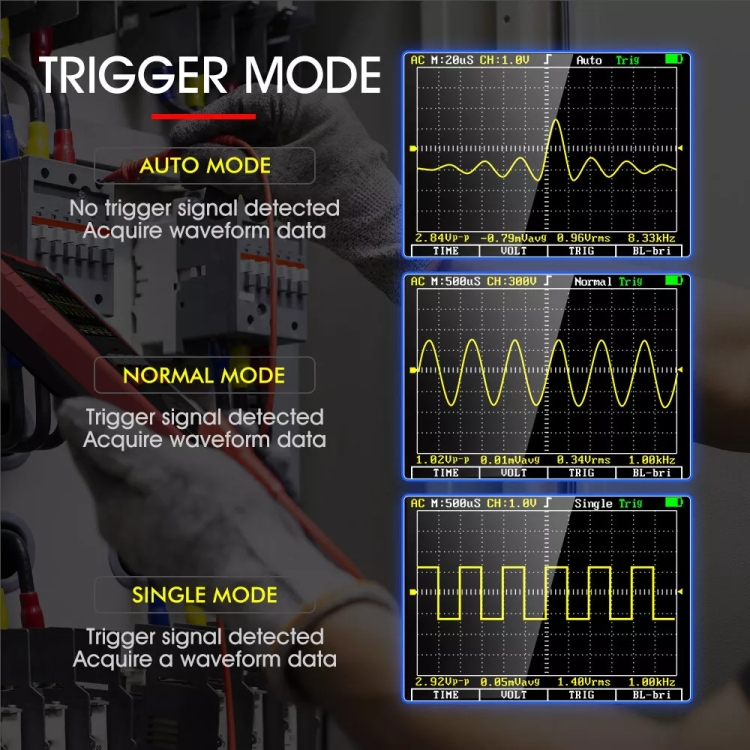

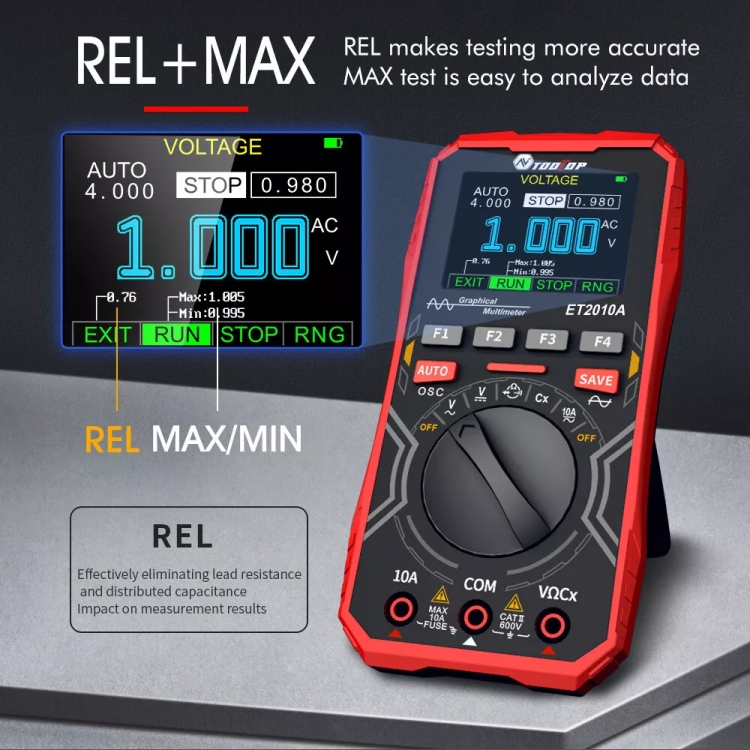

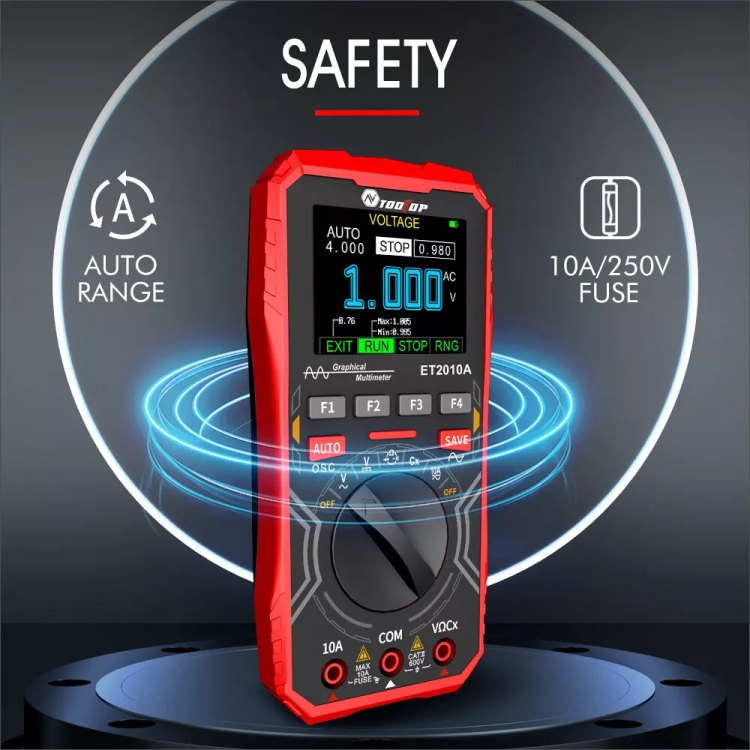

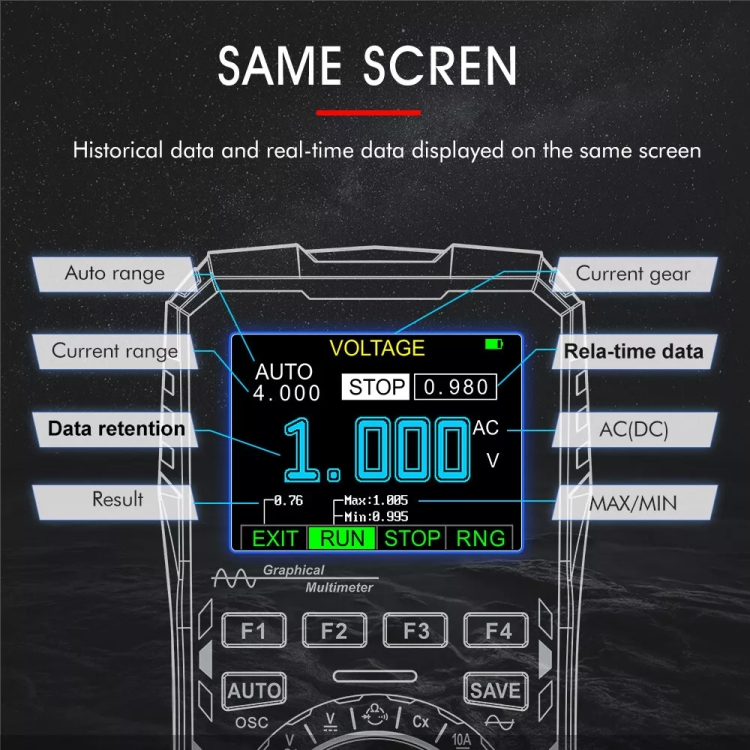

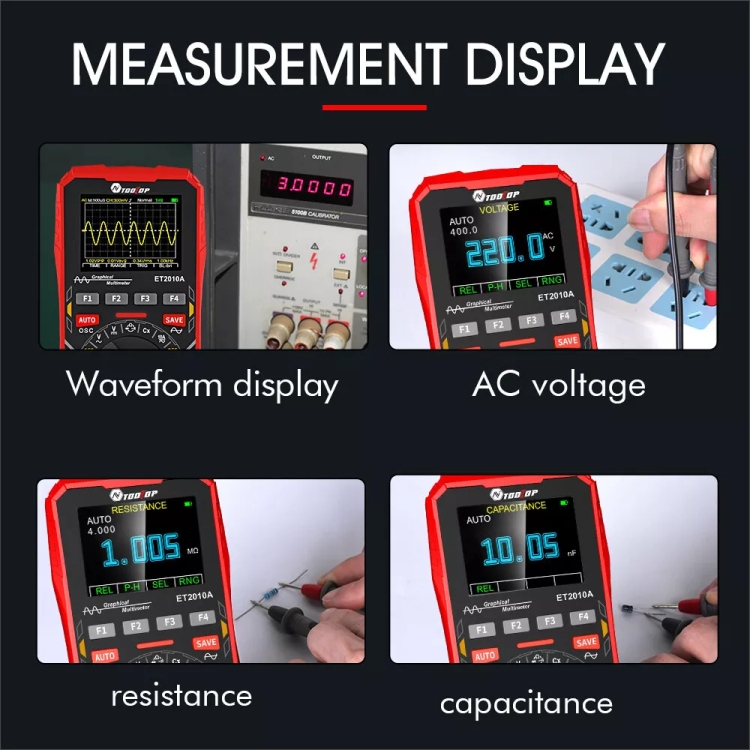

1. Bandwidth: 1MHz2. Real-time sampling rate: 2.5Msps3. Display: 320x240, white backlight4. Battery: AA x 3 (not included)5. Storage: 100 data/10 waveforms6. Fuse: 10A/250V7. Number of channels: 18. Vertical sensitivity range: 300mV- 1000V/div9. Time base range: 2.5us -10s/div10. Trigger mode: Auto / Single / Normal11. Trigger edge selection: rising edge / falling edge12. Auto sleep: no operation within 15 minutes13. Measurement function: Vp-p, Vavg, Vrms, Hz14. Input resistance: about 10 milliohms15. DC voltage: 400mV-600V16. AC voltage: 400mV-600V17. DC current: 4A-10A18. AC current: 4A-10A19. Resistance: 400.0 ohms-40.00 milliohms20. Capacitance: 51.2nF~100uF21. Frequency: 5Hz ~ 5MHz22. Diode: 1.5 V23. Same screen display: historical data and real-time data are displayed on the same screen24. Continuity test: resistance is less than 50 ohms, beep25. Intelligent protection, automatic range plus 10A fuse double protection26. REL effectively eliminates the influence of lead resistance and distributed capacitance on the measurement results27. Dimensions: 77x157x25.5mm28. Weight: 135g
