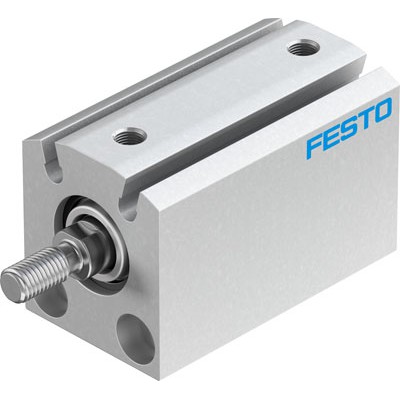

SHORT STROKE CYLINDER ADVC-16-20-A-P-A

Stroke 20 mm
Piston diameter 16 mm
Cushioning P: Flexible cushioning rings/plates at both ends
Assembly position Any
Mode of operation double-acting
Design structure Piston
Piston rod
Position detection For proximity sensor
Operating pressure 1 ... 10 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 1 - Low corrosion stress
Ambient temperature -20 ... 80 °C
Theoretical force at 6 bar, return stroke 90 N
Theoretical force at 6 bar, advance stroke 121 N
Moving mass 21 g
Product weight 122 g
Mounting type Optional
with through hole
with accessories
Pneumatic connection M5
Materials note Free of copper and PTFE
Material cover Wrought Aluminium alloy
Anodised
Material seals TPE-U(PU)
Material housing Wrought Aluminium alloy
Anodised
Material piston rod High alloy steel
