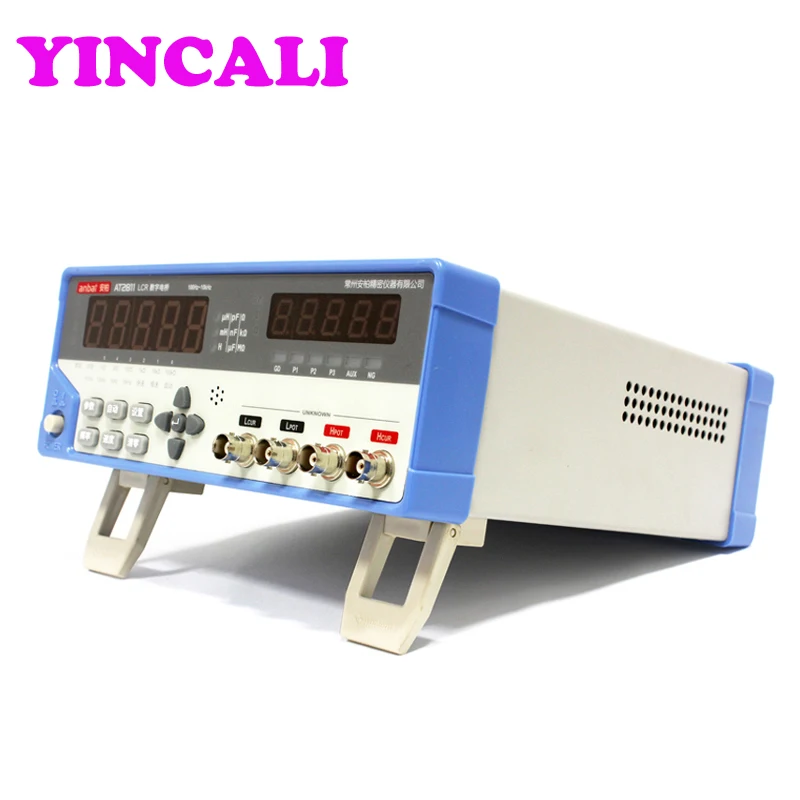

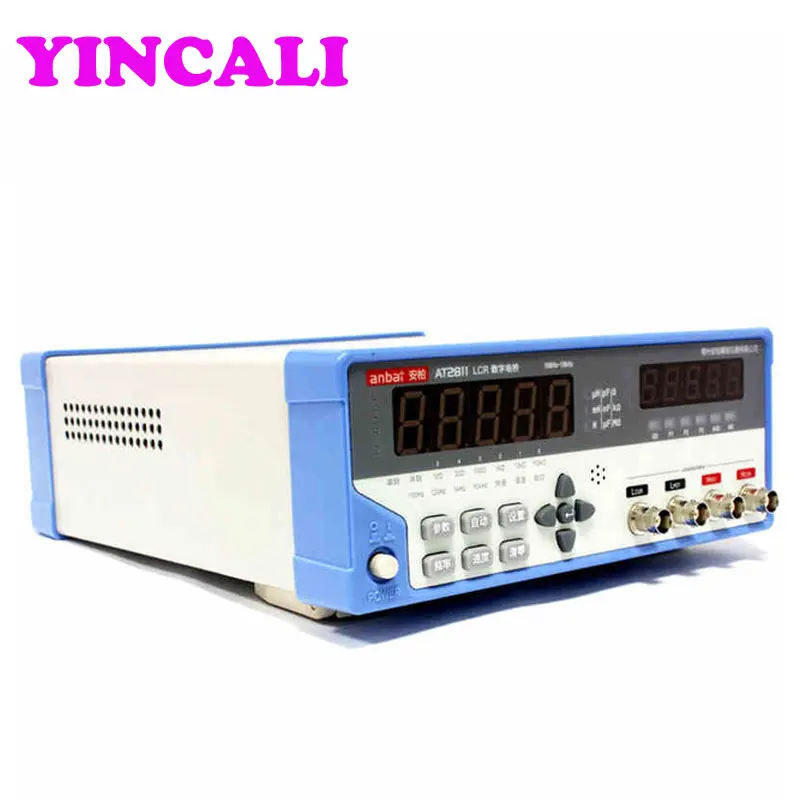

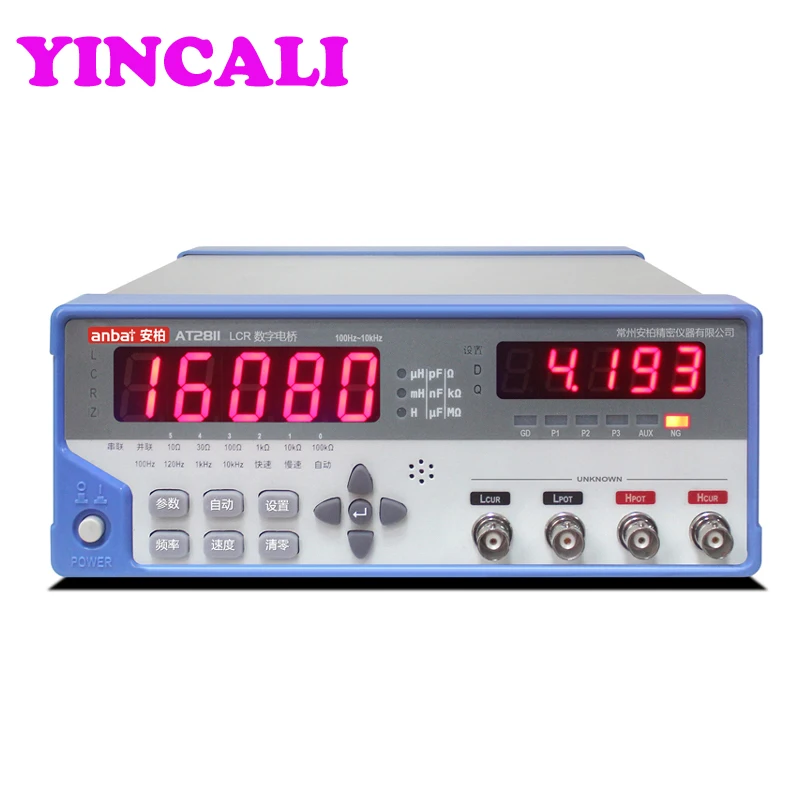

Newly Digital LCR Meter Tester AT2811 LCR Digital Bridge LED Display Frequency 100Hz 120Hz 1kHz 10kHz
Technical Details
| Accuracy Class: | 0.25% |
| Adjustment: | Short and open sweep frequency zero clearing |
| Brand Name: | YINCALI |
| Comparator: | 5-bin sorting |

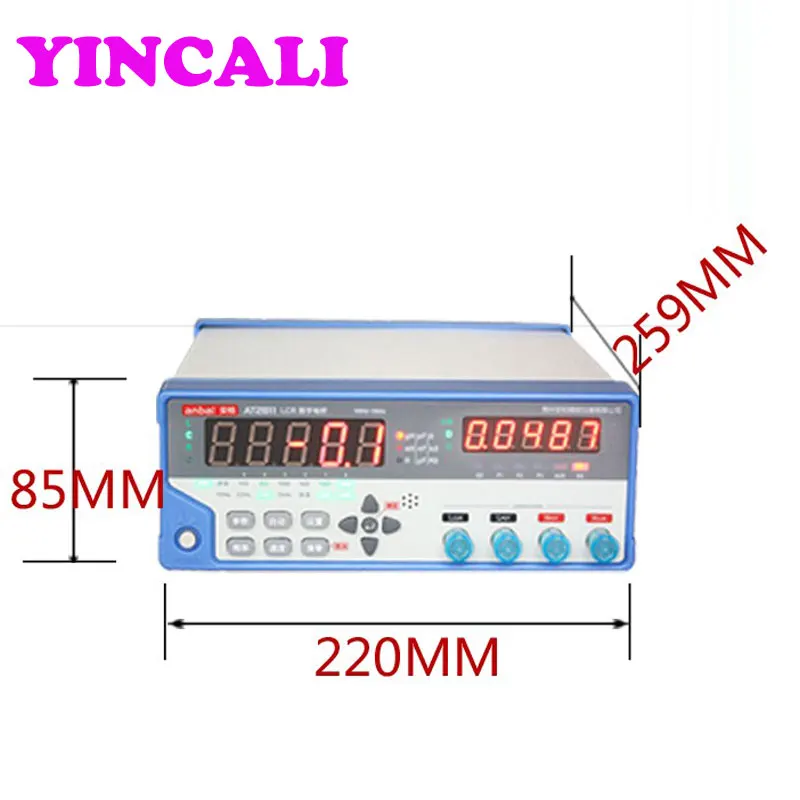

| Dimensions: | 220mm*85mm*259mm |
| Display Max: | Principle parameter: 99999 Sub parameter: 99999 |
| Display Type: | Digital Only |
| DIY Supplies: | Electrical |
| Frequency: | 100Hz,120Hz.1kHz,10kHz |
| Measuring Range: | See Description |
| Model Number: | AT2811 |
| Monitor Parameters: | D,Q |
| Operating Temperature: | 60C |
| Parameters: | L,C,R,|Z| |
| Range: | Automatic and manual with 6 ranges |
| Signal Level: | 0.1Vrms, 0.3Vrms and 1Vrms (1+/-10%) |
| Source Resistance: | 30ohm, 100ohm |
| Speed: | Slow: 3 times/second, Fast: 10 times/second |
| Testing voltage: | See Description |
| The power supply requirements: | 198V ~ 252VAC 48.5Hz ~ 52.5Hz |
