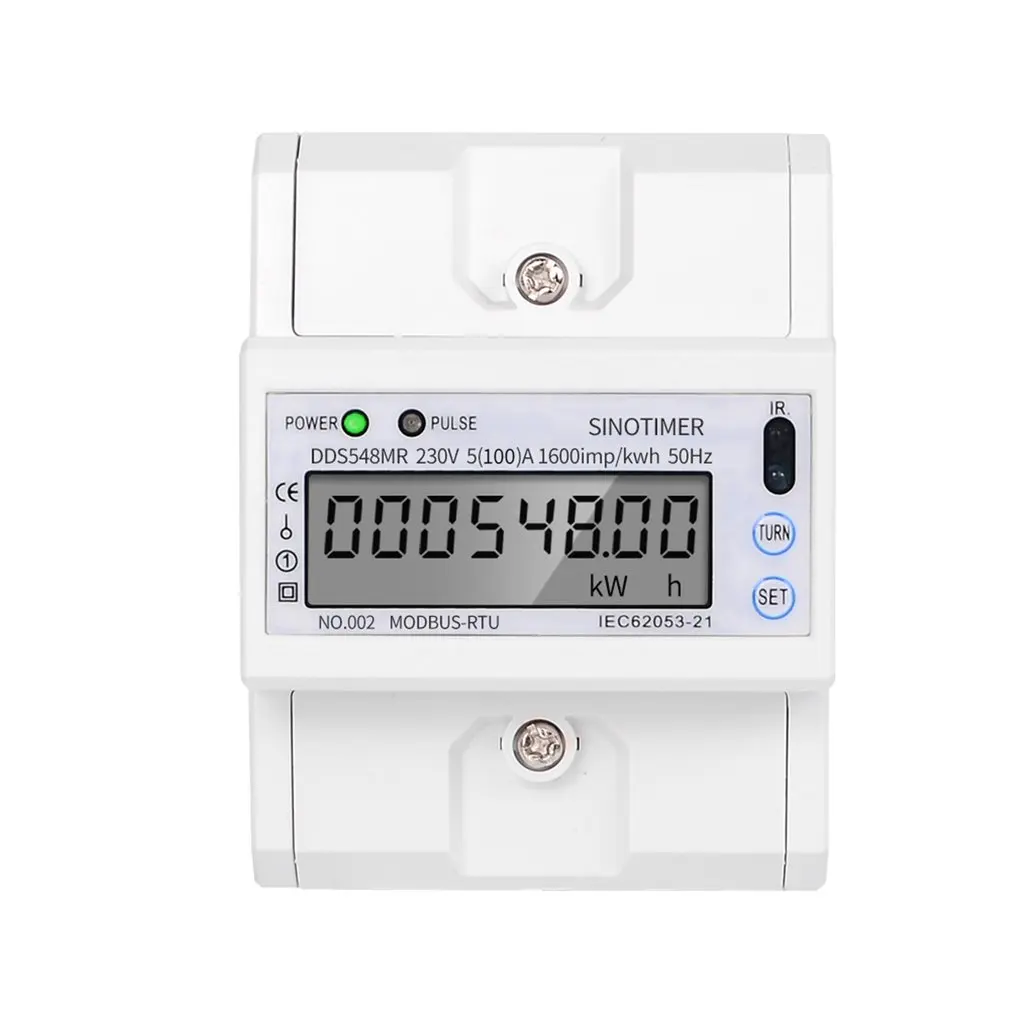

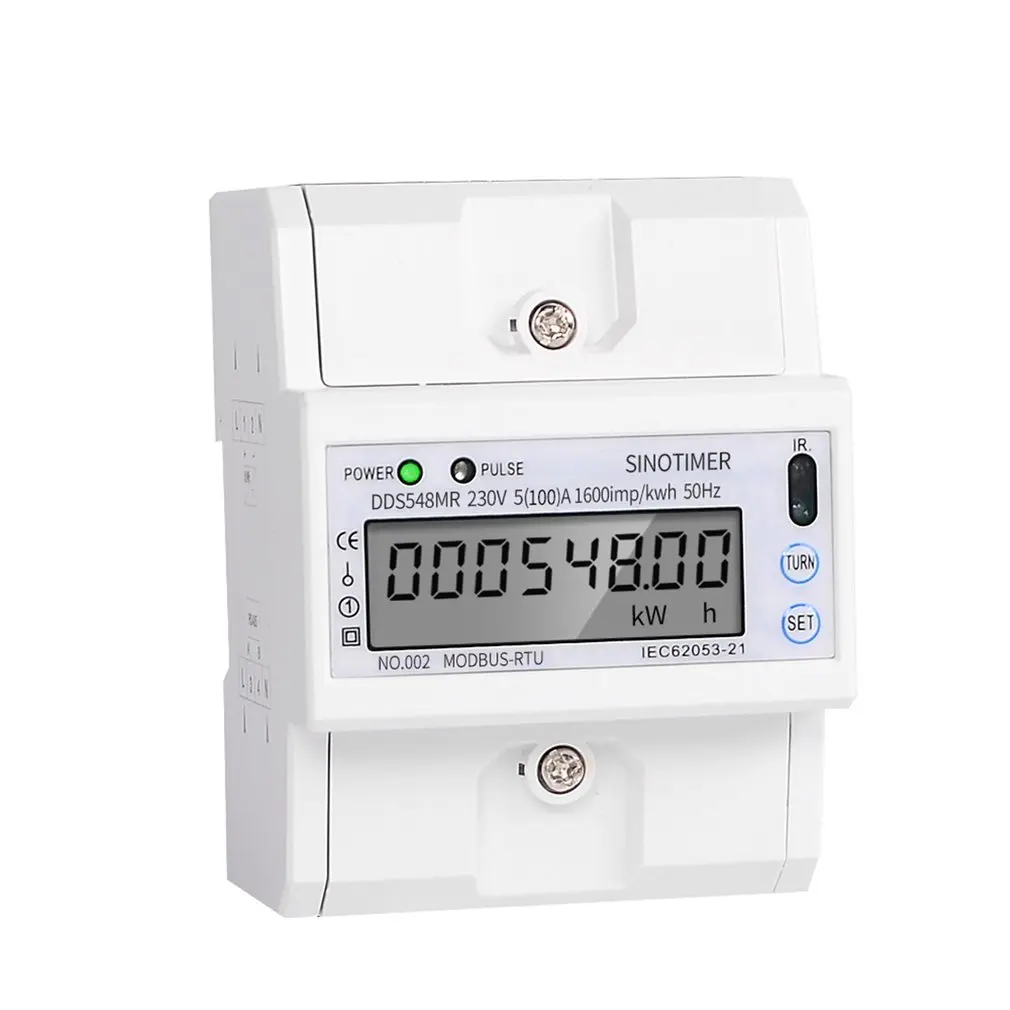

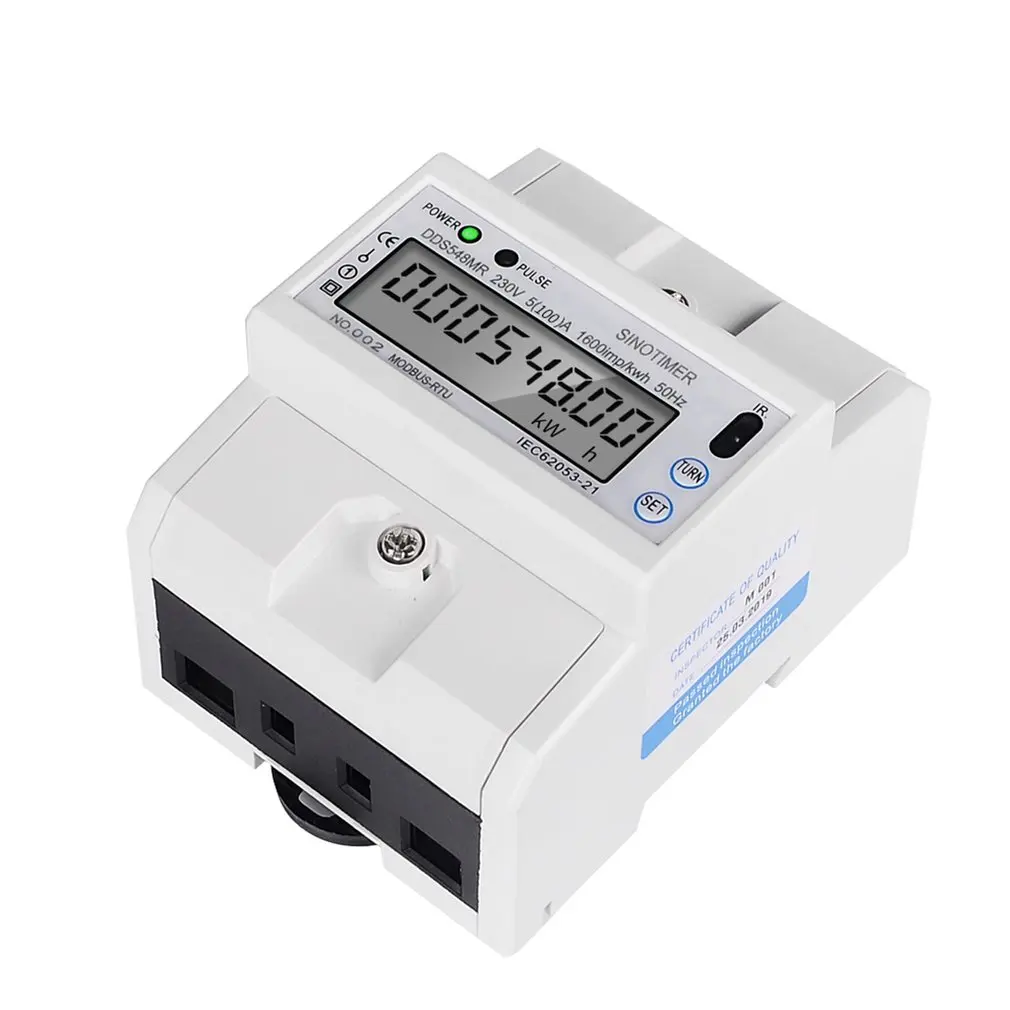

Multi-functional Single Phase or 3 Phase 4 Wire 5-100A 230V AC Energy Meter Electric Consumption Meter Monitor DIN Rail
sku: 4000173719686
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$24.97
Shipping from: China
Technical Details
| Accuracy Class: | 1 |
| Brand Name: | ACEHE |
| Colors: | White |
| Constant Pulse: | 400imp/kWh |
| Dimensions: | 100x76x65mm |
| Display: | LCD 6 + 2 |
| Display Type: | Digital Only |
| DIY Supplies: | Electrical |
| Material: | ABS+Metal |
| Max Operating Current: | 20A - 49A |
| Measuring Energy Range: | 400imp/kWh |
| Model Number: | DDS024MR |
| Operating Temperature: | -10 ~ 50℃ |
| Output Voltage: | 380V |
| Phase: | Single Phase/3 Phase |
| Power Consumption: | ≤2W, 10VA |
| Power Supply: | AC |
| Product name: | Energy Meter |
| Rated frequency: | 50Hz |
| Rated Voltage: | 380V |
| Reference Current: | 3 x 5(100A) |
| Size: | 100x76x65mm/3.94x2.99x2.55in |
