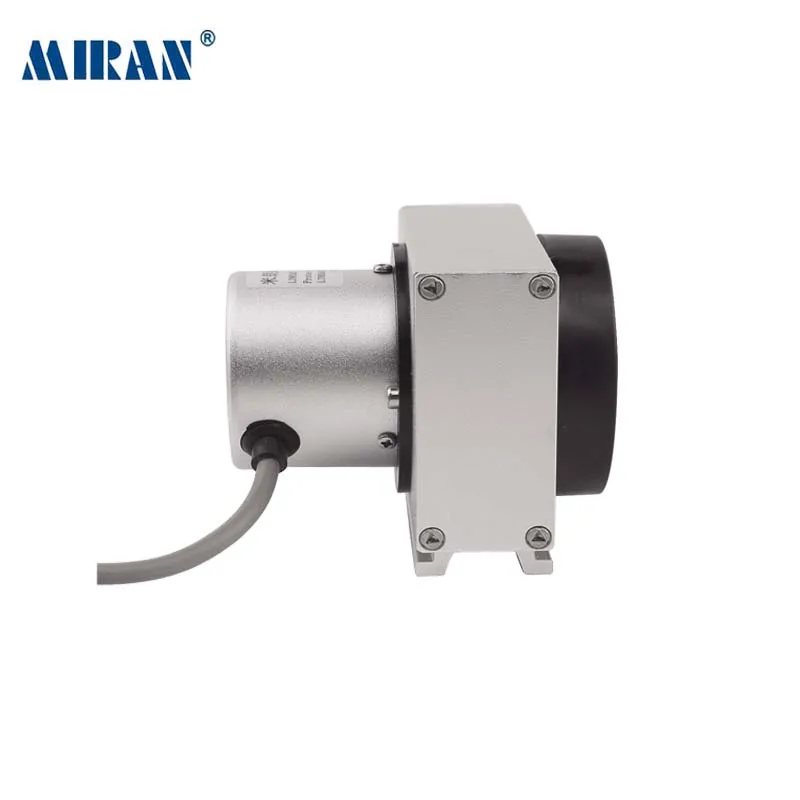

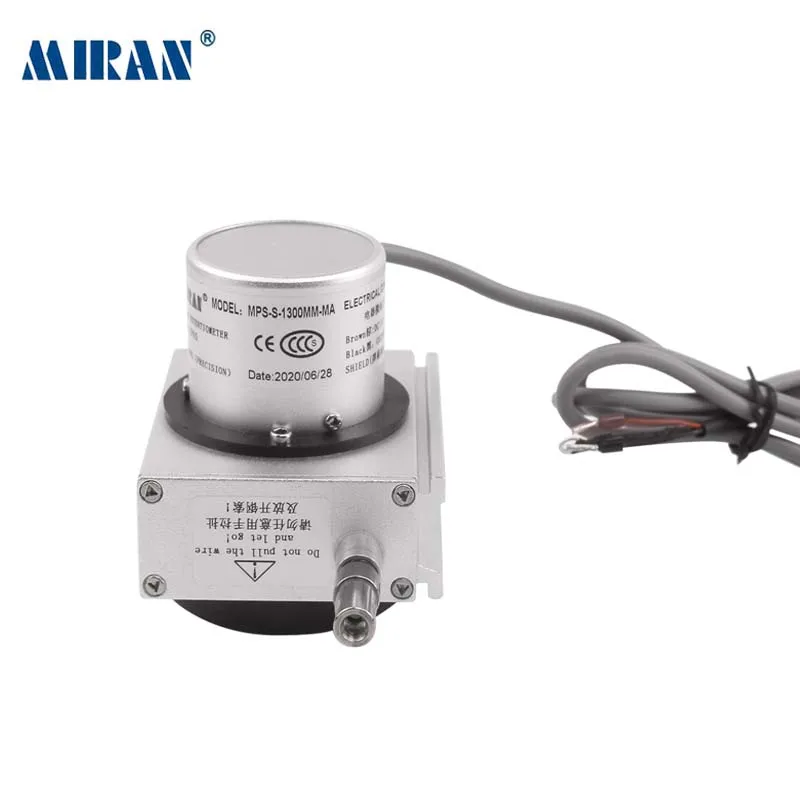

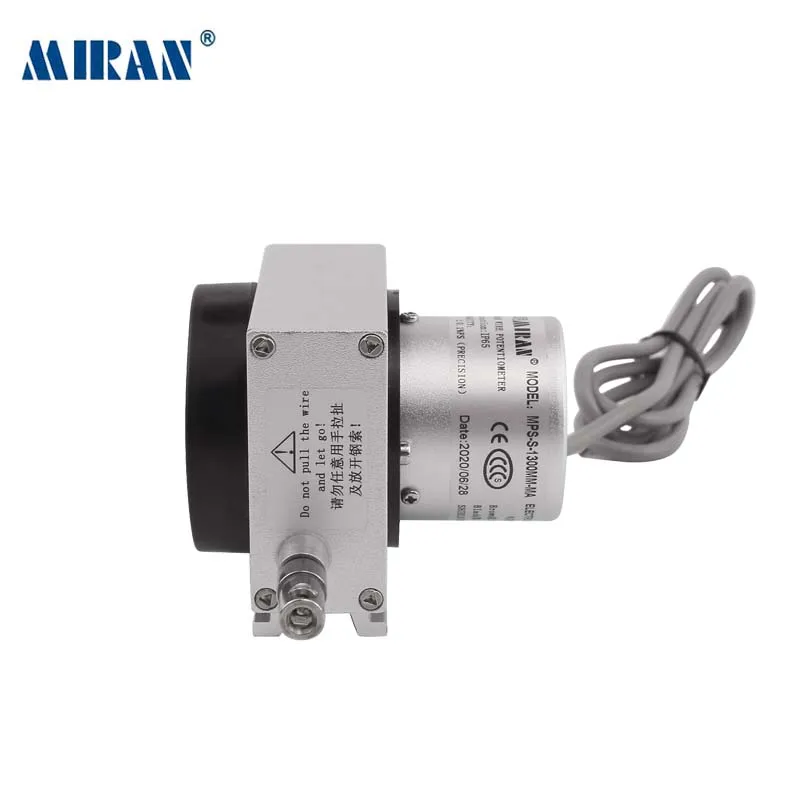

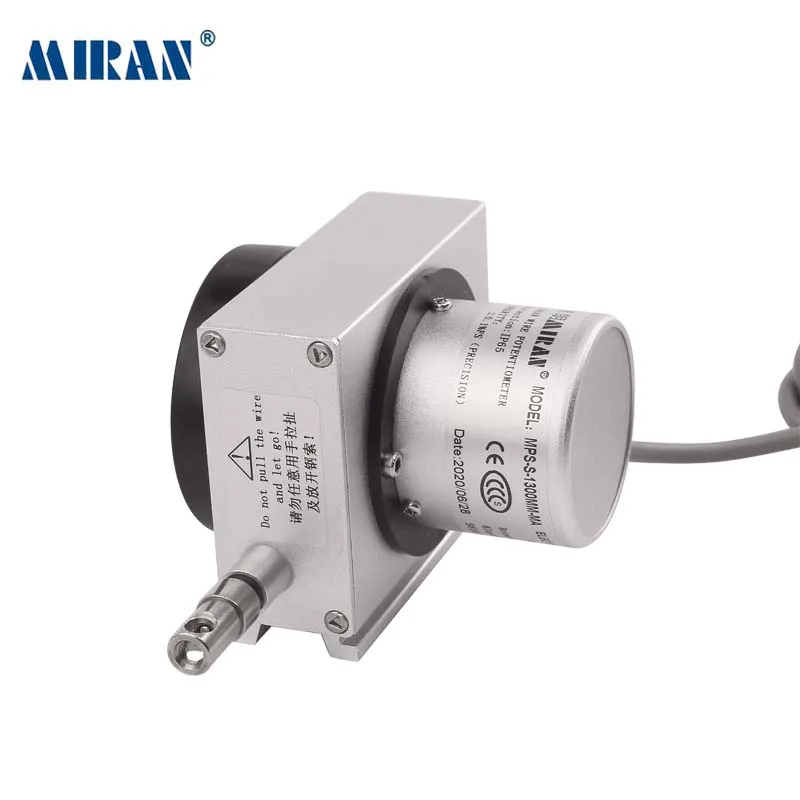

Miran Pull Rope Displacement Sensor Draw Wire Encoder MPS-S 100mm-1250mm Stroke Resistance 5K Output Wire Potentiometer
Technical Details
| Brand Name: | MIRAN |
| DIY Supplies: | Electrical |
| Item: | MPS-S 100mm-1000mm Wire Rope Potentiometer |
| Linearity: | 0.3%FS-0.1%FS(Resistance/0-5V/0-10V/4-20mA),0.05%FS/1count(square wave |
| Max Speed: | 1000mm/s;500mm/s |
| Measurement Stroke: | 100mm-1000mm |
| Model Number: | MPS-S 100mm-1000mm Wire Rope Potentiometer |
| Output Signal: | 0-5V 0-10V 4-20mA Pulse Phase |
| Output Type: | Analog Sensor |
| Power Supply: | 5V~36V |
| Protection degree: | IP65 |
| Repeatability: | 0.05%FS |
| Starting Force: | Max. 600g |
| Vibration: | 10g/10Hz-1500Hz |
| Work temperature: | 0 degree centigrate~+70 degree centigrate |
