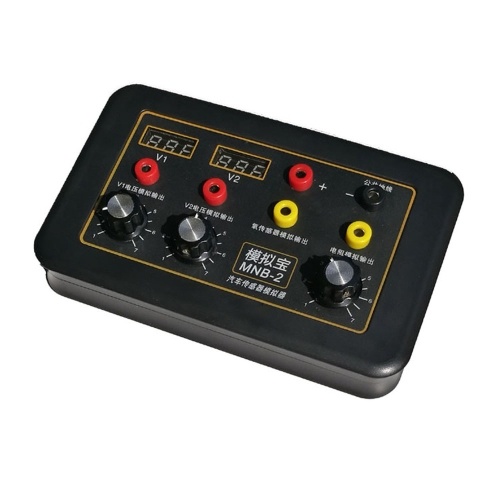

MNB-2 3-30V Auto Sensor Automotive Signal Generator Vehicle Voltmeter Car ECU Tester Signal Simulator Repairing Tool

Features:

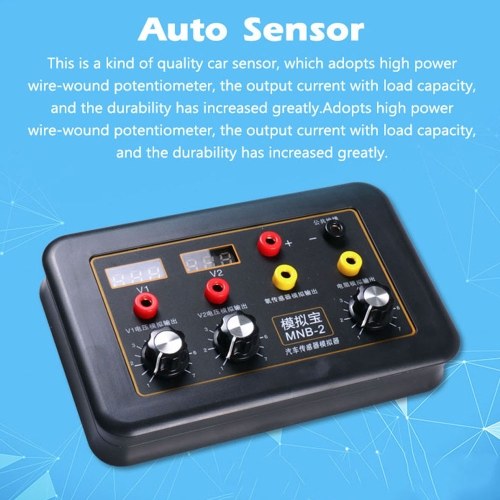

Adopts high power wire-wound potentiometer, the output current with load capacity, and the durability has increased greatly.
Full protections, equipped with powersupply reverse-connection-protection, the output interface has over-current and short circuit-protection.
Suitable for both voltage sensor signal simulation test and resistance sensor signal simulation test.
Adopts high power wire-wound potentiometer.

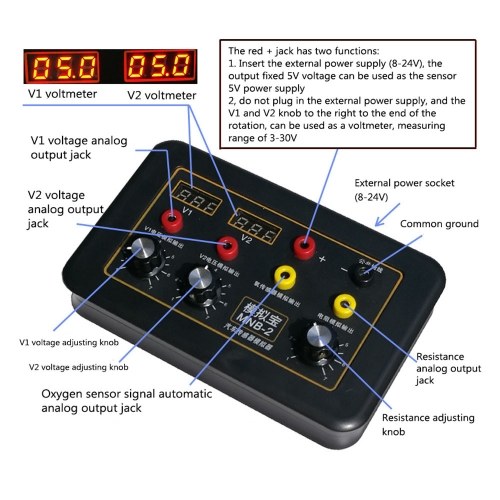

Voltage type sensor signal simulation test:
V1 and V2 output voltage ratio can be adjusted between 0-5V separately.
With airflow meter, inlet pressure sensor, oil pressure sensor, supercharging pressure sensor common rail pressure sensor, oxygen sensor manual/automatic simulation function(0.1V-0.9V).
Throttle pedal sensor dual-signal-ratio(most 2:1) can be arbitrarily adjusted throttle position sensor, air conditioning pressure sensor (voltage type).
Press the SET button to output 10 signals at any-frequency, the frequency is 2Hz.
The outpur frequancy is adjustable, and the output signal is 2Hz-8KHz.
Suitable for fluid temperature colding sensor, air-input temperature sensor, environment temperature sensor and etc..
Resistance type sensor signal simulation test:
Coolant temperature sensor, inlet temperature sensor, oil temperature sensor, exhaust temperature sensor, fuel temperature sensor, evaporator temperature sensor, environmental temperature sensor, and etc..
