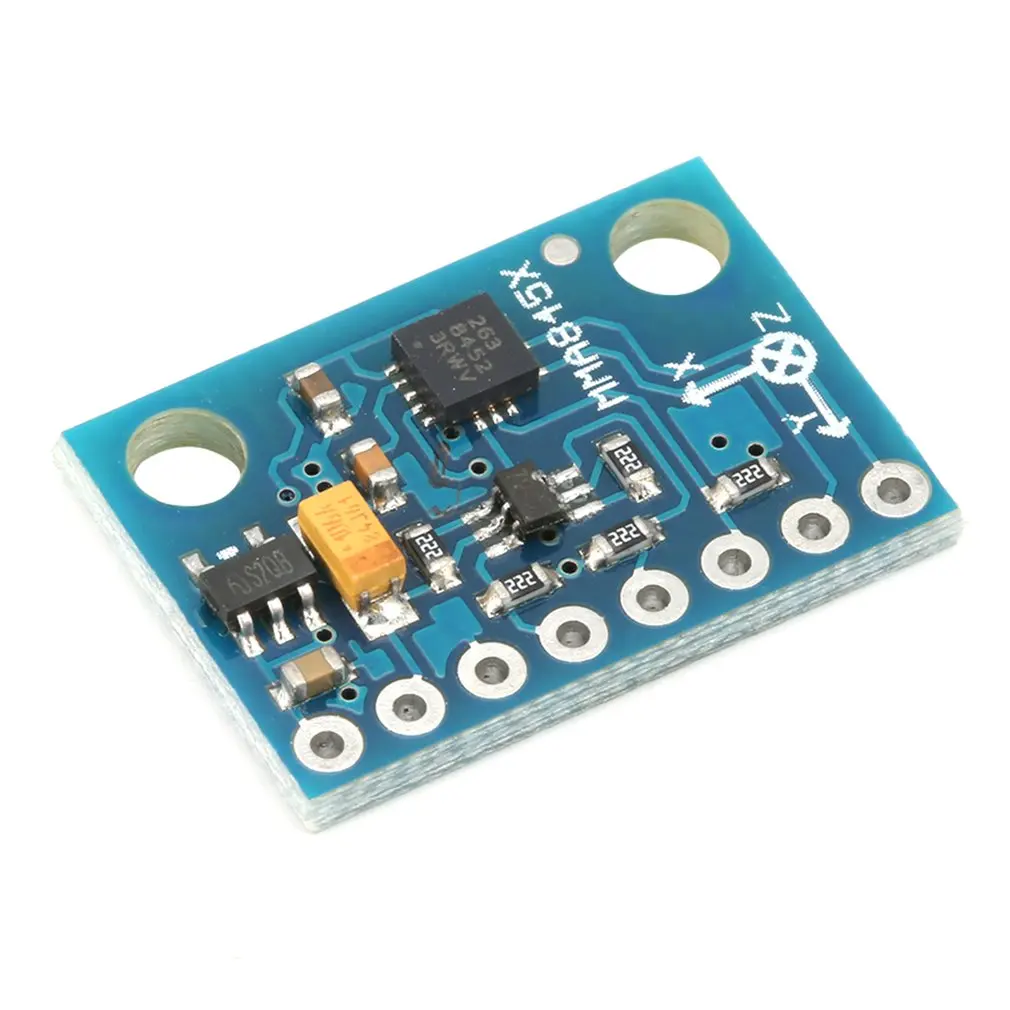

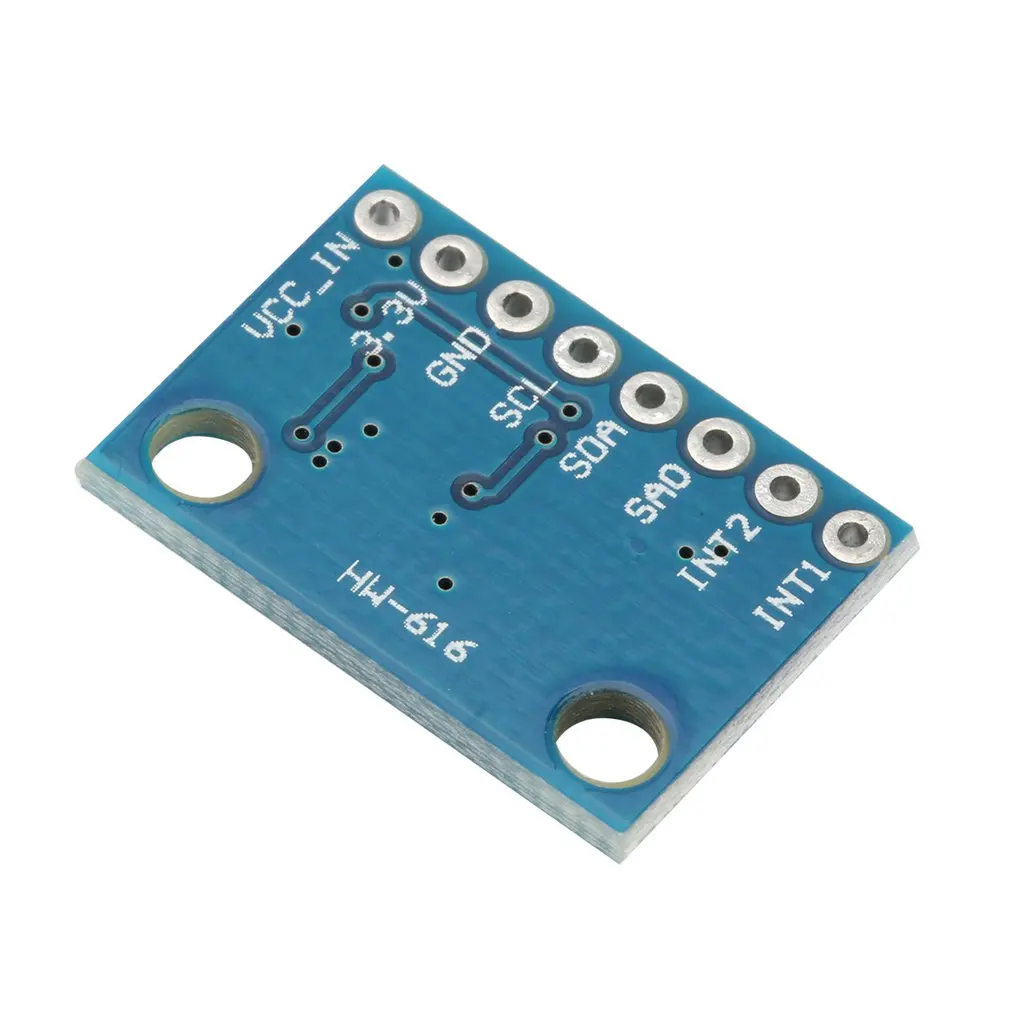

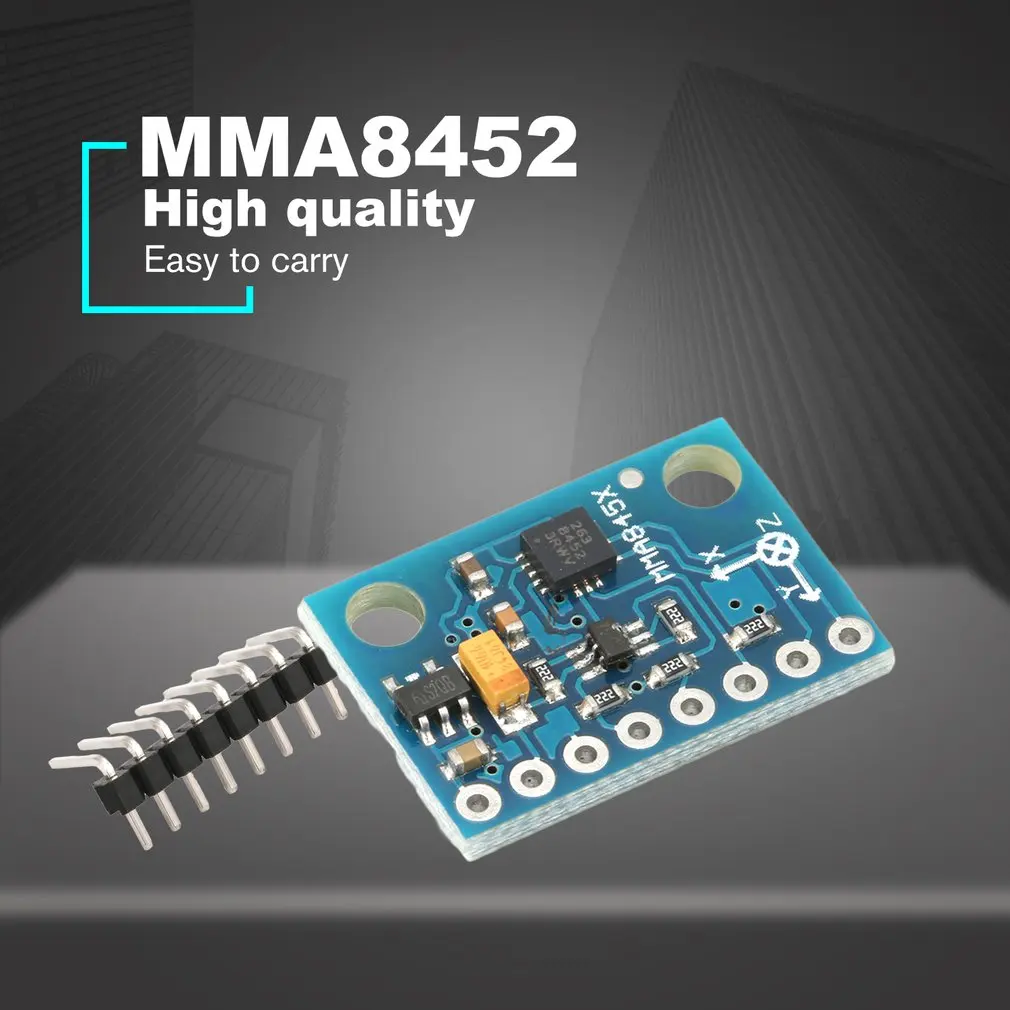

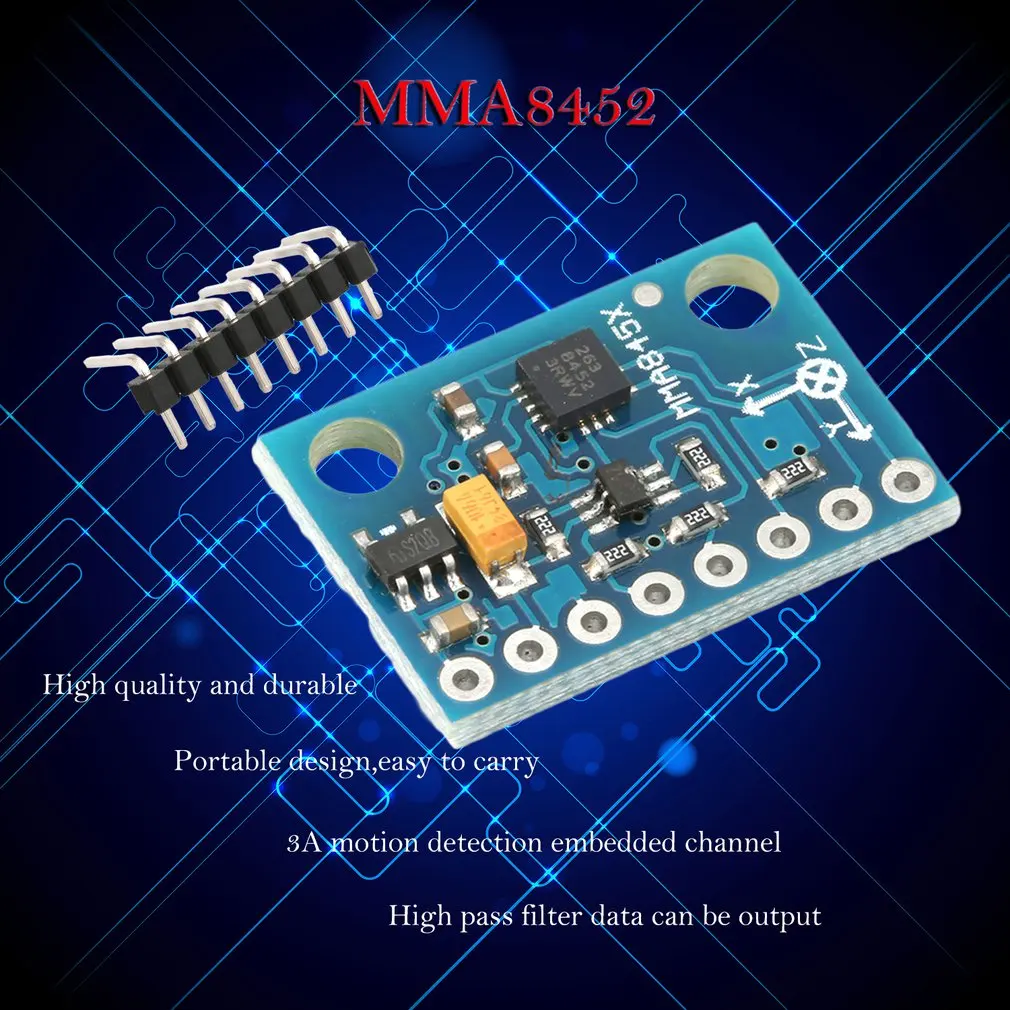

MMA8451 Digital Triaxial Accelerator Accelerometer Sensor Module High-precision Inclination Module GY-45 Precision Tilt
sku: 33036314671
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$1.40
Shipping from: China
Technical Details
| Brand Name: | ACEHE |
| Digital output: | 12And8 |
| Digital outputs: | I2C(pull-up resistor4.7 kΩ, The highest frequency up to2.25 MHz) |
| Dynamic Range: | ±2g/±4g/±8goptional |
| Free fall motion detection: | 1Channel |
| Interface voltage: | 1.6 VTo3.6 V |
| Item Size: | 13x 11x1mm |
| Item Weight: | 1g |
| Model Number: | MMA8452 |
| Power Consumption: | 6 μA - 165 μA |
| Pulse detection: | 1Channel |
| Shake detection: | 1Channel |
| Supply Voltage: | 1.95 VTo3.6 V |
| The output data rateODRRange: | 1.56 HzTo800 Hz |
