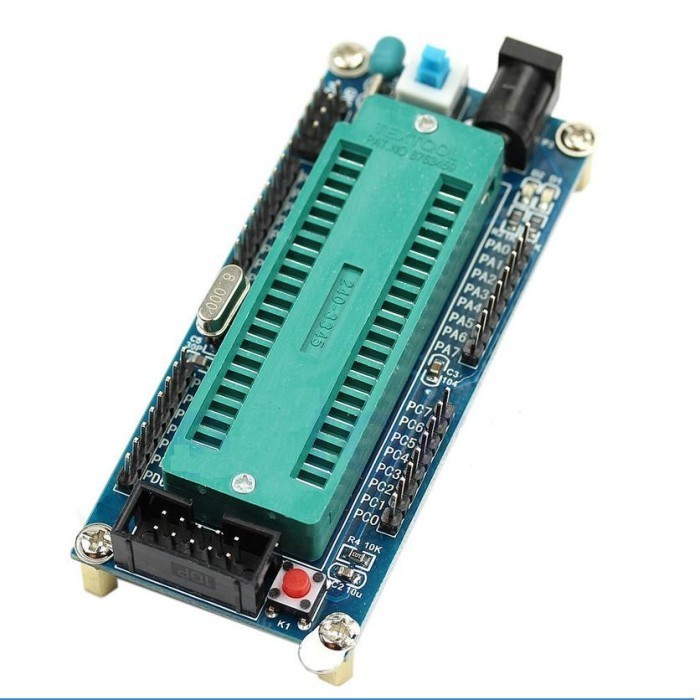

KP99 ATMEGA16 ISP ATmega32 Minimum System Board AVR Development

100% brand new and high quality
Quantity1pc
Weight46 g
Color as picture show
Size88mmx38mm3.47"x1.49"(inch) (approx)
Product Features
1. 32 IO pin all the leads.
2. Classic ATmega16 minimum system, eliminating the hassle of soldering.
3. Crystal The socket hole welding facilitate the buyer to replace the crystal, 8M crystal.
4. Support chips ATmega16ATmega32 and chip which pincompatible.
5. Power supply power adapter or external expansion pin power supply (not support ISP download interface power supply)
6. DC005 Power Block (supporting the transposon is 5.5*2.1mm).
7. Expand outside 4 channel VCC, GND.
8. Reset Poweron reset and reset button.
9. Power LED (D1) and the program run indicator (D2).
10. Standard ISP download interface.
Note This minimum system development board without AVR chip, you need purchase for chip in additional!!!!
Softre downloader Ponyprog2000.
Download
.lancos.comindex.html
.lancos.comrog.html
.lancos.compwin95.html
Isi Paket
1 pce ISP ATMEGA16 ATmega32 Minimum System Board.
