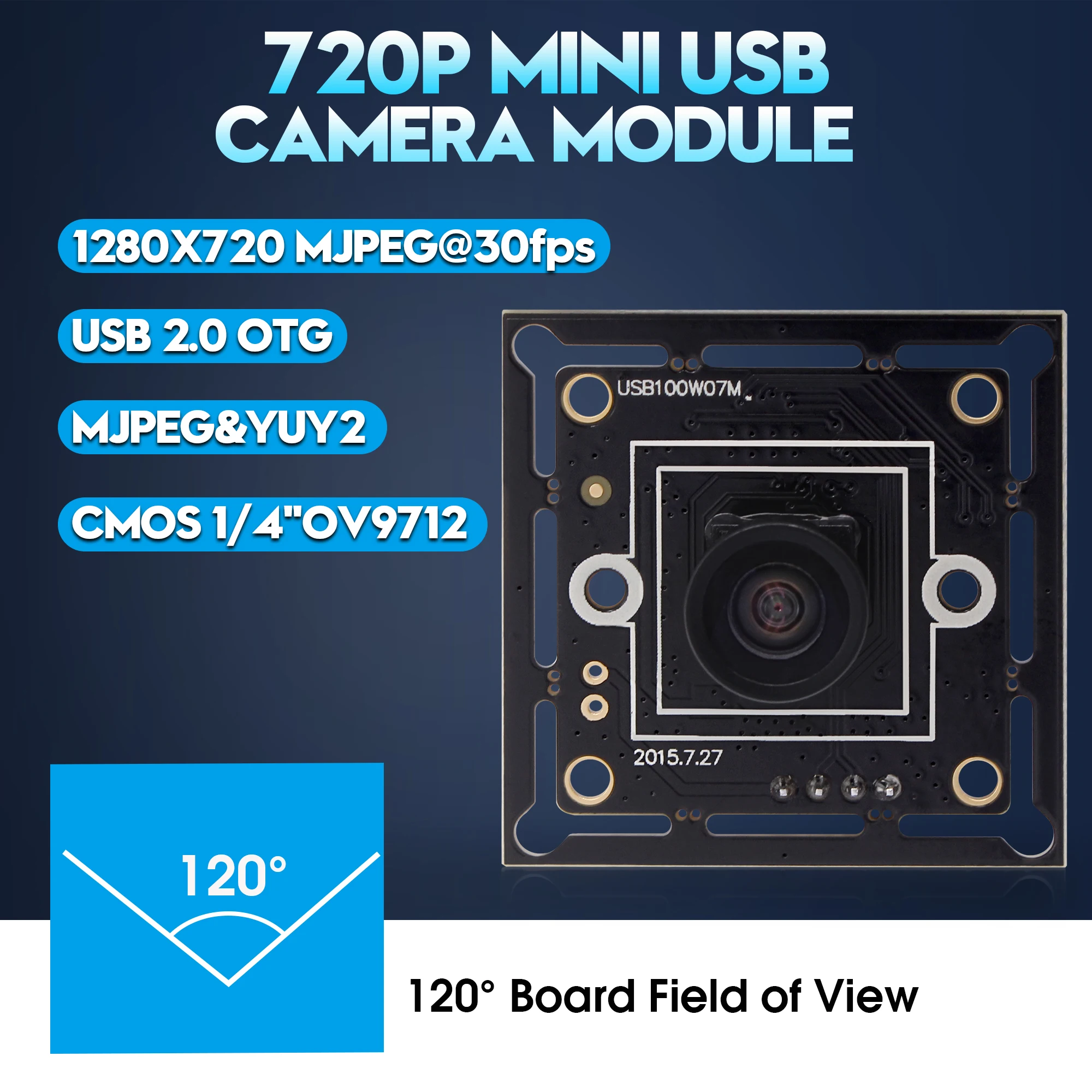

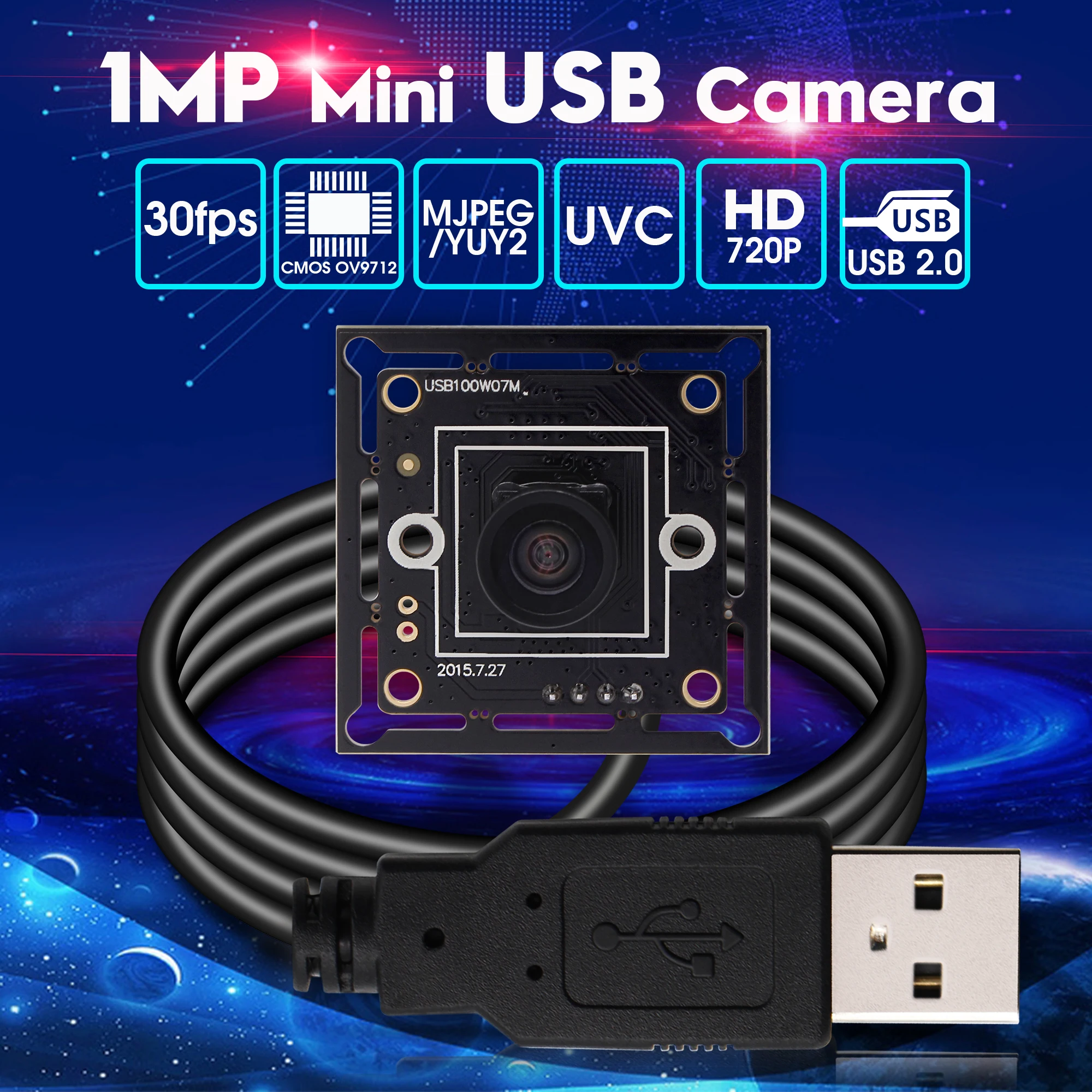

ELP Micro 720P HD MJPEG /YUY2 CMOS OV9712 120degree wide view angle CCTV mini Video Camera Module for machine vision
sku: 32642276066
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$26.88
Shipping from: China
Technical Details
| Brand Name: | ELP |
| Chips: | Ominivision OV9712 |
| Connectivity: | Closed System/CCTV Wired |

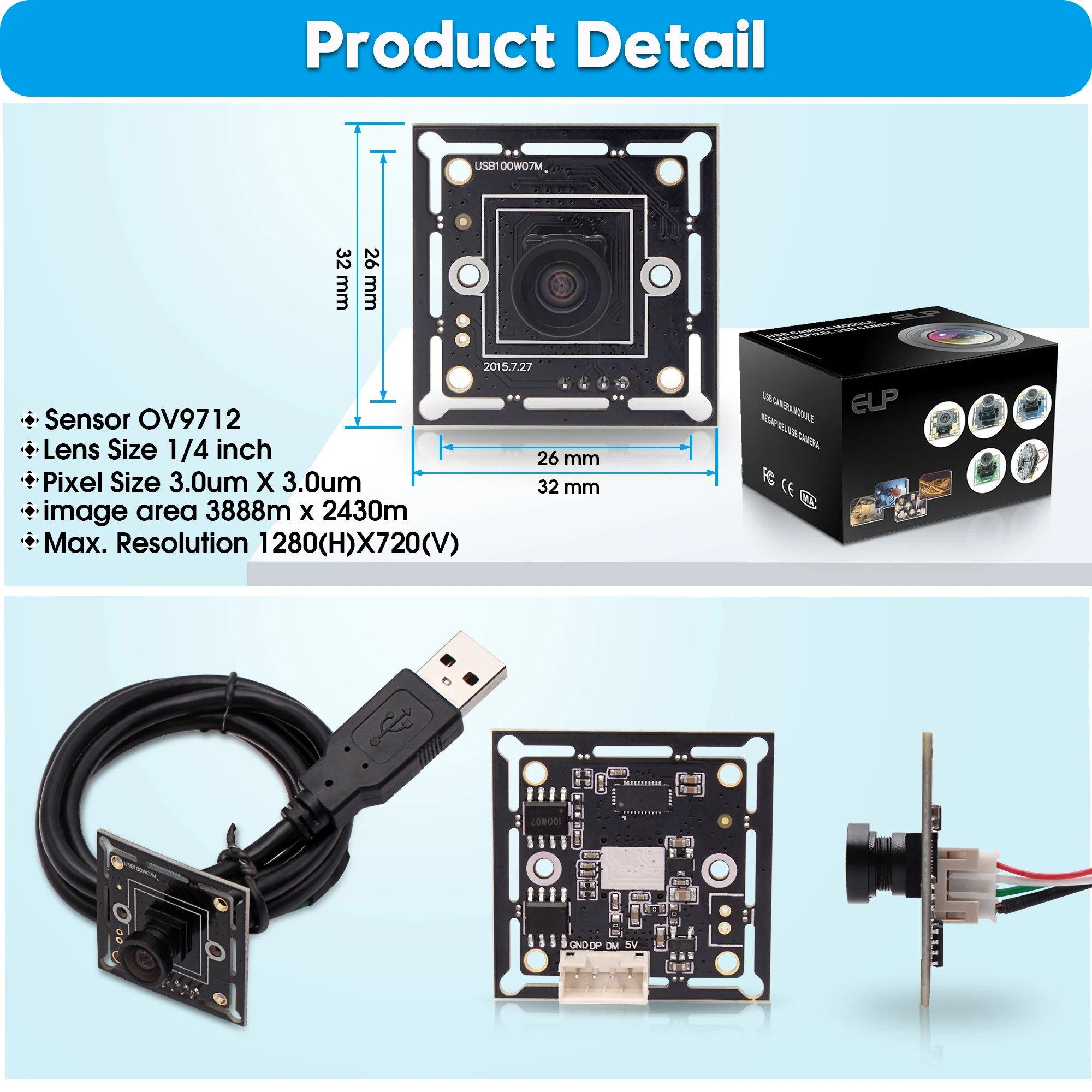

| Dimensions L x W x Dmm: | 32*32/26*26mm |
| High Definition: | 720P(HD) |
| IR Distancem: | 0 |
| is customized: | Yes |
| Lens: | Standard M7 LENS FOV(D)150 (H)120 Degree |
| Lens mm: | 120degree M7 lens |
| Max. Resolution: | 1280x720 |
| Minimum IlluminationLux: | 0.5 |
| Model Number: | ELP-USB100W07M-MHV120 |
| Network Interface: | None |
| OS Support: | Win7 Win8 Linux 2.6 or above Android 4.0 or above |
| Picture format: | YUY2 MJPEG |
| Power ConsumptionW: | 5V/150mA |
| Power SupplyV: | 5V |
| Sensor: | CMOS |
| Ships From: | Shenzhen |
| Size: | 32X32MM /26*26mm |
| Special Features: | Mini size 32*32/26*26mm |
| Style: | Mini Camera |
| Supported Mobile Systems: | Android |
| Supported Operating Systems: | Windows 7,Windows Vista,Windows 98,Windows 8,Windows XP |

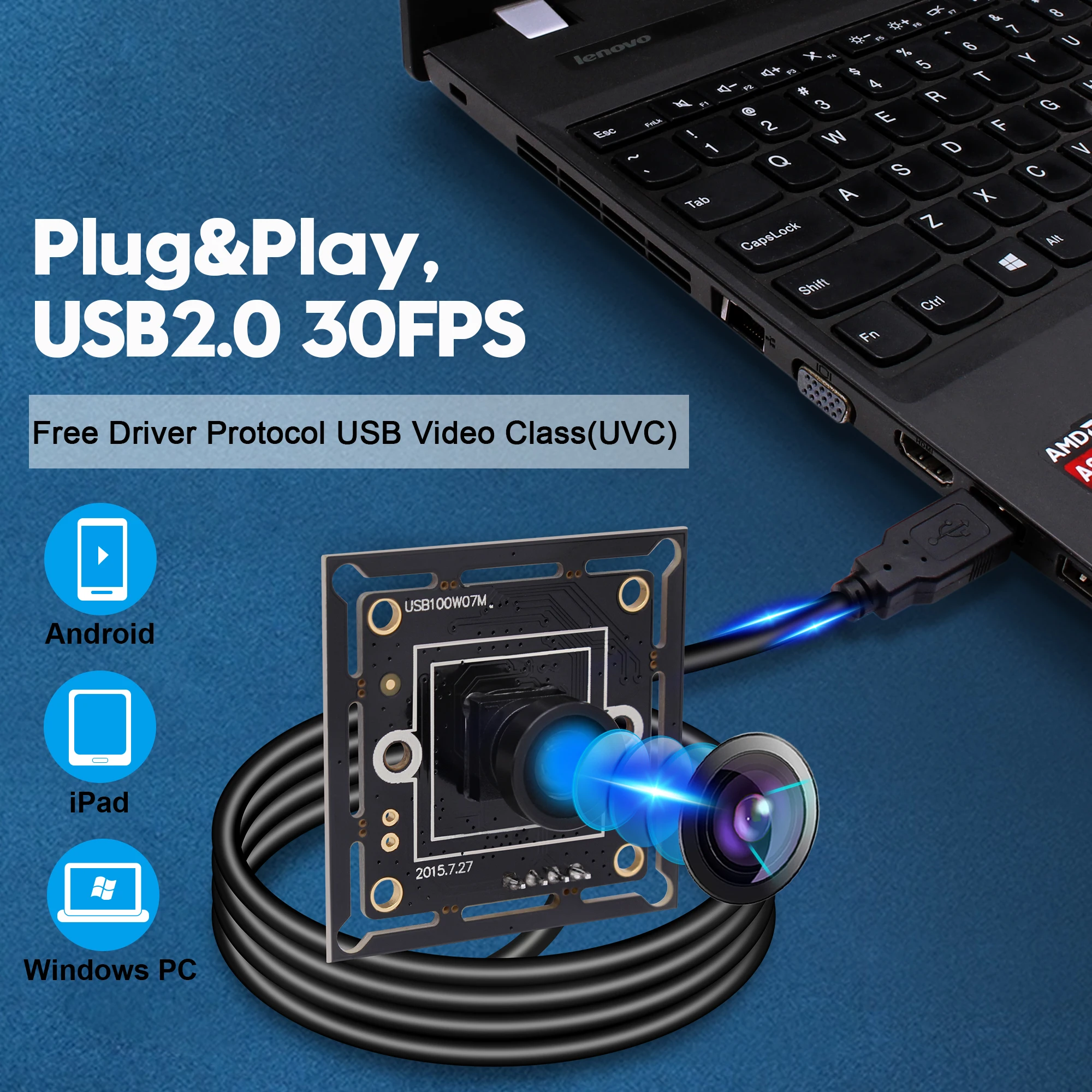

| Technology: | UVC usb camera |
| Type: | Video Camera |
| USB Protocal: | USB2.0 HS/FS, USB1.1 FS |
| UVC: | USB Video Class(UVC)1.1 |
| Video Compression Format: | MJPEG |
| Viewing Angle Degree: | 120° |
| Voltage: | DC 5V |
