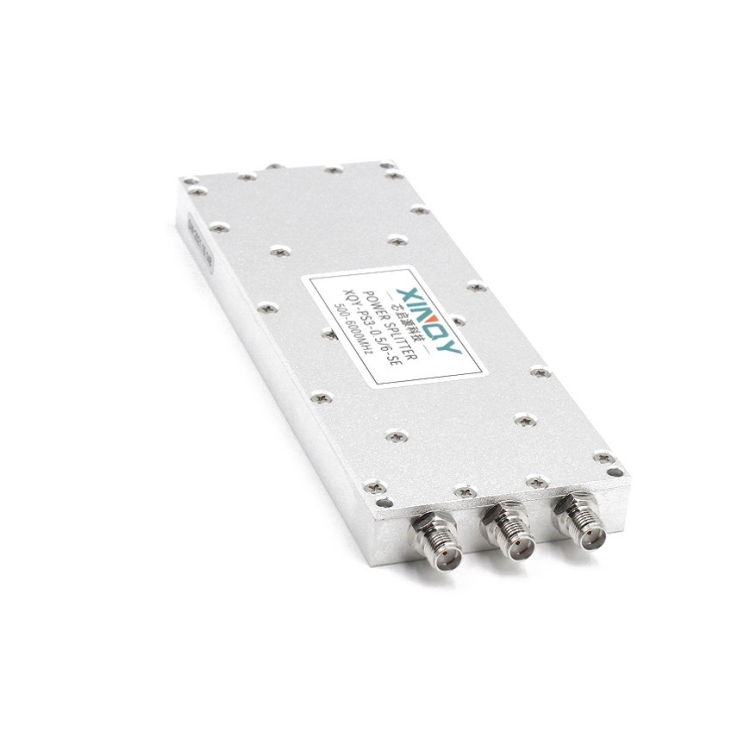

500~6000MHz SMA 1 To 3 Microstrip Power Splitter

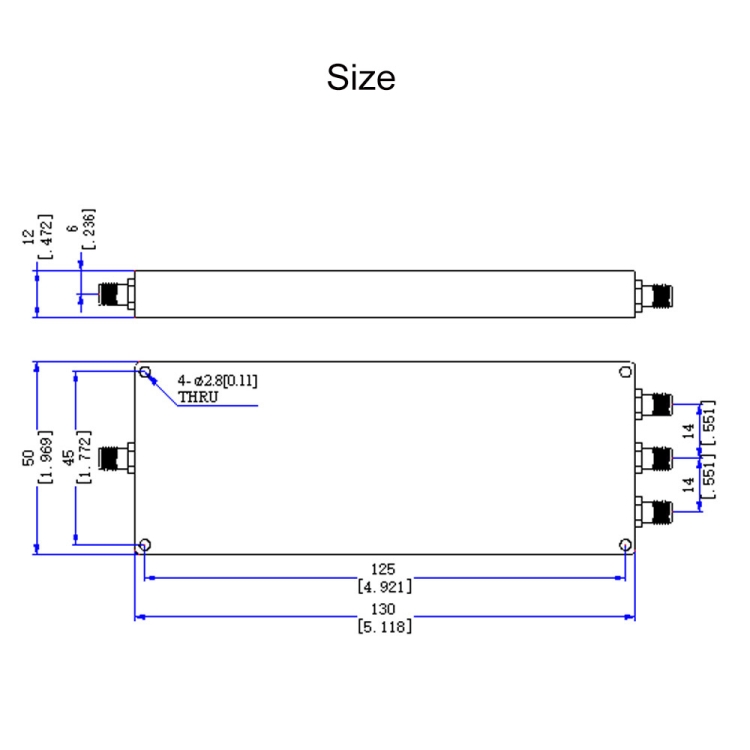

1. Impedance: 50 Ohms2. Phase balance: ±8 degrees3. Surface treatment: sandblasting guide4. Port connector: SMA-Female5. Low insertion loss, low standing wave, high isolation6. Working temperature: -35~+75 degrees celsius7. Frequency range: 500~6000MHz8. Amplitude balance: ±0.8dB9. Isolation: Typ.25dB / Min.20dB10. Input standing wave: Typ. 1.24/Max.1.411. Output standing wave: Typ. 1.18 / Max.1.312. Withstand power: 20W for splitter; 1W for combiner13. Insertion loss: less than or equal to 2.6dB (excluding theoretical loss of 4.8dB)14. Dimensions: 130x50x12mm15. Weight: 185g
