433mhz RF Receiver Learning Code Decoder Module 433 mhz Wireless 4 Channels output DIY kit For Remote Control 1527 encoding
sku: 33001285090
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$1.58
Shipping from: China
Technical Details
| Amount of storage remote controls: | 25 pieces |
| Brand Name: | Diese |
| Channel: | 4 |
| Channels: | 4 Channels |
| Frequency: | 433 MHz |
| Frequency Band: | -0.2MHz , +0.2MHz |
| Model Number: | RX480E |
| Output Current: | 10mA |
| Package: | Yes |
| Quiescent Current: | less than 5MA |
| Receiving Range: | above 15 meters (Open space) |
| Receiving sensitivity: | -108dB |
| Remote operating mode: | Momentary Mode / Toggle Mode / Latched Mode |
| RF Operating mode: | ASK superheterodyne wireless reception |

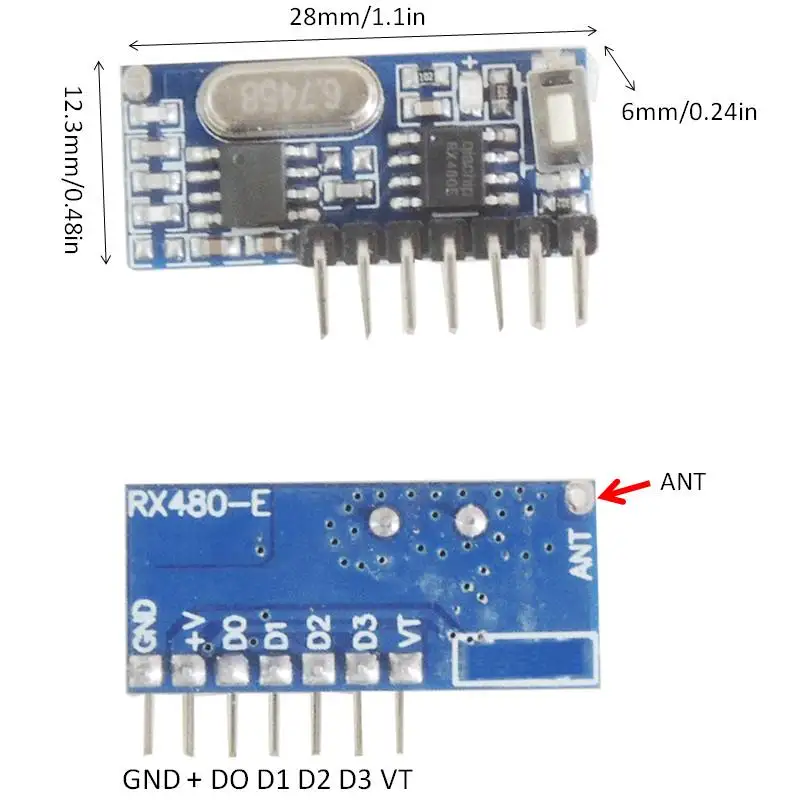

| Size: | 28*12.3*6 (mm) |
| Support APP: | No |
| Support encoding: | EV1527 Leaning code |
| Use: | Universal,Lighting,Electric Door,Automated curtains,Switch |
| Wireless Communication: | RF |
| Working Temperature: | -25~+75 degrees |
| Working voltage: | DC 3.3~5V |
